Page SAMSUNG TECHWIN 29 SM4 3 1 Head Ass’y (4/4)
Page
SAMSUNG TECHWIN
28
SM4
3
1
Head Ass’y (3/4)
Page
SAMSUNG TECHWIN
29
SM4
3
1
Head Ass’y (4/4)
Page
SAMSUNG TECHWIN
30
SM4
3
1

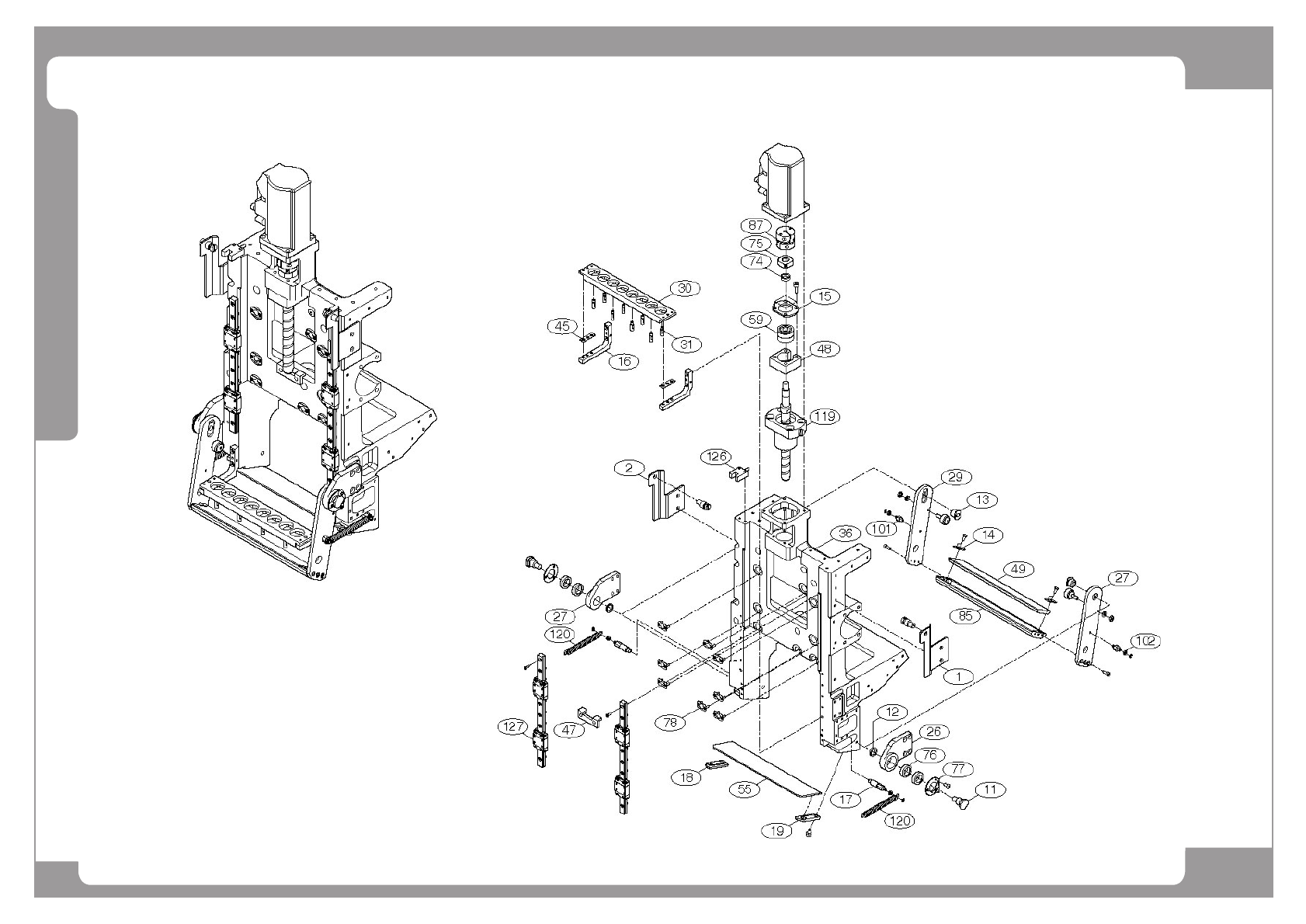

Head Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J90551246A SM431_HEAD_FLYCAM_ASSY 2
1 J71551302A EL_SPRING_BRACKET_L 1
2 J71551303A EL_SPRING_BRACKET_R 1
3 J70551414B Z_PULLEY_TENSION_PLATE 4
4 J70551416A MOTOR_BRACKET 1
5 J71551438A Z_SENSOR_DOG_P J71551438A 1
6 J70551425B TENSION_BKT_2 1
7 J70551426A TENSION_SPACER 1
8 J70551427B TENSION_PIN 1
9 J70551428B TENSION_BKT_1 1
10 J70551429A CAM 2
11 J70551438A MIRROR_SHAFT_1 1
12 J70551439A MIRROR_SPACER_2 1
13 J70551440A MIRROR_SHAFT_2 2
14 J70551441A MIRROR_CLAMP 2
15 J70551442A SUPPORT_UNIT_CAP 1
16 J70551443A REF_SUPPORT_1 2
17 J70551445A SPRING_POST_FIXED 1
18 J70551461A BEAM_SPLITTER_CLAMP_L 1
19 J70551462A BEAM_SPLITTER_CLAMP_R 1
20 J71551306A Z_BEARING_CAP 1
21 J71551307A THETA_PULLEY_BKT2 1
22 J71551308A THETA_PULLEY_BKT2_L 1
23 J71551309B THETA_NUT_PULLEY 1
24 J71551310A THETA_PULLEY_CAP 1
25 J71551311A THETA_PULLEY_BASE 1
26 J71551314A MIRROR_BKT_1 1
