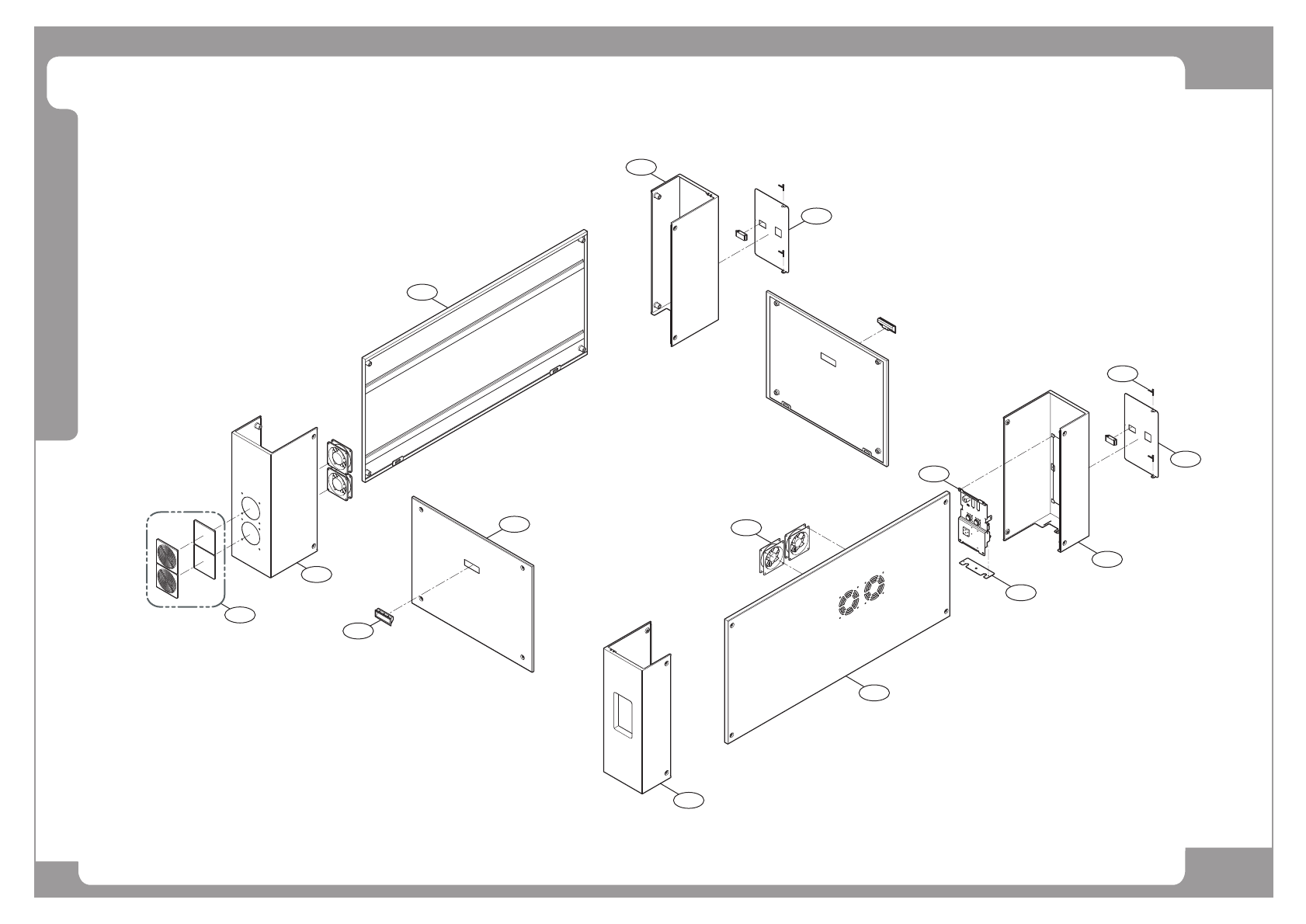

Page SAMSUNG TECHWIN 56 SM4 3 1 Cover Ass’y (3/3) 25 23 33 27 29 24 32 36 22 28 31 30 34 26 35
Page
SAMSUNG TECHWIN
55
SM4
3
1

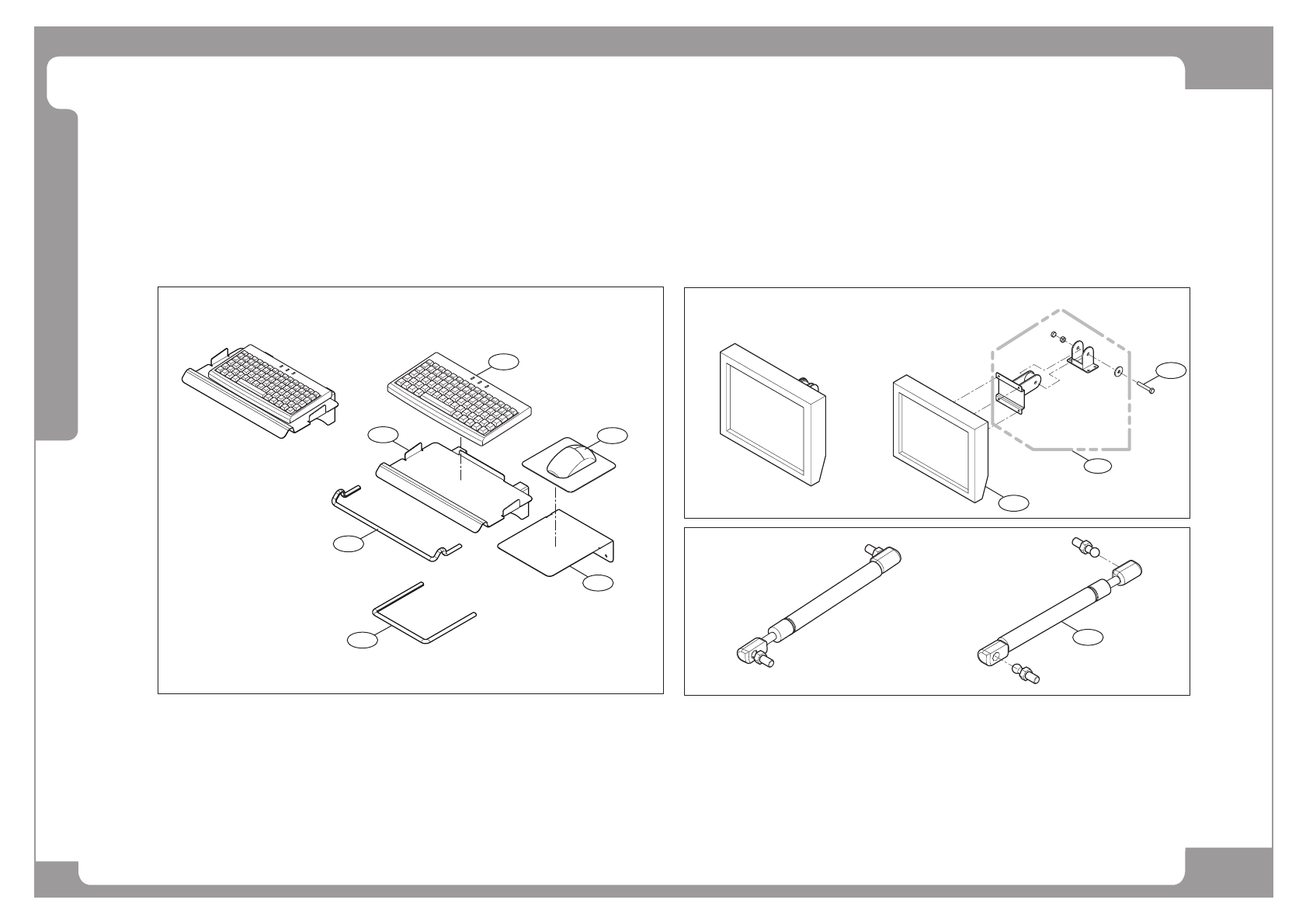

Cover Ass’y (2/3)
19
14
21
13
17
16
15
18
20
20
B. Monitor Ass'y
A. Key board
C. Gas Spring
Page
SAMSUNG TECHWIN
56
SM4
3
1
Cover Ass’y (3/3)
25
23
33
27
29
24
32
36
22
28
31
30
34
26
35
Page
SAMSUNG TECHWIN
57
SM4
3
1
Cover Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J90521044A ACRYL_DOOR_STD_ASSY 1
1 J70521213A LOWER_OP_PANEL-SM431 2
2 J70521237A CONNECTOR_BRACKET_OP 2
3 J70521262A CONVEYOR_COVER 2
4 J70521233B COVER_FRAME_BASE_R 2
5 J70521232A COVER_FRAME_BASE_L 2
6 J70521234A COVER_FRAME_STAND1 2
7 J70521235C COVER_FRAME_STAND2 2
8 J70521236A COVER_FRAME_TOP 2
9 J70521263A MONITOR_CABLE_COVER 2
10 J70521245A UPPER_SIDE_COVER_FR 1
11 J70521243B UPPER_COVER_FR 2
12 J70521246A UPPER_SIDE_COVER_FL 1
13 J53011005C 12INCH_MONITOR 2
14 J90991023A MONITOR_SUPPORT_ASSY 2
15 J6008805504 HEX CAP SCREW 2
16 J52011002A MINI_KEYBOARD 2
17 J70521240A KEYBOARD_BASE 2
18 J52021011A OPTICAL_MOUSE J52021011A 2
19 J70521241A MOUSE_BRACKET 2
20 J01031002A TRIMS-2 2
21 J67191056A GAS_SPRING 16
22 J6067402510 SPLIT_PIN 4
23 J70521247A LOWER_SIDE_COVER_FR 1
24 J70521248A LOWER_SIDE_COVER_FL 1
25 J70521250A LOWER_COVER_FR 1
26 J70521251B LOWER_COVER_FL 1
