Page SAMSUNG TECHWIN 62 SM4 3 1 Electric Panel Ass’y (1/2) 11 14 12 14 13 13 15
Page
SAMSUNG TECHWIN
61
SM4
3
1
Electric Panel Ass’y (1/2)
2
6
4
10
10
5
1
3
7
8
9
6
Page
SAMSUNG TECHWIN
62
SM4
3
1

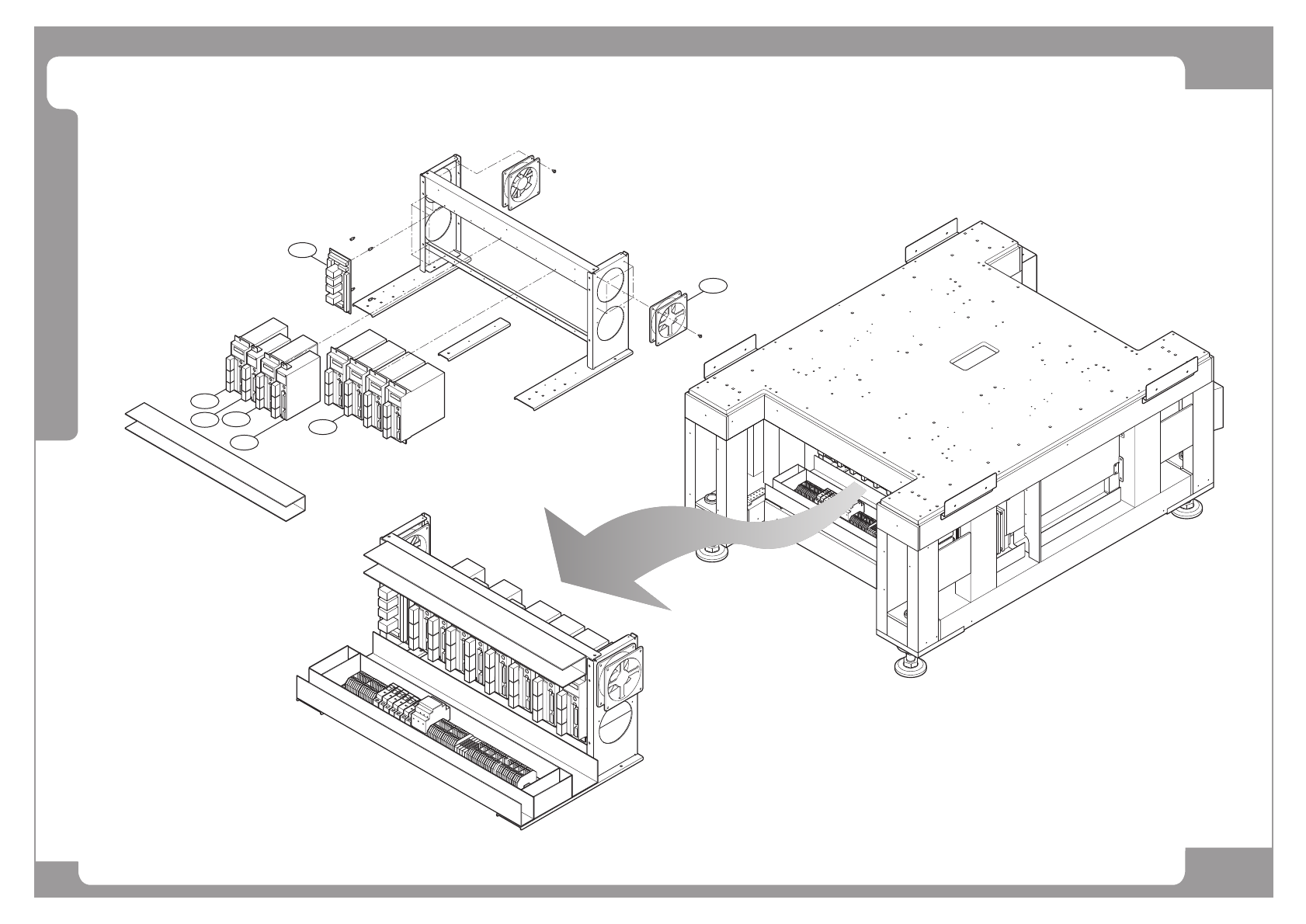

Electric Panel Ass’y (1/2)
11
14
12
14
13
13
15
Page
SAMSUNG TECHWIN
63
SM4
3
1
Electric Panel Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J91691003A REAR_ELECTRIC_PANEL_ASSY 1
1 J3501040A MAGNETIC CONTACTOR 1
2 J3603015A CIRCUIT PROTECTOR 2
3 J3603016A CIRCUIT PROTECTOR 1
4 J3601018A FUSE 3
5 J3601019A FUSE 2
6 J3716042A STOPPER 2
7 J3716044A TEMINAL BLOCK 63
8 J3716046A END PLATE 11
9 J3716047A CROSS CONNECTION 6
10 J3716067A FUSE TERMINAL BLOCK 5
11 J91741194A SAFETY_FROP_BOARD_ASSY 1
12 J3153056A SERVO MOTOR DRIVER(750W) 4
13 J31531019A SERVO_MOTOR_DRIVER 2
14 J3153055A SERVO MOTOR DRIVER(100W) 2
15 J3105010A COOLING FAN 1
