Page SAMSUNG TECHWIN 68 SM4 3 1 Electric Device Ass’y NO. LEVEL P ART NO. P ART NAME Q'TY TYPE Old No. Stock Apply Reference A-1 J91681013 A SM431_ELECTRIC_DEV ICE_ASSY 1 1 J3403082A EMERGENCY SWITCH A SSY[704.075.2…
Page
SAMSUNG TECHWIN
67
SM4
3
1

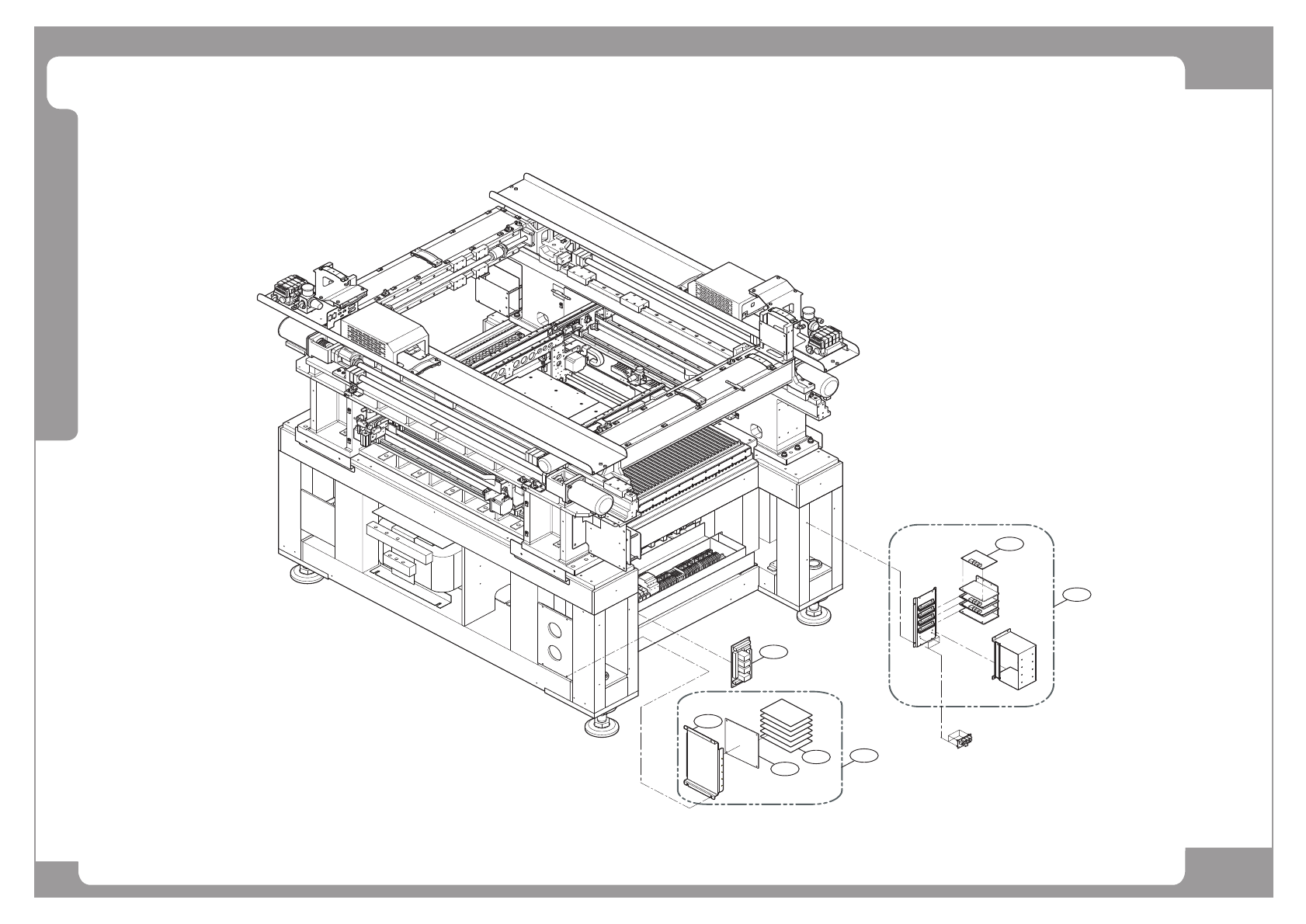

Electric Device Ass’y (4/4)
37
35
41
42
36
43
44
Page
SAMSUNG TECHWIN
68
SM4
3
1
Electric Device Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J91681013A SM431_ELECTRIC_DEVICE_ASSY 1
1 J3403082A EMERGENCY SWITCH ASSY[704.075.2(EM)] 1
2 J70521212A OP_PANEL-SM431 1
3 J71521015B BUTTON_CAP 1
4 J34031051A ULTRA_BRIGHT_LED_RED L5,5K24UR 1
5 J34031050A ULTRA_BRIGHT_LED_GREEN L5,5K24UG 1
6 J34031049A ULTRA_BRIGHT_LED_WHITE L5,5K24UW 3
7 J34031052A ULTRA_BRIGHT_LED_YELLOW L5,5K24UY 1
8 J90833071A SAFEGUARD OVERRIDE SW CABLE ASSY 1
9 J3406005A LOAD SWITCH 1
10 J47131010A TOWER_LAMP 1
11 J90833142A AIR_INDICATOR_CABLE_ASSY 1
12 J70521259A AIR_FILTER_ASSY_PLATE 1
13 J6404001A DOOR KEY 2
14 J34091002A SAFETY_DOOR_SWTICH 2
15 J70521264A DOOR_SENSOR_BRACKET 2
16 J3713061A CONNECTOR 1
17 J7152027A GROUND TERMINAL 1
18 J90832930A INLINE_BEFORE_CABLE_ASSY 1
19 J90832931A INLINE_AFTER_CABLE_ASSY 1
20 J36031004A MAIN_CIRCUIT_BREAKER 1
21 J70521258B POWER_PANEL_R 1
22 J91741165A DOCKING_IO_BOARD 2
23 J91741071A FEEDER_INPUT_EXT_BOARD 2
24 J29011001A NOISE_FILTER 1
25 J26051007A TRANSFORMER 1
26 J90601049A SM431_AXIS_SENSOR_BOARD 1
Page
SAMSUNG TECHWIN
69
SM4
3
1
Electric Device Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
27 J44011011A SM411F_POWER_SUPPLY_STW400-S 4
28 J70511040A POWER_SUPPLY_BRACKET 4
29 J70511045A POWER_SUPPLY_STAND 1
30 J90601045A SM431_VISION_IF_BOARD 1
31 J70541252A DRIVER_BOX_BASE 1
32 J70541251A DRIVER_BOX_COVER 1
33 J91741208A SEDES_SLAVE_M_BOARD 1
34 J31531003A MINI_AMP 5
35 J91741328A CONVEYOR_STEP_MOTOR_DRIVER_ASSY MD2B-44M 1
36 J31521023A STEP_MOTOR_DRIVER_4AXIS MD2B-4X 4
37 J91741194A SAFETY_FROP_BOARD_ASSY 1
38 J91741076A CONV_SUB_IF_BOARD 1
39 J91741049B CAN_CONVEYOR_BOARD 1
40 J90601048A SM431_CONVEYOR_SENSOR_IF_BOARD 2
41 J91741219A CLOSE_STEP_DRIVER_BOARD_ASSY STEBRO-BS4- 1
42 J70601009A STEP_DRIVER_BOARD_BRACKET 1
43 J91741206A SM431_STEP_SLAVE_BOARD 1
44 J91741205B SM431_STEP_MOTOR_DRIVER_BOARD 6
