Section 3 Location of Sensors and Loads

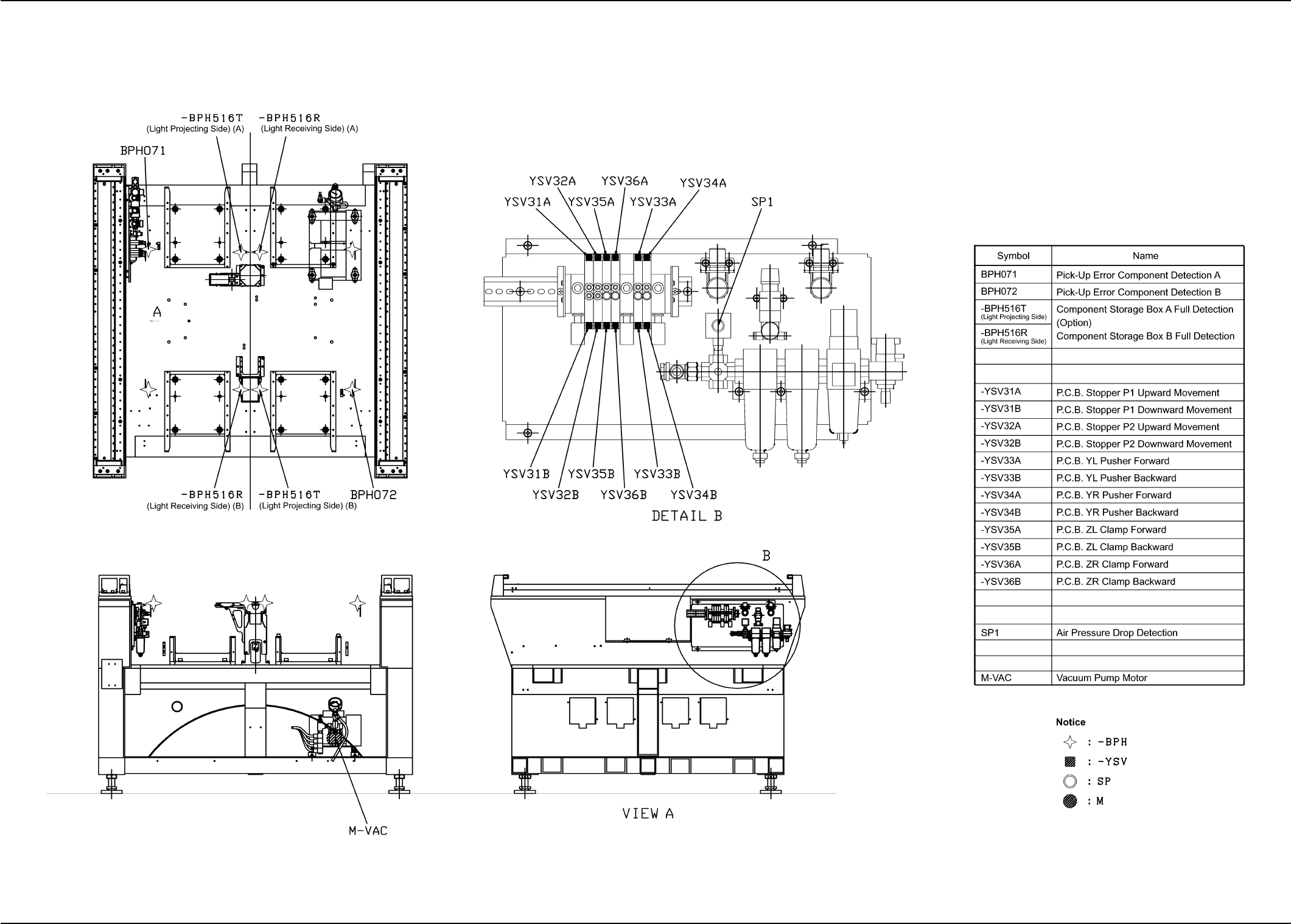

Layout of Sensors and Loads (Base Frame)
0206-002A(M750JB---2101) 3-1 AHB01EMTP
Section 3 Location of Sensors and Loads
0107-001-(M750JC---2101) 3-2 AHB01EMTP

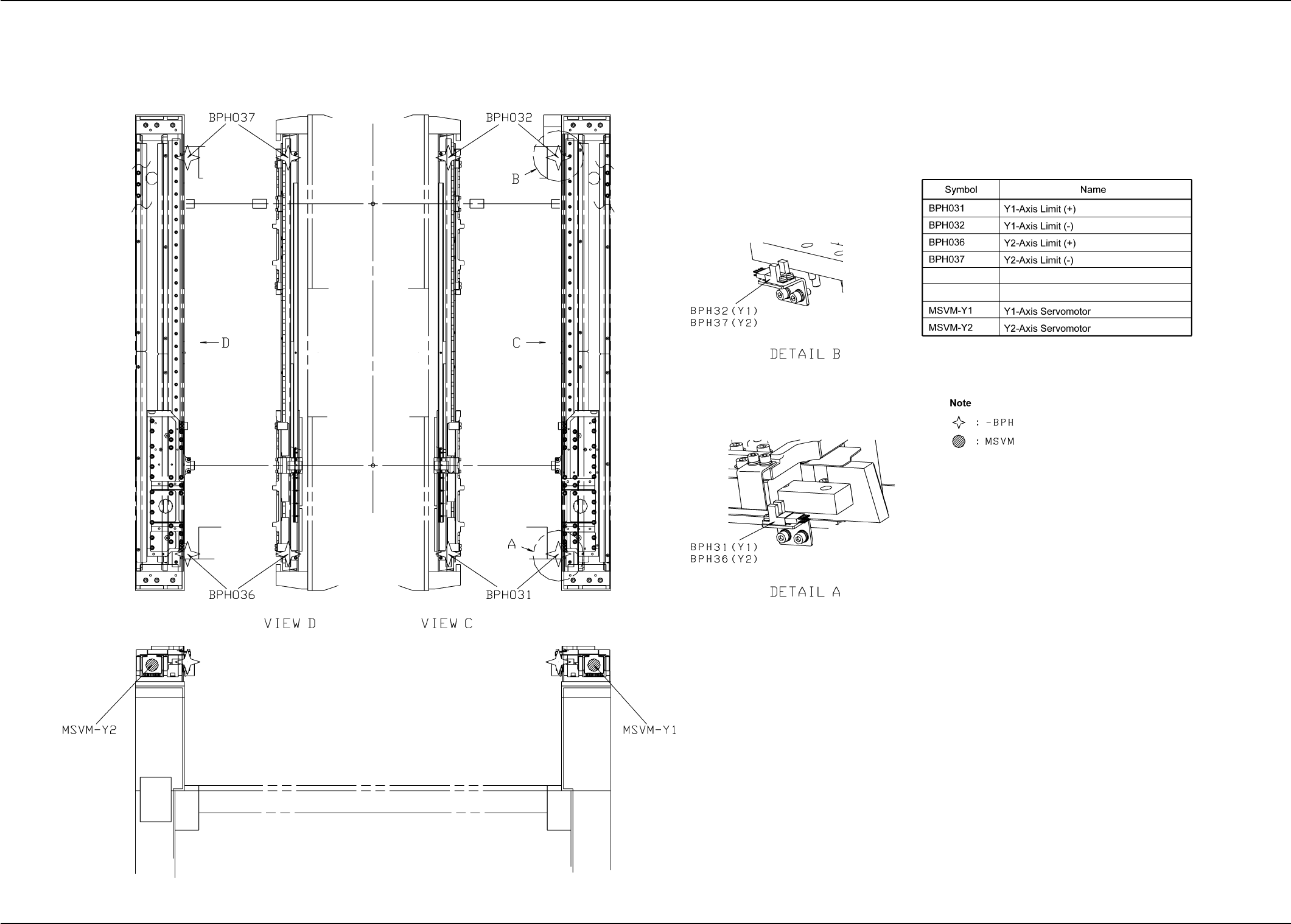

Layout of Sensors and Loads (Beam (Y Axis))
Section 3 Location of Sensors and Loads
0107-001-(M750JC---2102) 3-3 AHB01EMTP

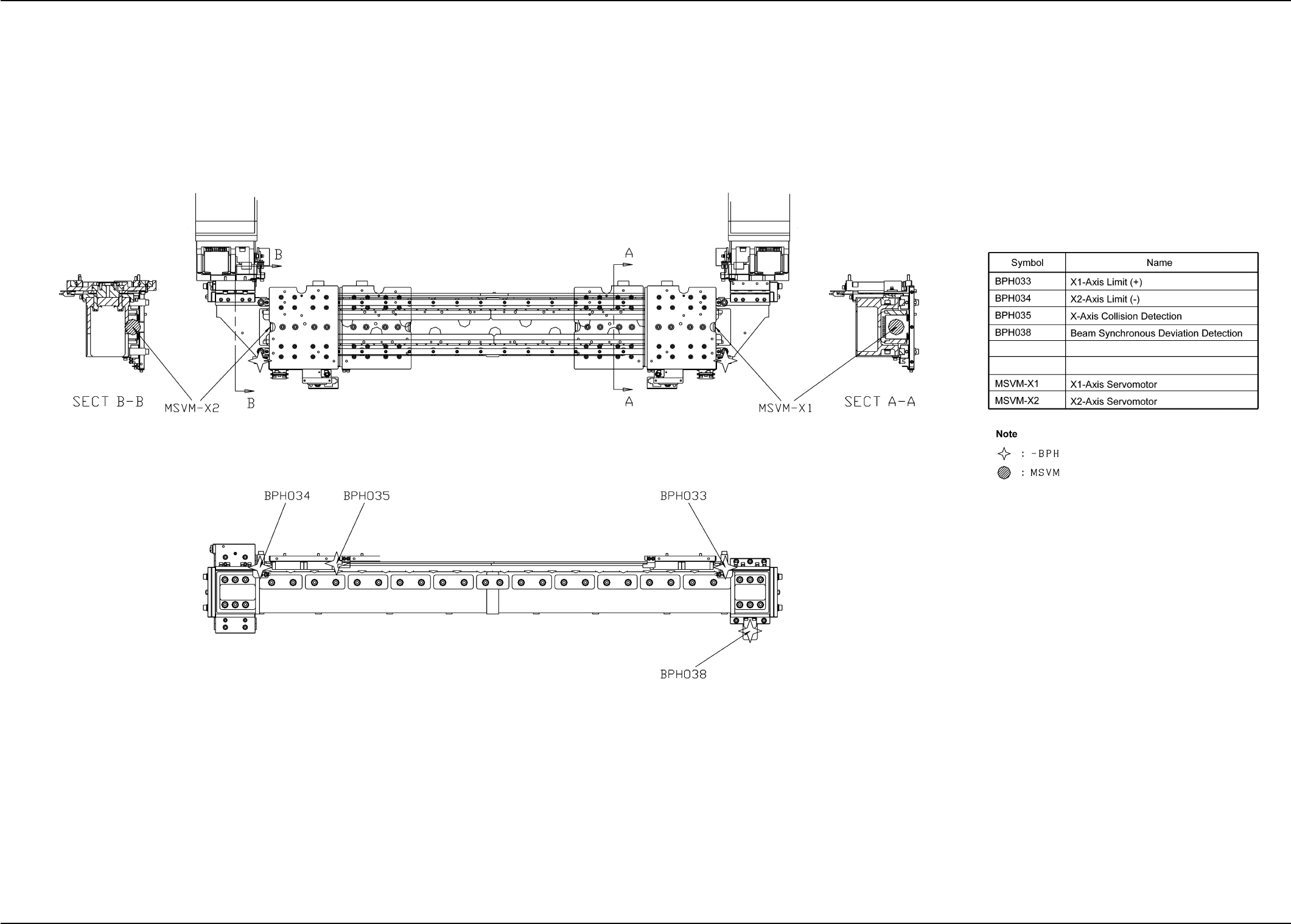

Layout of Sensors and Loads (Beam (X Axis))
