Section 4 Electrical Circuit Diagrams 01 12-002B(M750WD---2104) 4-16 AHB01EMTP I/O Board ILB2 (2/2)

Section 4 Electrical Circuit Diagrams

0112-002B(M750WD---2103) 4-15 AHB01EMTP

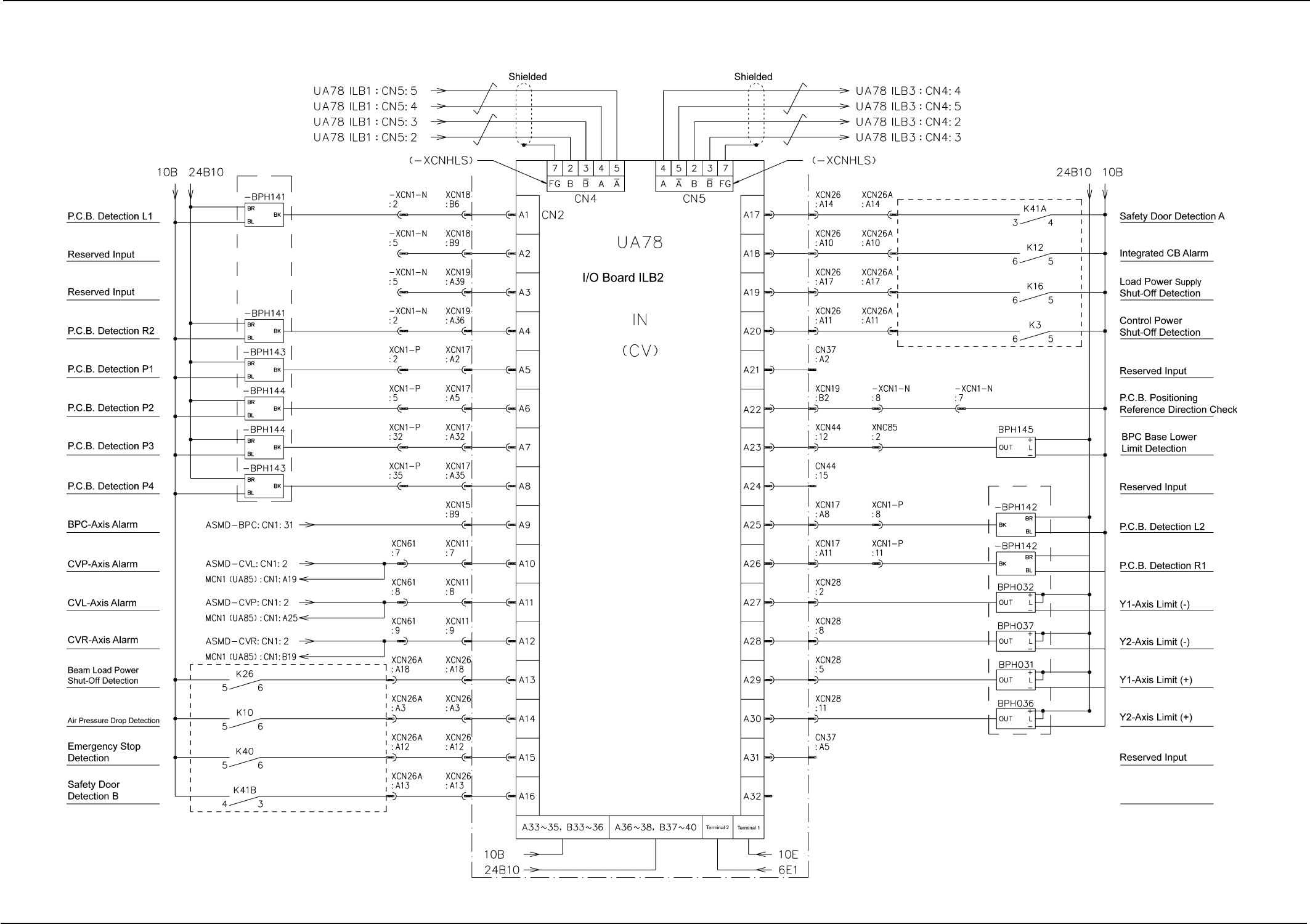

I/O Board ILB2 (1/2)

Section 4 Electrical Circuit Diagrams

0112-002B(M750WD---2104) 4-16 AHB01EMTP

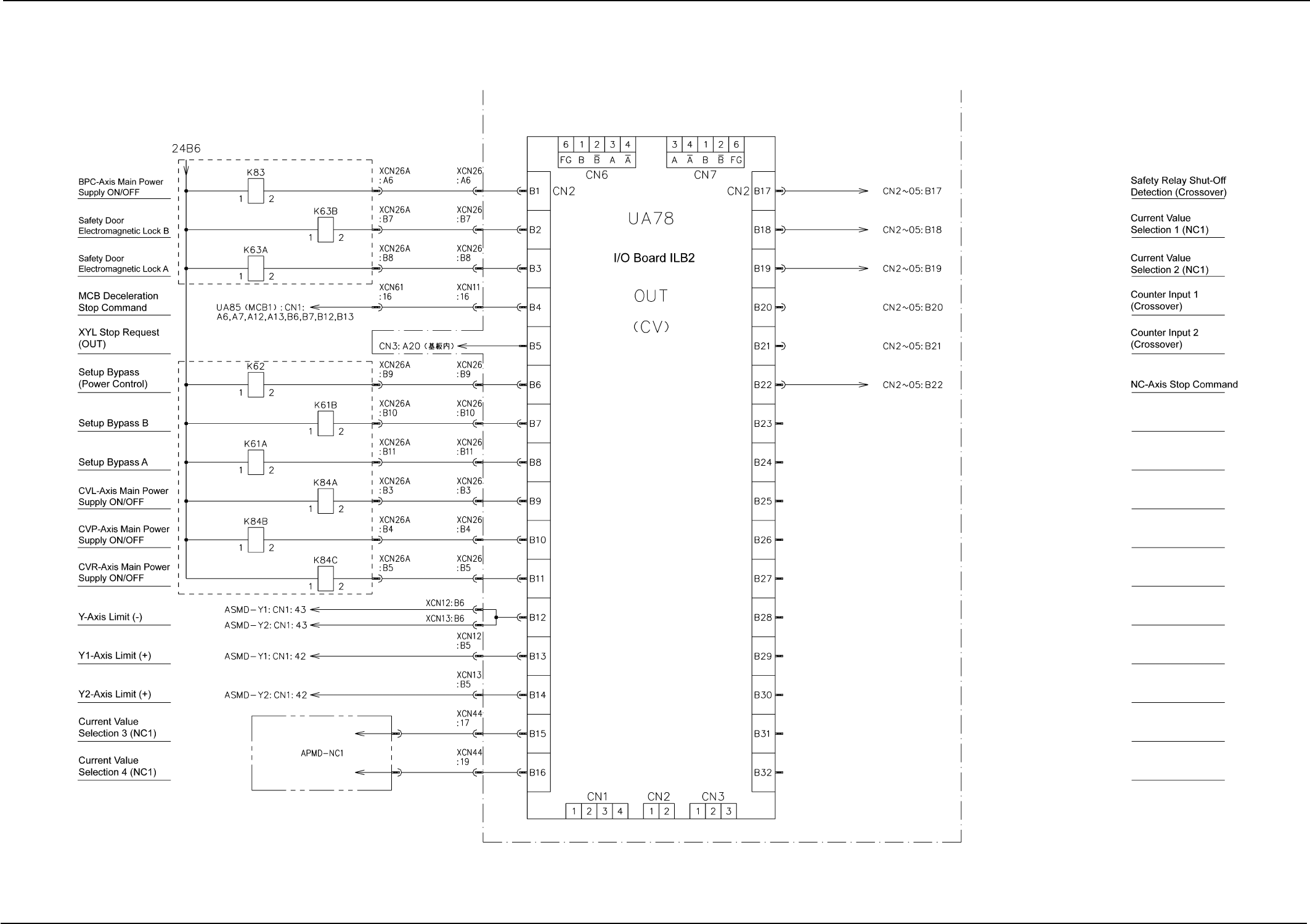

I/O Board ILB2 (2/2)

Section 4 Electrical Circuit Diagrams

0206-002B(M750WD---2105) 4-17 AHB01EMTP

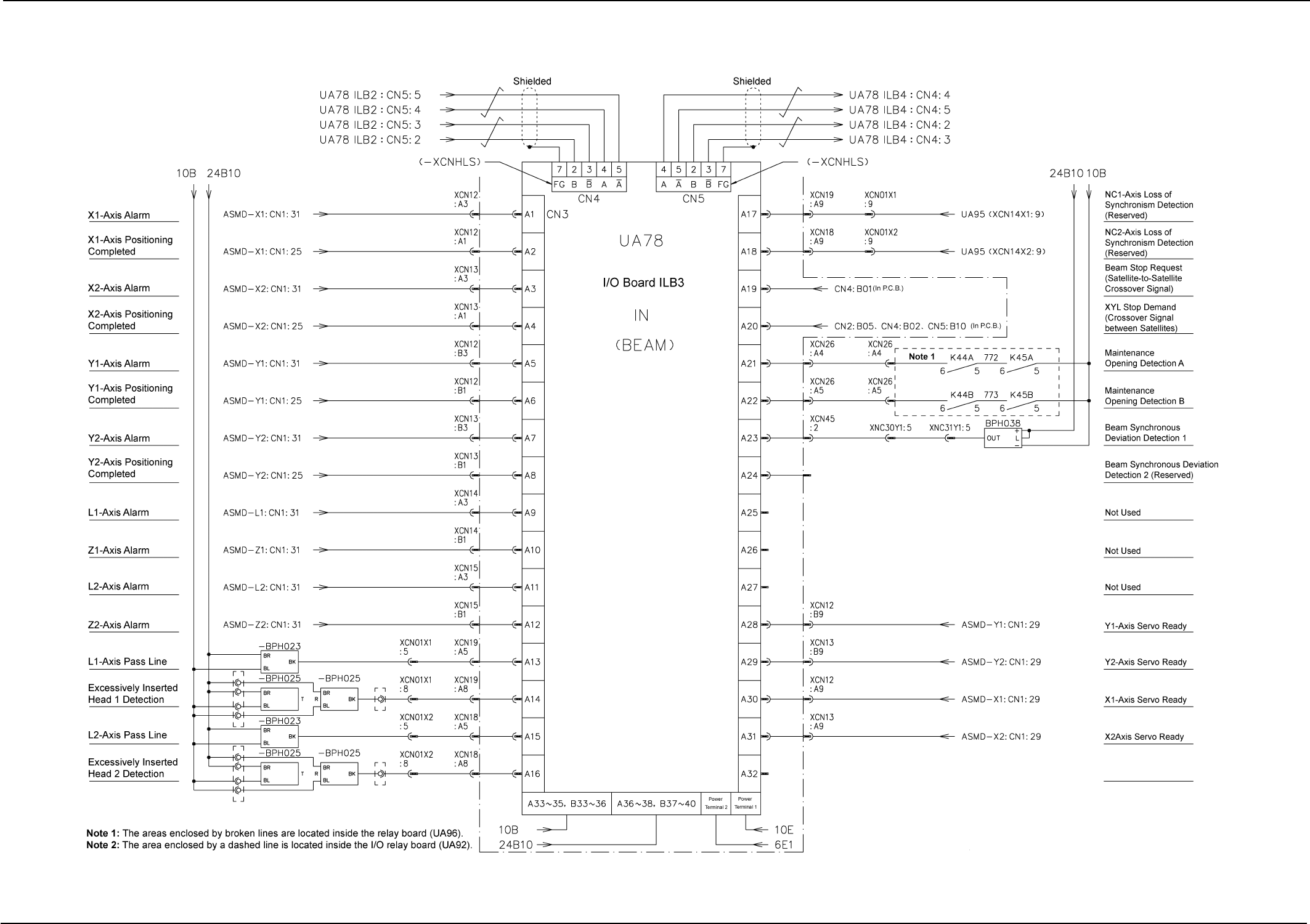

I/O Board ILB3 (1/2)
