Section 4 Electrical Circuit Diagrams 0107-001-(M750WH---2102) 4-34 AHB01EMTP X1- and X2-Axis Motor Circuit Diagram

100%1 / 107
Section 4 Electrical Circuit Diagrams
0107-001A(M750WH---2101) 4-33 AHB01EMTP

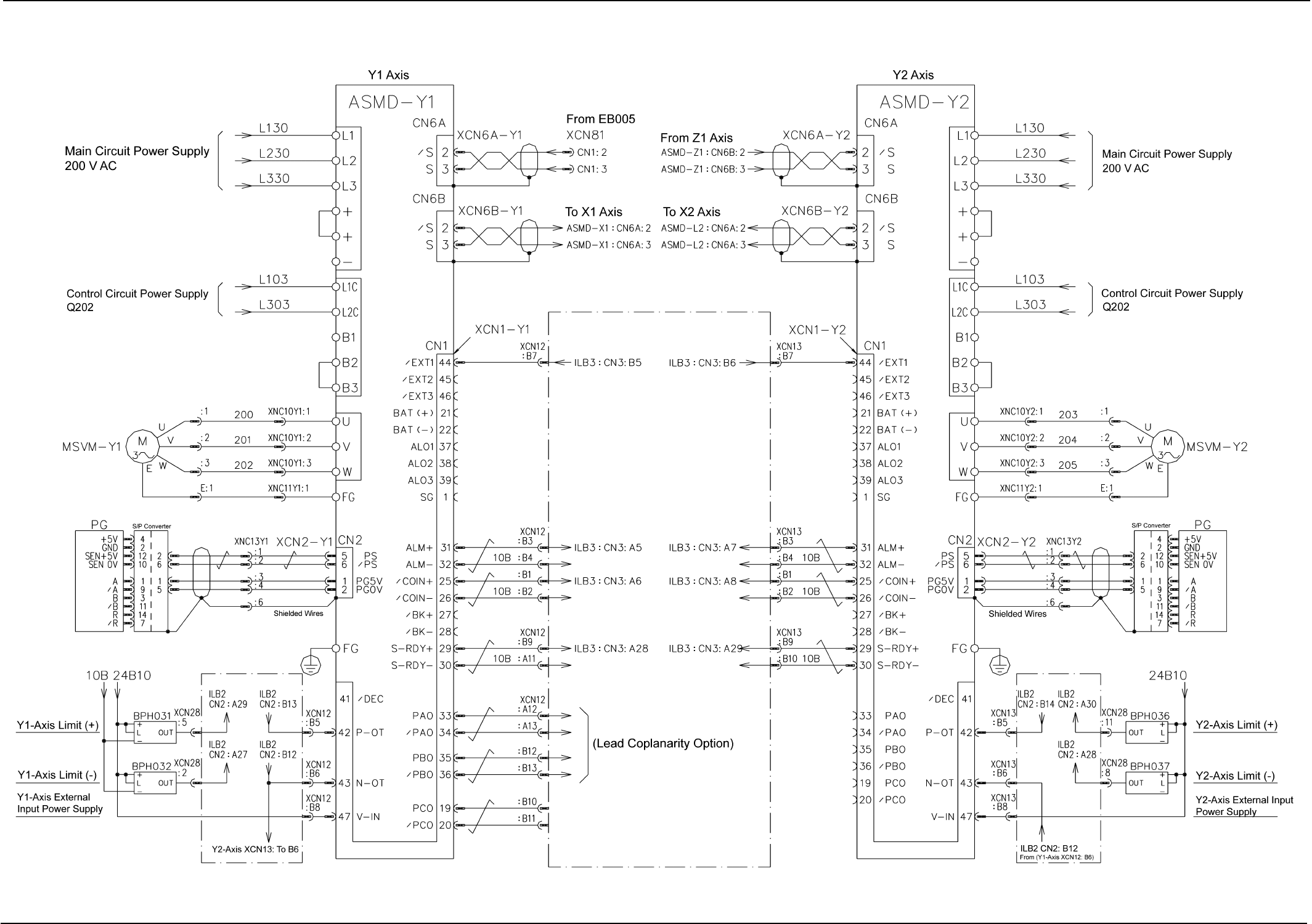

Y1- and Y2-Axis Motor Circuit Diagram
Section 4 Electrical Circuit Diagrams
0107-001-(M750WH---2102) 4-34 AHB01EMTP

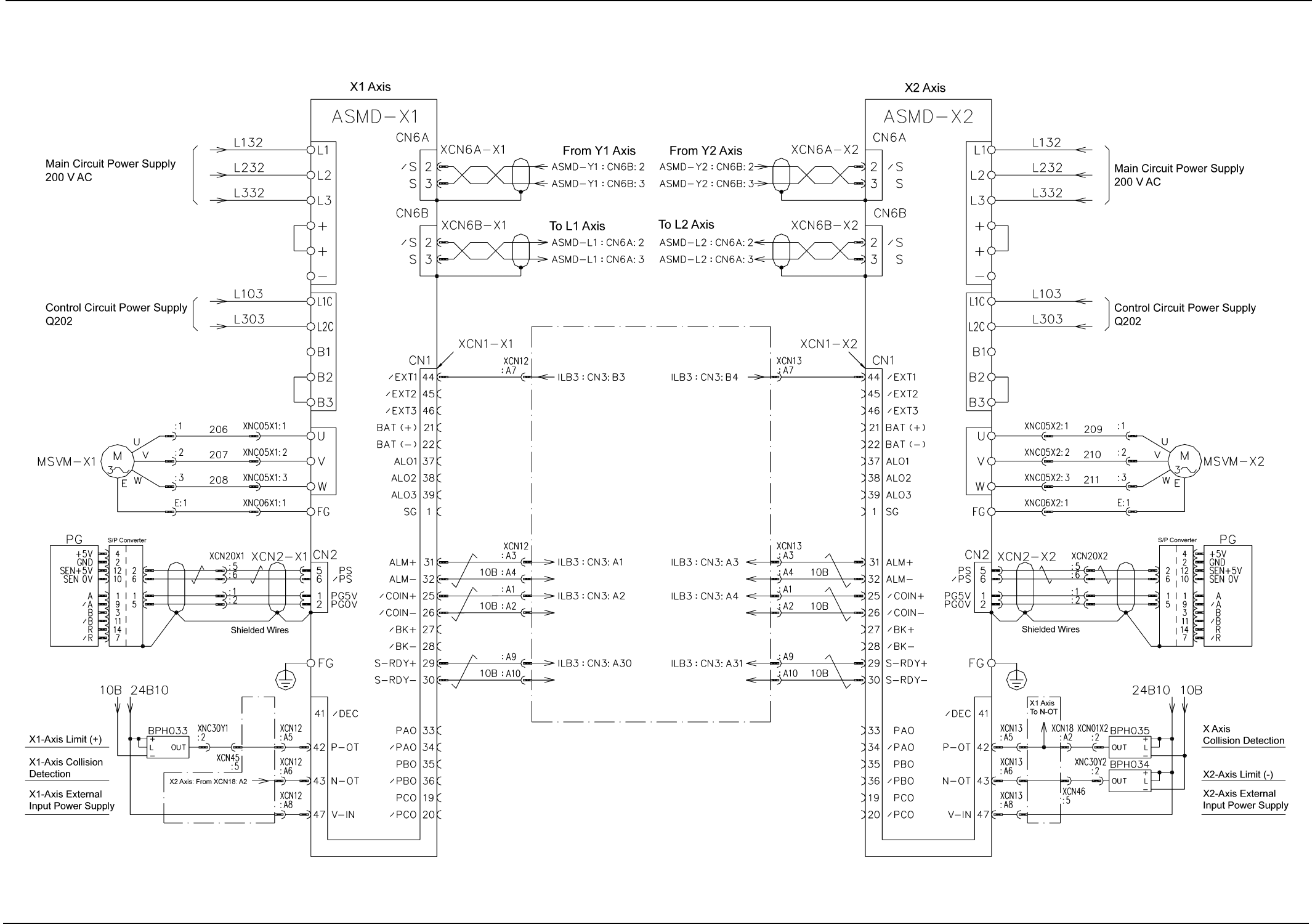

X1- and X2-Axis Motor Circuit Diagram
Section 4 Electrical Circuit Diagrams
0107-001A(M750WH---2103) 4-35 AHB01EMTP
L1- and L2-Axis Motor Circuit Diagram
