Section 4 Electrical Circuit Diagrams 0308-002 A(M750WR---2101) 4-47 AHB01EMTP Beam 1 (Right) Beam 2 (Left) Movable Recognition Camera 2 (Left) Shielded Shielded Shielded Shielded Shielded Shielded P .E.C. Recognition Ca…
Section 4 Electrical Circuit Diagrams
Detailed View of Slip Ring Section
0308-004 C(M750WM---2102) 4-46 AHB01EMTP
F
rom Relay Board (UA95)
Vacuum Valve
Vacuum Breaker Valve
Vacuum Sensor (Analog)
NC-Axis Cam Origin
Excessively Inserted
Nozzle Detection
NC-Axis Motor Origin
Slip Ring
NC-Axis
Motor Origin
Vacuum Valve
Vacuum Breaker Valve
Vacuum Sensor (Analog)
Reserved Sensor
Reserved Power Supply
NC-Axis Cam Origin
Excessively Inserted
Nozzle Detection
NC-Axis Motor Origin
NC-Axis Pulse Motor
NC-Axis Pulse Motor
Sensor Head Minus Common
Sensor Head Plus Common
NC-Axis Loss of
Synchronism Detection
Section 4 Electrical Circuit Diagrams
0308-002 A(M750WR---2101) 4-47 AHB01EMTP
Beam 1 (Right)
Beam 2 (Left)
Movable Recognition
Camera 2 (Left)
Shielded Shielded Shielded
Shielded
Shielded
Shielded
P.E.C. Recognition
Camera 2 (Left)
Recognition Board UA60
Shielded Shielded Shielded
Movable Recognition
Camera 1 (Right)
Shielded
Shielded
Shielded
P.E.C. Recognition
Camera 1 (Right)
Recognition Board Connection Diagram 1
Section 4 Electrical Circuit Diagrams
CM-5010 Large View for Fixed Recognition Camera (Monocular Scope)
Recognition Board UA60
Fixed Recognition Camera A1
Shielded
Note 1: CM-5010 must be mounted on the rear side (B) as a standard selection.
0308-002 B(M750WR---2102) 4-48 AHB01EMTP

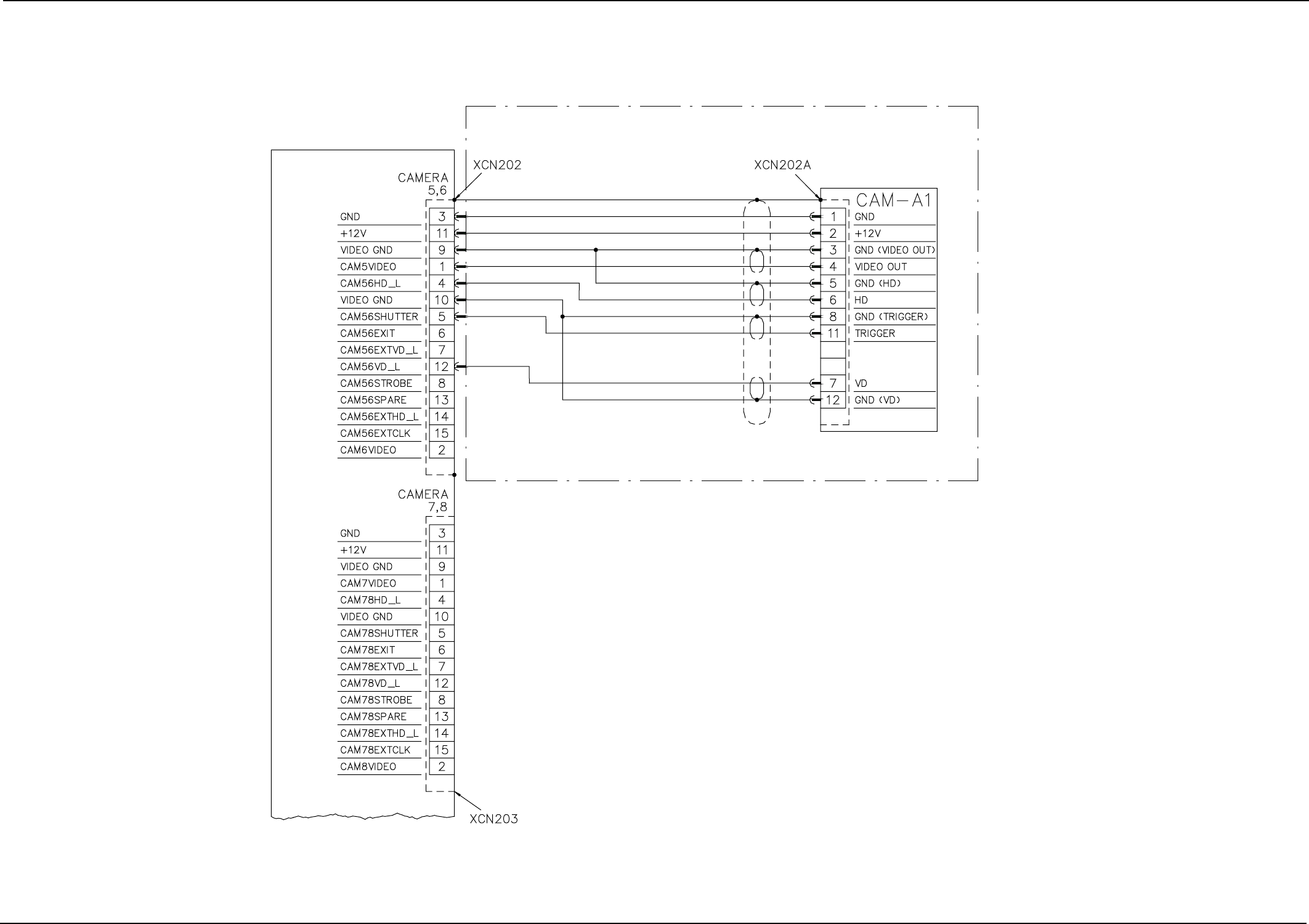

Recognition Board Connection Diagram 2
