Section 4 Electrical Circuit Diagrams 0206-001-(M750WUC--2101) 4-50 AHB01EMTP Recognition Board Connection Diagram (CM-501 1) (Option)
Section 4 Electrical Circuit Diagrams
0308-002 B(M750WR---2103) 4-49 AHB01EMTP
LED Lighting Control
Board UA75
LED Lighting Control
Board UA75
Video Capture Board
UA84
Shielded
Recognition Board UA60
Relay Board UA92
Image Capture
Signal 1
Image Capture
Signal 2

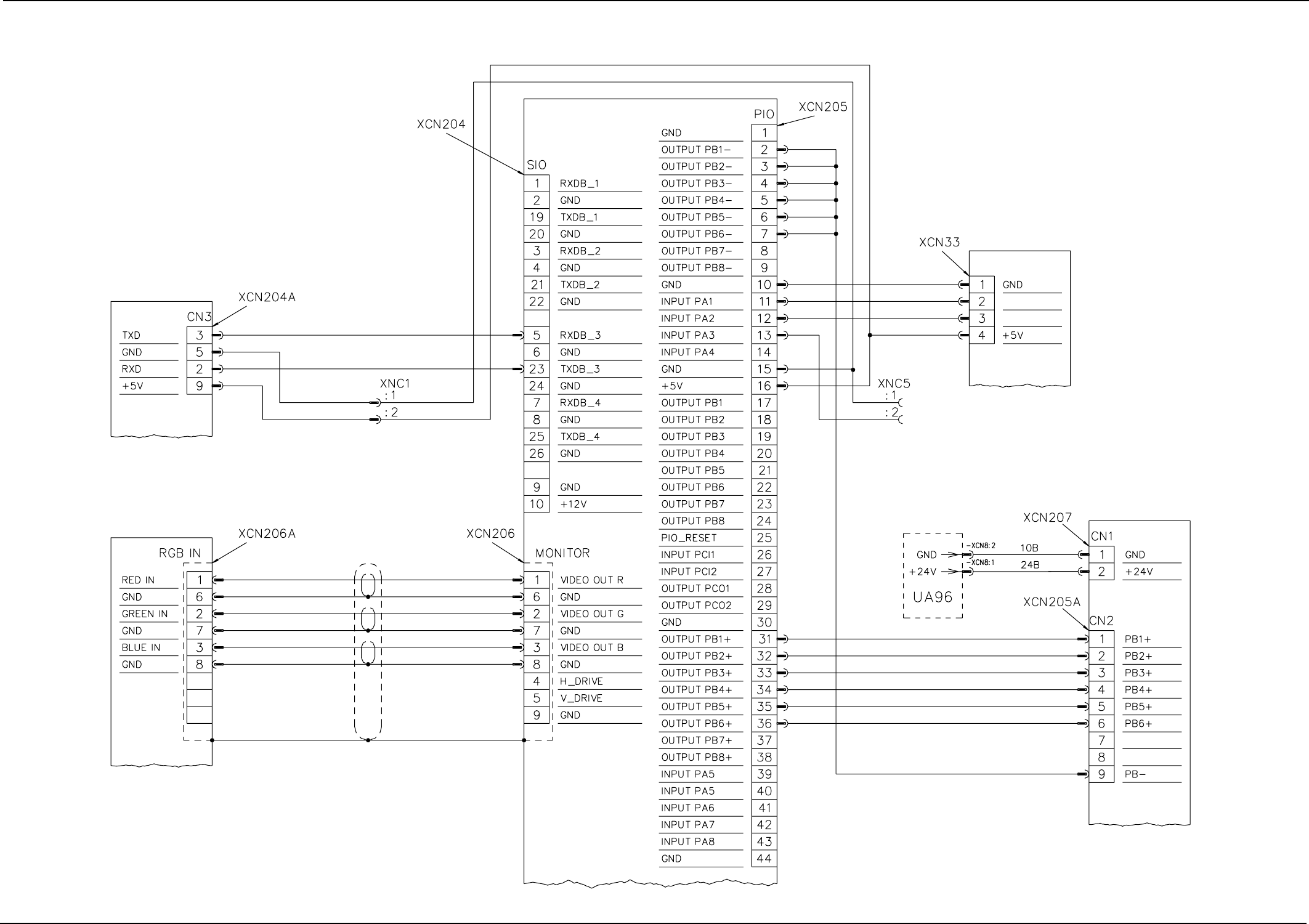

Recognition Board Connection Diagram 3
Section 4 Electrical Circuit Diagrams
0206-001-(M750WUC--2101) 4-50 AHB01EMTP
Recognition Board Connection Diagram (CM-5011) (Option)
Section 4 Electrical Circuit Diagrams
0308-002 -(M750WR---2104) 4-51 AHB01EMTP
Movable Recognition
Lighting 1 (Right)
Front Lighting
(Center)
Front Lighting
(Lower)
Back Lighting 1
Back Lighting 2
Back Lighting 3
Back Lighting 4
Front Lighting
(Upper) 1
Front Lighting
(Upper) 2
Front Lighting
(Upper) 3
Front Lighting
(Upper) 4
P.E.C. Recognition
Lighting 1
P.E.C. Recognition
Lighting 1 (Right)
Shielded
Shielded
Beam 1 (Right)
Movable Recognition
Lighting 2 (Left)
Front Lighting
(Center)
Front Lighting
(Lower)
Back Lighting 1
Back Lighting 2
Back Lighting 3
Back Lighting 4
Front Lighting
(Upper) 1
Front Lighting
(Upper) 2
Front Lighting
(Upper) 3
Front Lighting
(Upper) 4
P.E.C. Recognition
Lighting 1
P.E.C. Recognition
Lighting 2 (Left)
Beam 2 (Left)
LED Lighting Control Board UA75
Fixed Recognition
Lighting (Rear Side)
Offset Lighting
Front Lighting (Middle) 1
Front Lighting (Middle) 2
Front Lighting (Middle) 3
Front Lighting (Middle) 4
Front Lighting (Lower) 1
Front Lighting (Lower) 2
Front Lighting (Lower) 3
Back Lighting 1
Back Lighting 2
Back Lighting 3
Back Lighting 4
Front Lighting (Upper) 1
Front Lighting (Upper) 2
Front Lighting (Upper) 3
Front Lighting (Upper) 4
ML-M1
EL-P1
EL-M2
EL-P2
LED Lighting Control Board Connection Diagram
