1 Introduction

1.3 Staff qualifications and training

10 Service Manual SIPLACE Head Care Station II 11/2019

1.3 Staff qualifications and training

Qualified or adequately trained personnel means that these people are familiar with the setting up,

operation and maintenance of the machine and the add-on devices and are suitably qualified, e.g.:

●

Have been trained, instructed or authorized to switch on and off, isolate, earth and identify

electrical circuits and system components in accordance with normal safety standards.

●

Have been trained or instructed in the upkeep and use of appropriate safety equipment in

accordance with normal safety standards.

●

Have received first aid training.

1.4 Abbreviations

Abbreviations Description

C&P Collect&Place

C&P12, CP12 Collect&Place head with 12 segments

C&P20, CP20 Collect&Place head with 20 segments

C&P6, CP6 Collect&Place head with 6 segments

CPP Collect&Pick&Place head

CPx Collective term for CPP, CP20, CP12 and/or CP6

ESD Electrostatic sensitive device

EMC Electromagnetic compatibility

FHE Fast Head Exchange

HCSII Head Care Station II

PCB Board

P&P Pick&Place

TH TwinHead

VS Vision system type

ID Intermediate distributor

ID1, ID2 Intermediate distributor 1, intermediate distributor 2

2 Spare parts overview

2.1 HCSII Head Unit

Service Manual SIPLACE Head Care Station II 11/2019 11

2 Spare parts overview

2.1 HCSII Head Unit

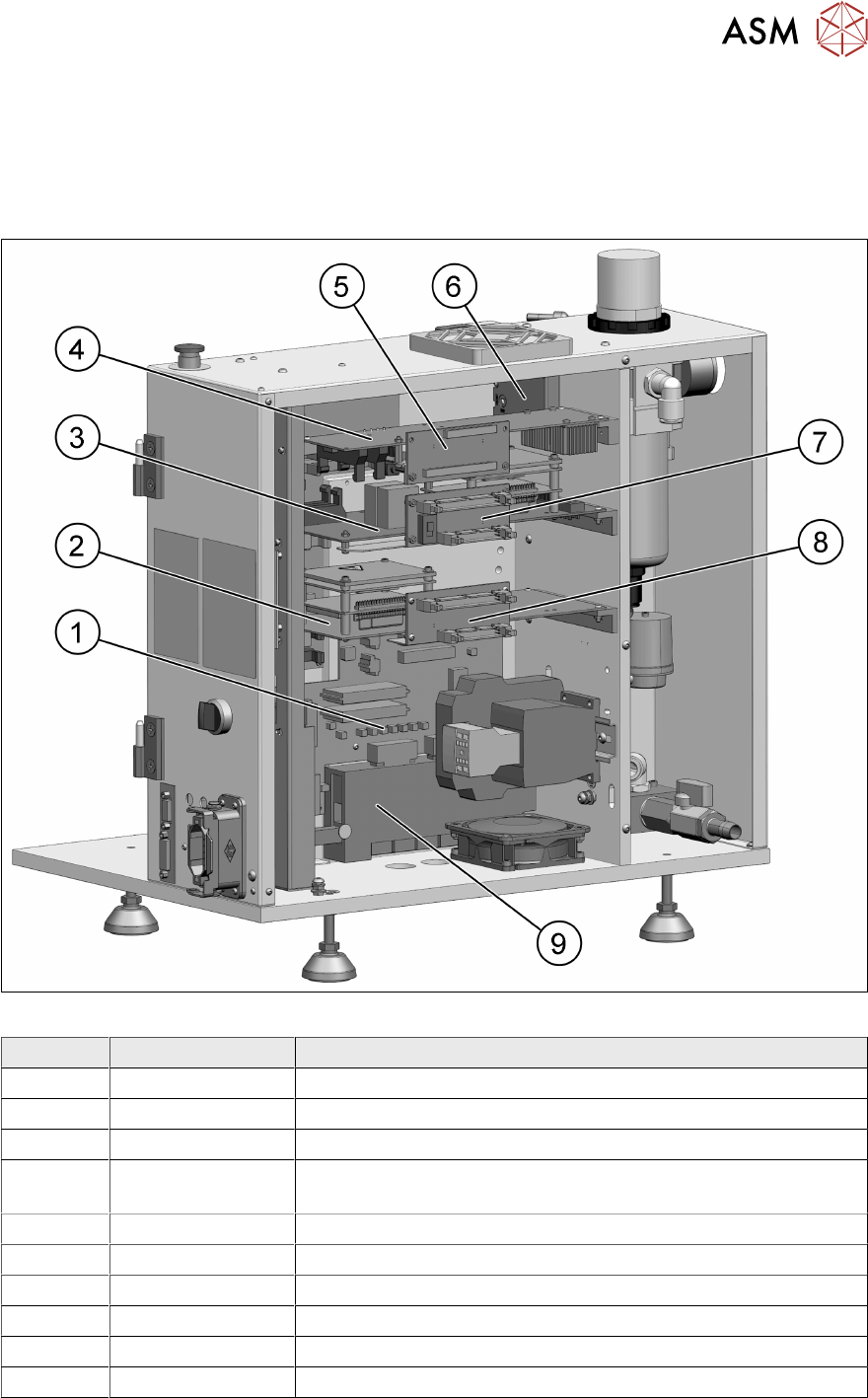

Spare Parts – Rear View – Part 1

Fig.2: Spare Parts – Rear View – Part 1

Pos. Item Number Description

1 03149124-xx Head care interface HCS II v2.3

2 03158916‑xx PCB-base adapter-Twin-HCS2.3

3 03158917‑xx PCB-base adapter-C&P-HCS2.3

2, 3 03090990-xx MHCU complete compatible

(on Base Adapter Twin / C&P)

4 03055072-xx Modul Head Interface C700B

5 03087842-xx Board Adapter-LP C700B-HCSII

6 03152714-xx Safety switch door HCS2.3

7 03087843-xx Board Adapter-LP CPP/CP20-HCSII

8 03087844-xx Board Adapter-LP Twin-HCSII

9 03085251-xx LabJack UE9

2 Spare parts overview

2.1 HCSII Head Unit

12 Service Manual SIPLACE Head Care Station II 11/2019

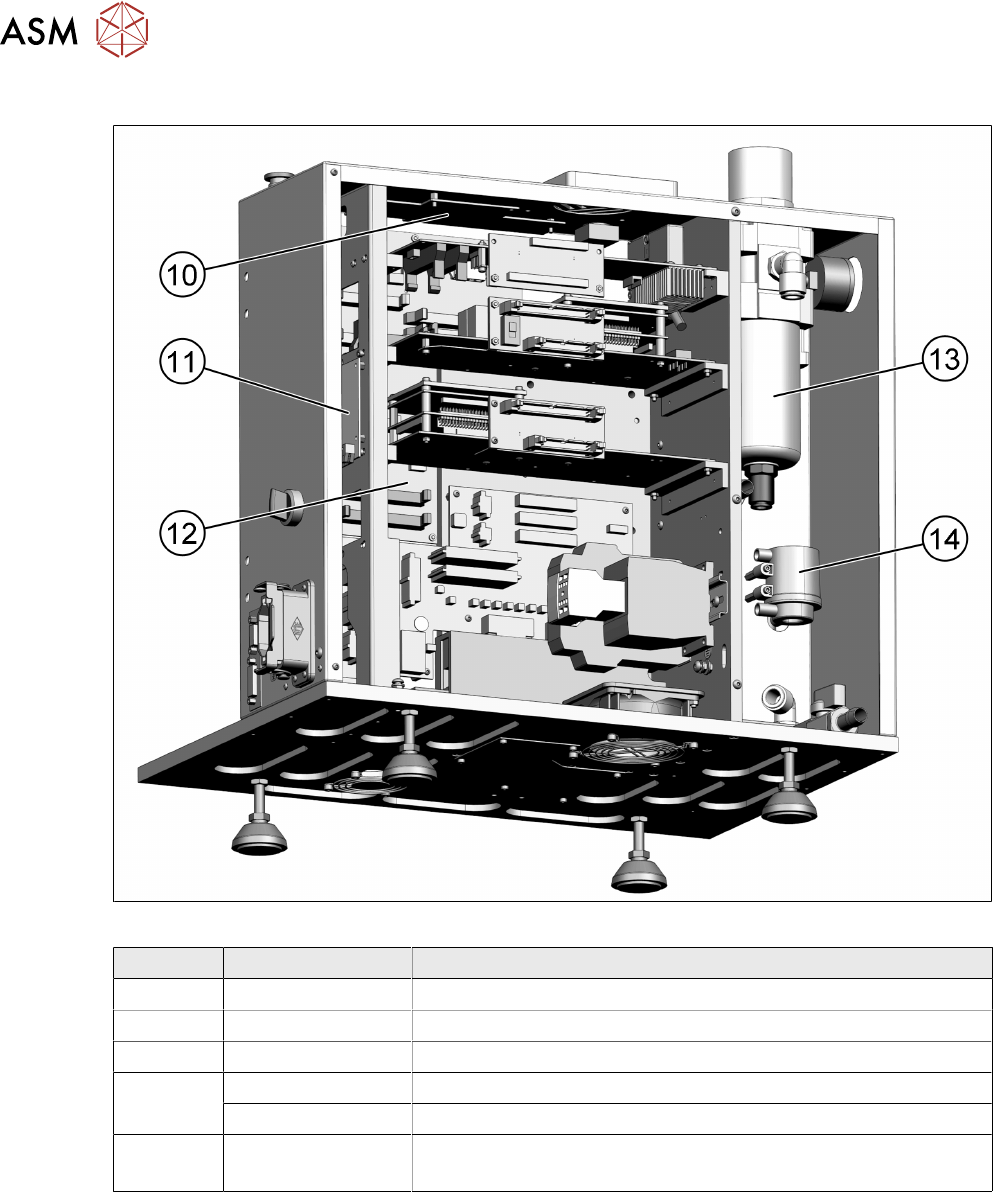

Spare Parts – Rear View – Part 2

Fig.3: Spare Parts – Rear View – Part 2

Pos. Item Number Description

10 03067289-xx VISION BOARD Spread Spectrum HCU cpl

11 03050555-xx Vision Hotlink Adapter VHA

12 03085198-xx Board Adapter Head interface C700B (from rear view)

13 03079075-xx Compressed air filter

Filter element AF40P-060S for compressed air

14 03018635-xx

03003717-xx

Cooling air filter element

Filter element x 1
