2 Spare parts overview
2.3 Cables
Service Manual SIPLACE Head Care Station II 11/2019 15
2.3 Cables
Cables – Head Unit

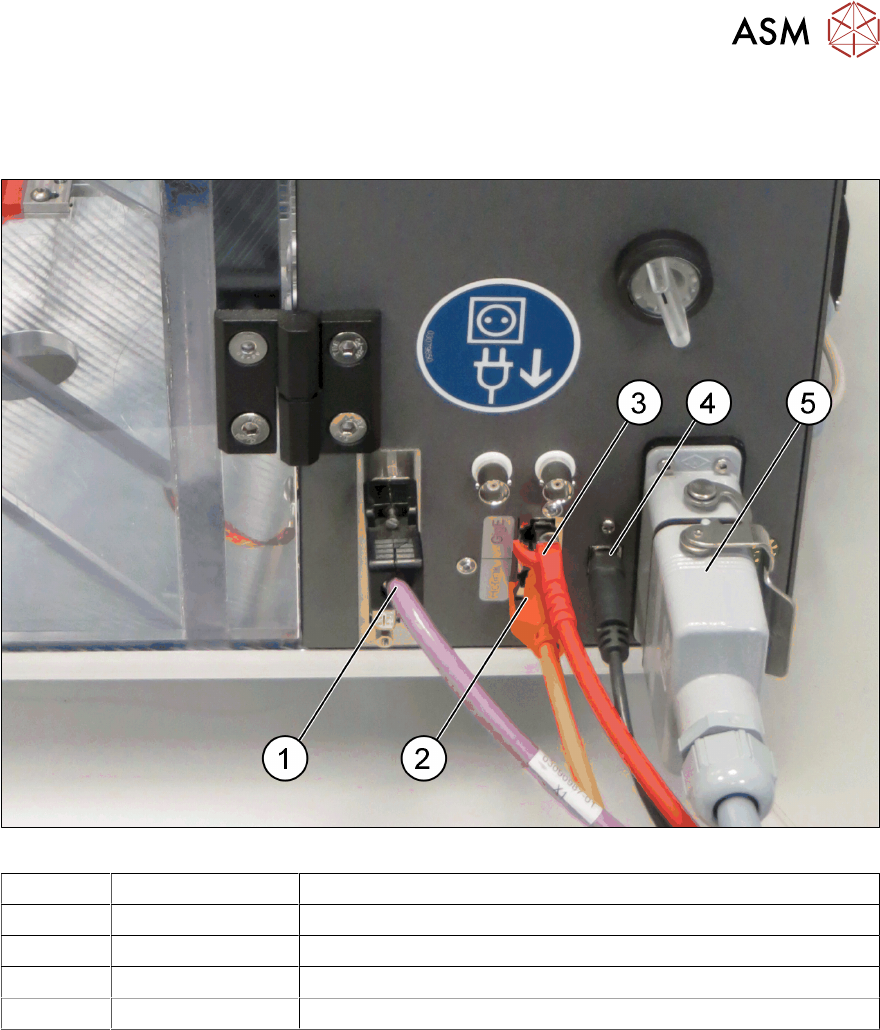

Fig.6: HCSII Head Unit – Cables
1 03159108-xx CAN-Bus cable
2 03148066-xx Hotlink cable
3 03148067-xx GigE cable
4 03148065-xx USB cable
5 03152929-xx Connection cable HCS
2 Spare parts overview
2.3 Cables
16 Service Manual SIPLACE Head Care Station II 11/2019
Cables – Control Box
Fig.7: HCSII Control Box – Cables
1 03148067-xx GigE cable
2 USB keyboard / USB mouse
03148065-xx USB cable
3, 4 03159108-xx CAN-Bus cable
5 03148066-xx Hotlink cable
6 DVI monitor cable
7 03152929-xx Connection cable HCS
8 00375711-xx Mains power cord
2 Spare parts overview
2.4 List of all spare parts
Service Manual SIPLACE Head Care Station II 11/2019 17
2.4 List of all spare parts
03152714-xx Safety switch door HCS2.3
03067289-xx VISION BOARD Spread Spectrum HCU cpl.
03050555-xx Vision Hotlink Adapter VHA
03090990-xx MHCU complete compatible
03149124-xx Headcare interface HCS II v2.3
03055072-xx Modul Head Interface C700B
03008825-xx Assembly PCB digital 28
03087843-xx Board Adapter-LP CPP/C&P20-HCS II
03087842-xx Board Adapter-LP C700B-HCSII
03085198-xx Board Adapter Headinteface C700B
03085251-xx LabJack UE9
03158917‑xx PCB-base adapter-C&P-HCS2.3
03158916‑xx PCB-base adapter-Twin-HCS2.3
03087844-xx Board Adapter-LP Twin-HCSII
03079126-xx AC/DC converter FlatPAC 150VDC 400W
03087898-xx AC/DC converter QS10.241 24VDC 10A 240W
03147077-xx AC/DC converter FlatPAC 2 x 40VDC 400W
03120423-xx BoxPC ABP402-A CPU1020E 2xPCI SSD (iBase)
03079973-xx CAN card COM168V2-PCI
03052135-xx Hotlink Interface PCI-A24-K01
03090149-xx PCB Power adjust HCS II cpl.
03148066-xx Cable: Hotlink
03152929-xx Cable connection cable HCS2.3
03159108-xx CAN-BUS: HCS2.3
00375711-xx Connection cable for cold equipment
03148065-xx Cable: USB IO Modul LabJack
03148067-xx Cable: PC GigE
03065971-xx Cable set CPP / B series
03065867-xx Flat cable set C&P20 / B series
03104448-xx VTS board head camera GigE
03152714-xx Safety switch door HCS2.3
03037590-xx Fuse clamp max. 10A type 281-611
03010624-xx Feinsicherung 5x20 / T 1,0A / keramik
03133256-xx Fuse 5x20mm T 6,3A 400VDC
03079075-xx Compressed air filter
Filter element AF40P-060S for compressed air
03003717-xx Cooling air filter element
