4 Service work – HCSII Head Unit 4.1 Equipment and tools Service Manual SIPLACE Head Care Station II 11/2019 23 4 Service work – HCSII Head Unit DANGER Observe safety instructions! ► Please observe the safety instructi…

3 Preparatory work...

3.5 Remove the contactors K3 and K4

22 Service Manual SIPLACE Head Care Station II 11/2019

3.5 Remove the contactors K3 and K4

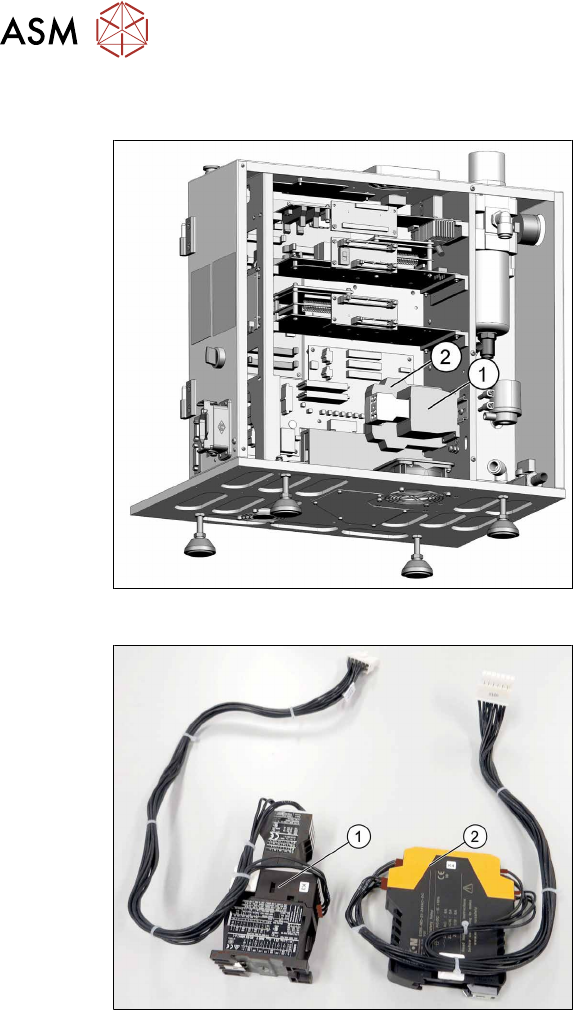

Fig.13: Remove contactors K3 and K4

1. K3 to X101

2. K4 to X100

► Remove the contactors K3(1) and

K4(2) for better access to all parts.

► Unplug the electrical connections. You

might like to mark their positions to

make clear assignment easier later on.

Fig.14: Contactors K3 and K4

Contactors removed

1. K3

2. K4

4 Service work – HCSII Head Unit

4.1 Equipment and tools

Service Manual SIPLACE Head Care Station II 11/2019 23

4 Service work – HCSII Head Unit

DANGER

Observe safety instructions!

► Please observe the safety instructions in this Service Manual and in the HCSII User

Manual for all work!

NOTICE

Observe the detailed circuit diagrams!

► For more detailed information refer to the circuit diagrams folder of the HCSII.

●

Detailed circuit diagrams folder for HCSII [DEEN:00198762‑xx]

4.1 Equipment and tools

Equipment and tools needed for service work on the HCSII Head Unit:

00353832‑xx Allen key set 1.5 mm, 2 mm, 2.5mm, 3mm

00376516-xx Socket wrench set 5.5 mm

00096290-xx Spanner wrench set 5.5 mm, 7 mm

03080081-xx Torx allan key TX8

00318673-xx Side cutter electronic Size 110

00096487-xx Angled tweezers 140mm oval

00308458-xx Cable ties B=2.5mm, L=102mm Panduit

4 Service work – HCSII Head Unit

4.2 Replacing the compressed air filter

24 Service Manual SIPLACE Head Care Station II 11/2019

4.2 Replacing the compressed air filter

Parts

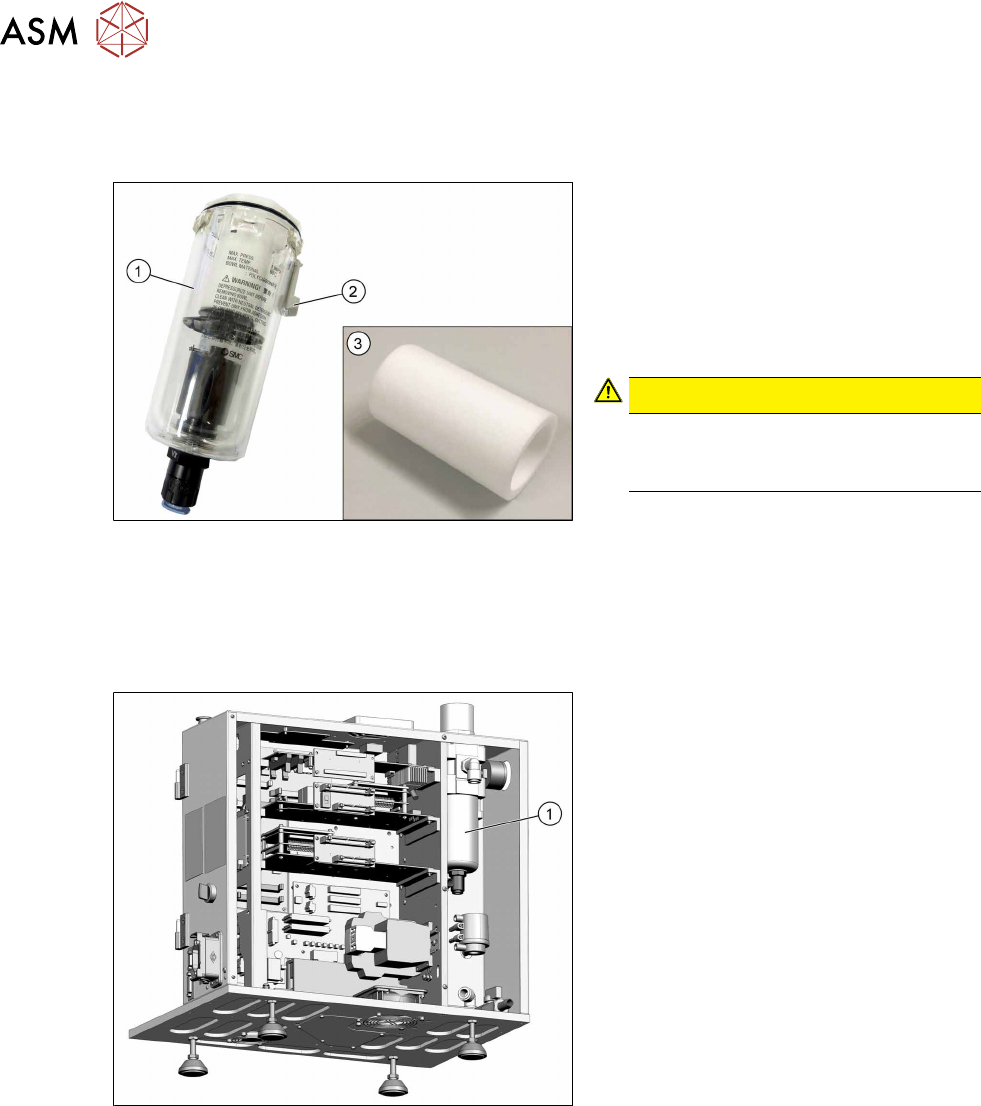

Fig.15: Compressed air filter

1. Pressure container

(part of compressed air filter

[03079075-xx])

2. Lock

3. Filter element AF40P-060S for com-

pressed air

 CAUTION!

Maintenance

Annually check the compressed air fil-

ter and replace it if necessary.

Preparatory work...

► Turn off and disconnect the HCS II. See 3.1 "Turn off and disconnect the HCS II" [}19].

Removal

Fig.16: Remove compressed air filter

► Vent the system at the bottom of the

compressed air filter(1). Hold a cloth

underneath to capture any escaping

liquid.

► Press the lock and turn the pressure

container out of the compressed air

unit.
