4 Service work – HCSII Head Unit 4.4 Replacing the Base Adapter Twin / MHCU 26 Service Manual SIPLACE Head Care Station II 11/2019 4.4 Replacing the Base Adapter Twin / MHCU Parts Fig.20: PCB Base Adapter-Twin ● PCB Ba…
4 Service work – HCSII Head Unit
4.3 Replacing the cooling air filter element
Service Manual SIPLACE Head Care Station II 11/2019 25
Fig.17: Filter
► Open the white lock(1) at the top.
► Take out the filter unit(2).
► Remove the black lock(3) at the bot-
tom.
► Exchange the filter(4).
Installation
► Follow the removal instructions in reverse order for installation.
4.3 Replacing the cooling air filter element
Parts
Fig.18: Cooling air filter element
Cooling air filter element [03003717‑xx]
CAUTION!
Maintenance
Annually check the filter and replace it
if necessary.
.
Preparatory work...
► Turn off and disconnect the HCS II. See 3.1 "Turn off and disconnect the HCS II" [}19].
Removal
Fig.19: Remove cooling air filter element
► Remove the hose(1) at the front.
► Remove the screw(2).
► Open the housing at the bottom(3) and
pull out the filter(4).
Installation
► Follow the removal instructions in reverse order for installation.
4 Service work – HCSII Head Unit
4.4 Replacing the Base Adapter Twin / MHCU
26 Service Manual SIPLACE Head Care Station II 11/2019
4.4 Replacing the Base Adapter Twin / MHCU
Parts

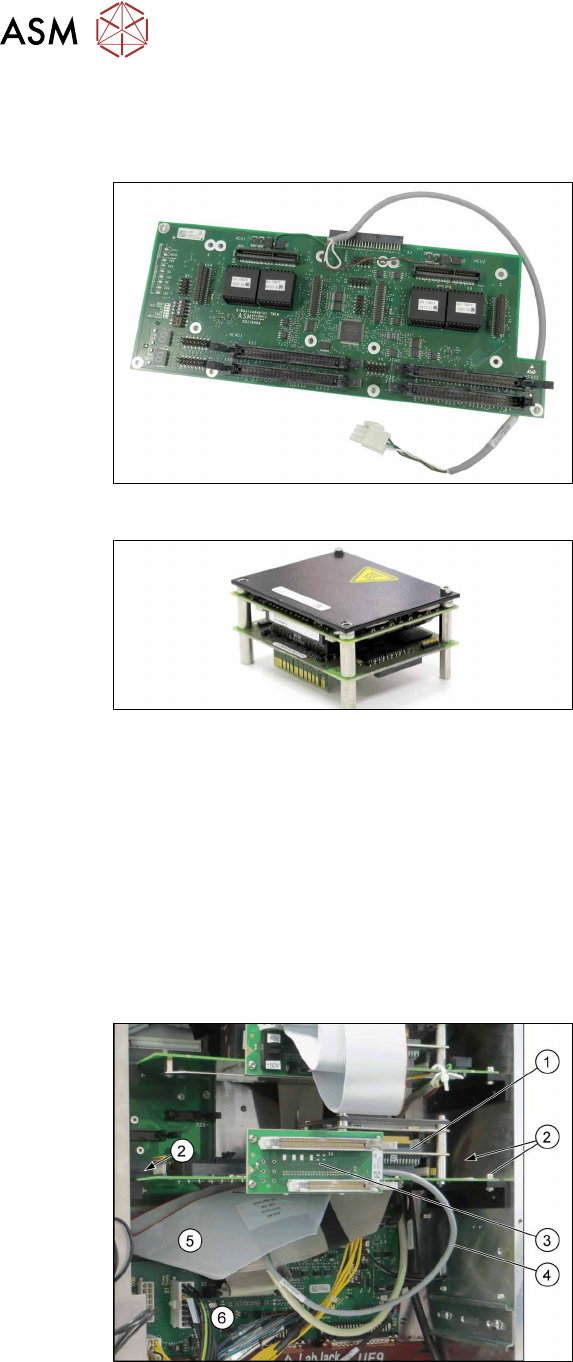

Fig.20: PCB Base Adapter-Twin
●
PCB Base Adapter Twin HCS2.3
[03158916‑xx]
Fig.21: MHCU complete compatible
●
MHCU complete compatible
[03090990‑xx]
Preparatory work...
► Turn off and disconnect the HCS II. See 3.1 "Turn off and disconnect the HCS II" [}19].
► Perform the steps described in section 3.3 "Access to the spare parts of the HCS II Head
Unit" [}20].
► Remove the contactors K3 and K4. See 3.5 "Remove the contactors K3 and K4" [}22].
Removal
► Open any cable ties where necessary. You may want to mark the positions of the relevant
connections to make clear assignment easier later on.
Fig.22: Removal
► Unplug the flat ribbon cable from the
Base Adapter-Twin(3).
► Unplug the round cable X91(4) from
the board adapter head interface(6)
(main PCB at the back side).
► Unplug the cables X30/X31(5) from the
board adapter head interface(6).
► Remove the three screws(2) fastening
the Base Adapter-Twin(1) on the
assembly bracket. Make sure that the
screws are not lost.
► Carefully remove the Base Adapter-
Twin(1).
4 Service work – HCSII Head Unit
4.4 Replacing the Base Adapter Twin / MHCU
Service Manual SIPLACE Head Care Station II 11/2019 27

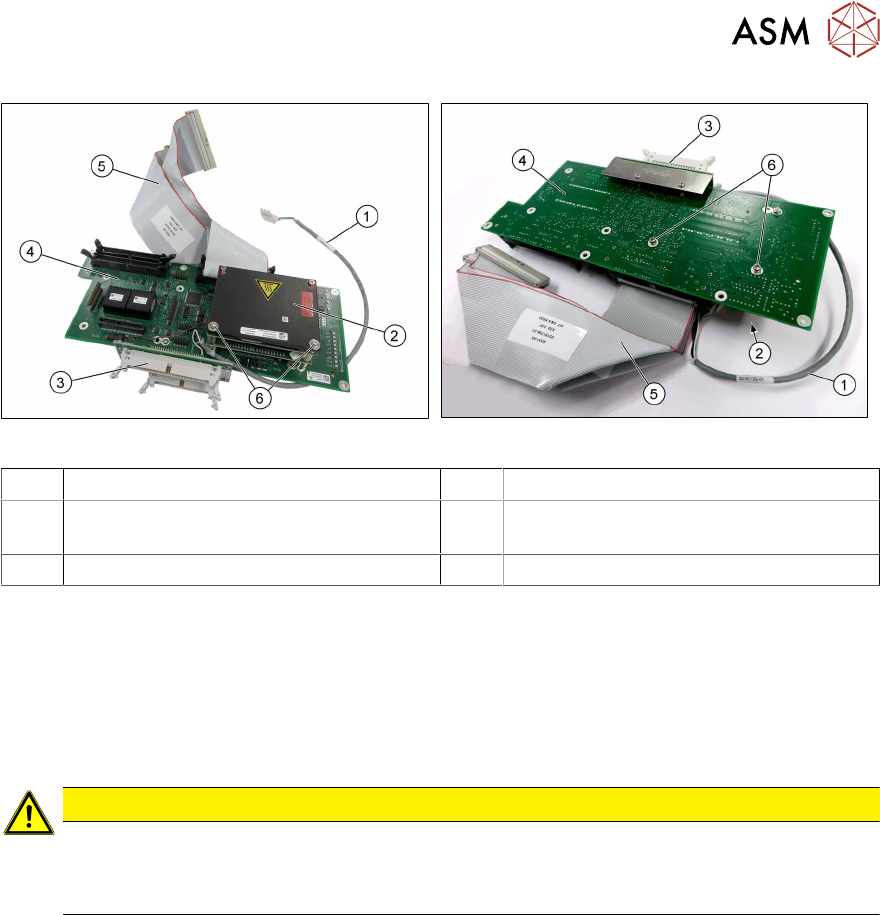

Fig.23: Base Adapter-Twin (upper side)
Fig.24: Base Adapter-Twin (under side)
1 Cable X91 2 MHCU
3 Board Adapter LP Twin-HCSII
[03087844‑xx]
4 PCB Base Adapter Twin HCS2.3
[03158916‑xx]
5 Two cables X30/X31 [03151796‑xx] 6 Screws fastening the MHCU
► Remove the cables X30/X31(5).
► Remove the Board Adapter LP Twin-HCSII(3).
4.5 "Replacing the Board Adapter LP Twin" [}28].
Replacing/Converting the MHCUs
► Remove the screws(6) on the back of the board fastening the MHCU(2) and carefully pull the
MHCU off the base adapter.
CAUTION
Washers/Pins
► Make sure that you do not lose the washers.
► Make sure that you do not damage the pins under the MHCU.
Installation
► Follow the removal instructions in reverse order for installation.
► Replace any cable ties which you have removed.
