SIPLACE 80S -20/F4 User Manual 4 Placement functions Software version SR.407.xx 01/2001 US Edition 4. 3 Feeders 171 4.3.3.1 Up dating inventory levels Å Clic k on the Update inven tory level s button. The cu rrent in ven…

100%1 / 570
4 Placement functions SIPLACE 80S-20/F4 User Manual
4.3 Feeders Software version SR.407.xx 01/2001 US Edition
170
4.3.3 "Trays" view
The "Update inventory levels" function can be used to update the display of the inventory levels
for all waffle pack trays in this view as required. 4
NOTE
Display of the inventory levels is not updated automatically during placement. 4
When waffle pack trays have been refilled with components, it is possible to enter the number of
components in each waffle pack tray which has been refilled. It is not possible to enter a value
higher than the predefined maximum value. 4
4
4
Å Click on the icon.
The "Trays" view appears (see Fig. 4.3 - 4
).
4

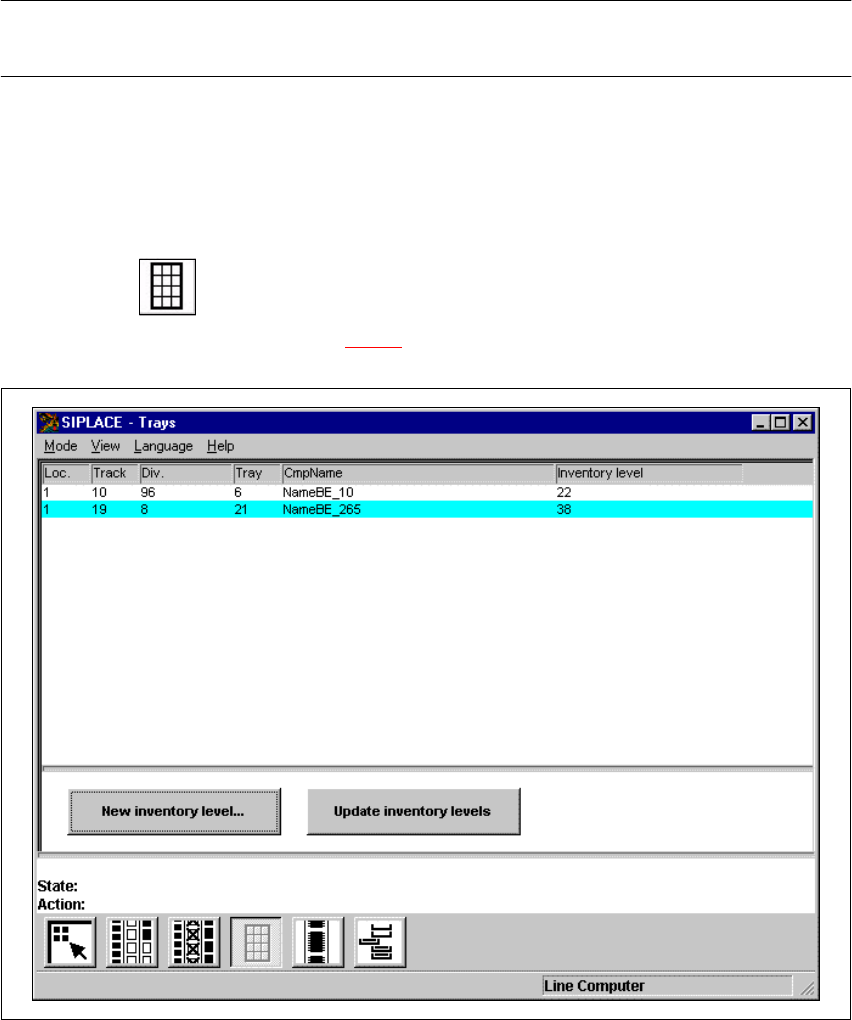

Fig. 4.3 - 4 "Trays" view
SIPLACE 80S-20/F4 User Manual 4 Placement functions
Software version SR.407.xx 01/2001 US Edition 4.3 Feeders
171
4.3.3.1 Updating inventory levels
Å Click on the Update inventory levels button.
The current inventory level for each waffle pack tray is shown in the table.
4.3.3.2 Entering new inventory levels
Å After a waffle pack tray has been refilled with components, choose the entry in the table for the
waffle pack tray which has been refilled.
The selected line is shown in light blue in the table.
The "New inventory level..." button is activated.
Å Click on the New inventory level... button.

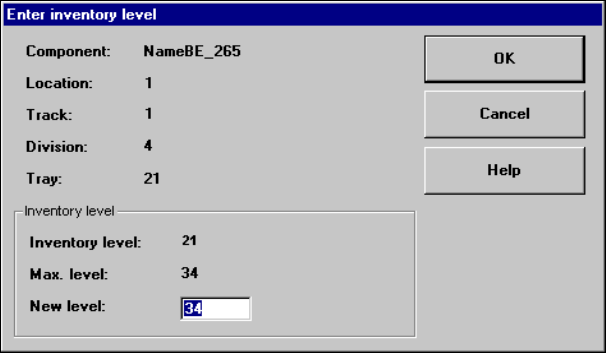

The following dialog box appears.
4
Å In the text box, enter the actual number of components contained in the waffle pack tray and
confirm your entry with OK.
The dialog box closes and the new inventory level is shown in the table for the selected waffle
pack tray.
4
4
4
4 Placement functions SIPLACE 80S-20/F4 User Manual
4.3 Feeders Software version SR.407.xx 01/2001 US Edition
172
4.3.4 "Linear feeder" view
When refilling the linear feeders with components, the operator must select the correct component
in the Setup view to refill an empty track (see Section 4.1.1
). The track with the corresponding lin-
ear feeder must be vibrated so that the new components move to the front after the tray has been
inserted. 4
4
Å Click on the icon.
The "Linear feeder" view is displayed (see Fig. 4.3 - 5
).
4

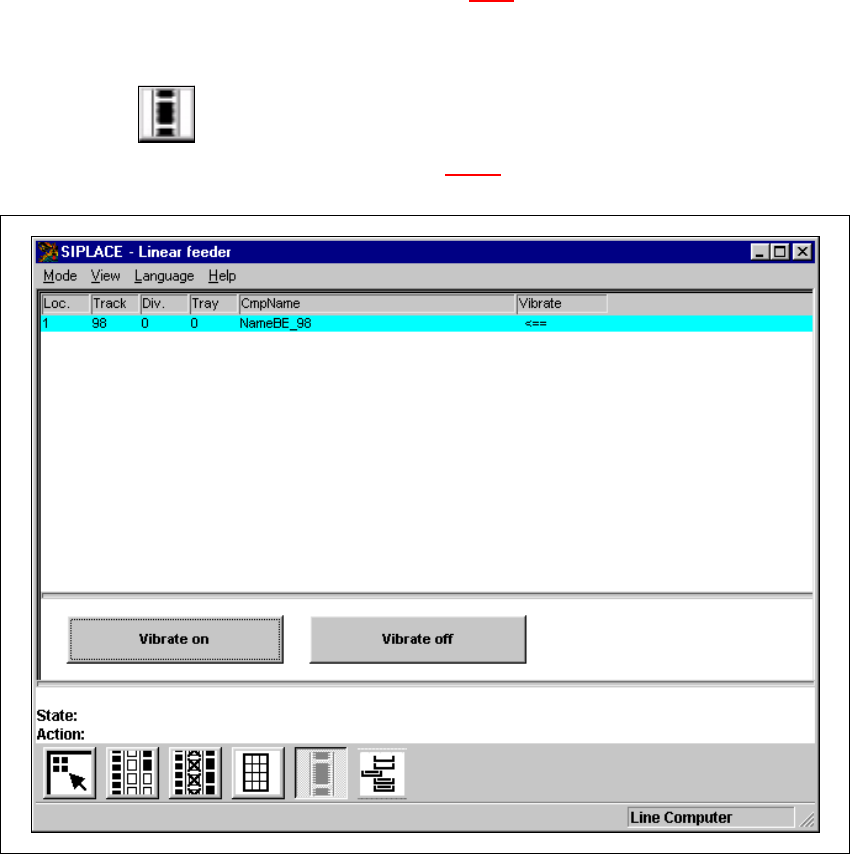

Fig. 4.3 - 5 "Linear feeder" view
