4 Placement functions SIPLACE 80S-20/F4 User Manual

4.3 Feeders Software version SR.407.xx 01/2001 US Edition

176

4.3.5.6 Feed tray

This allows you to define the level containing the waffle pack tray to be made available for place-

ment. 4

NOTE

The waffle pack changer must not be in the refill position when this function is carried out. 4

Å Click on the Feed tray button.

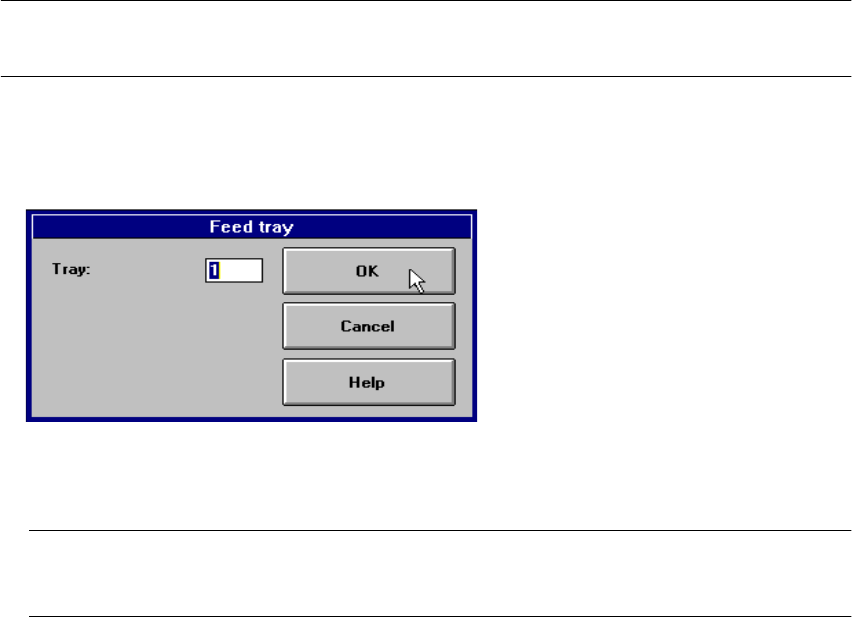

The following dialog box is displayed.

Å In the text box, enter the number of the required level and confirm your entry with OK. The waf-

fle pack changer moves the waffle pack tray from the selected level to the pick-up position.

NOTE

If a waffle pack tray is already in the pick-up position, it is first moved to its defined level. 4

SIPLACE 80S-20/F4 User Manual 5 Single functions

Software version SR.407.xx 01/2001 US Edition 5.1 General comments

177

5 Single functions

5.1 General comments

Gantry functions and transport functions are known as single functions. They are used to set up

and test the machines and to carry out particular actions following a machine shutdown caused

by an error.

Single functions can be used to control various function modules in a defined manner.

WARNING

Single functions may only be executed by appropriately qualified and trained personnel, since

improper handling can result in personal injury/damage to the machine.

5 Single functions SIPLACE 80S-20/F4 User Manual

5.2 Single functions, gantry Software version SR.407.xx 01/2001 US Edition

178

5.2 Single functions, gantry

NOTE

The travel functions of the x or y axis can only be carried out when the machine cover is closed.

To execute this function, press the start button.

As a rule, the gantry only travel slowly. 5

Å Click on the icon in the toolbar in the Main view (or choose the option SF gantry 1

from the View menu).

The user interface is switched to the "Revolver head functions" view (see Fig. 5.2 - 1

5.2.1 "Revolver head functions" view

The revolver head functions can be used to control all functions relating to the Collect&Place

head. 5

NOTE

The Collect&Place head functions can be executed with the machine cover open. To do this the

key-operated switch must be turned to position I. 5
