5 Single functions
5.1 General comments
Gantry functions and transport functions are known as single functions. They are used to set up
and test the machines and to carry out particular actions following a machine shutdown caused
by an error.
Single functions can be used to control various function modules in a defined manner.
WARNING
Single functions may only be executed by appropriately qualified and trained personnel, since
improper handling can result in personal injury/damage to the machine.

5 Single functions SIPLACE 80S-20/F4 User Manual
5.2 Single functions, gantry Software version SR.407.xx 01/2001 US Edition
178
5.2 Single functions, gantry
NOTE
The travel functions of the x or y axis can only be carried out when the machine cover is closed.
To execute this function, press the start button.
As a rule, the gantry only travel slowly. 5
5
Å Click on the icon in the toolbar in the Main view (or choose the option SF gantry 1
from the View menu).
The user interface is switched to the "Revolver head functions" view (see Fig. 5.2 - 1
).
5
5
5.2.1 "Revolver head functions" view
The revolver head functions can be used to control all functions relating to the Collect&Place
head. 5
NOTE
The Collect&Place head functions can be executed with the machine cover open. To do this the
key-operated switch must be turned to position I. 5
5
5

SIPLACE 80S-20/F4 User Manual 5 Single functions
Software version SR.407.xx 01/2001 US Edition 5.2 Single functions, gantry
179
5

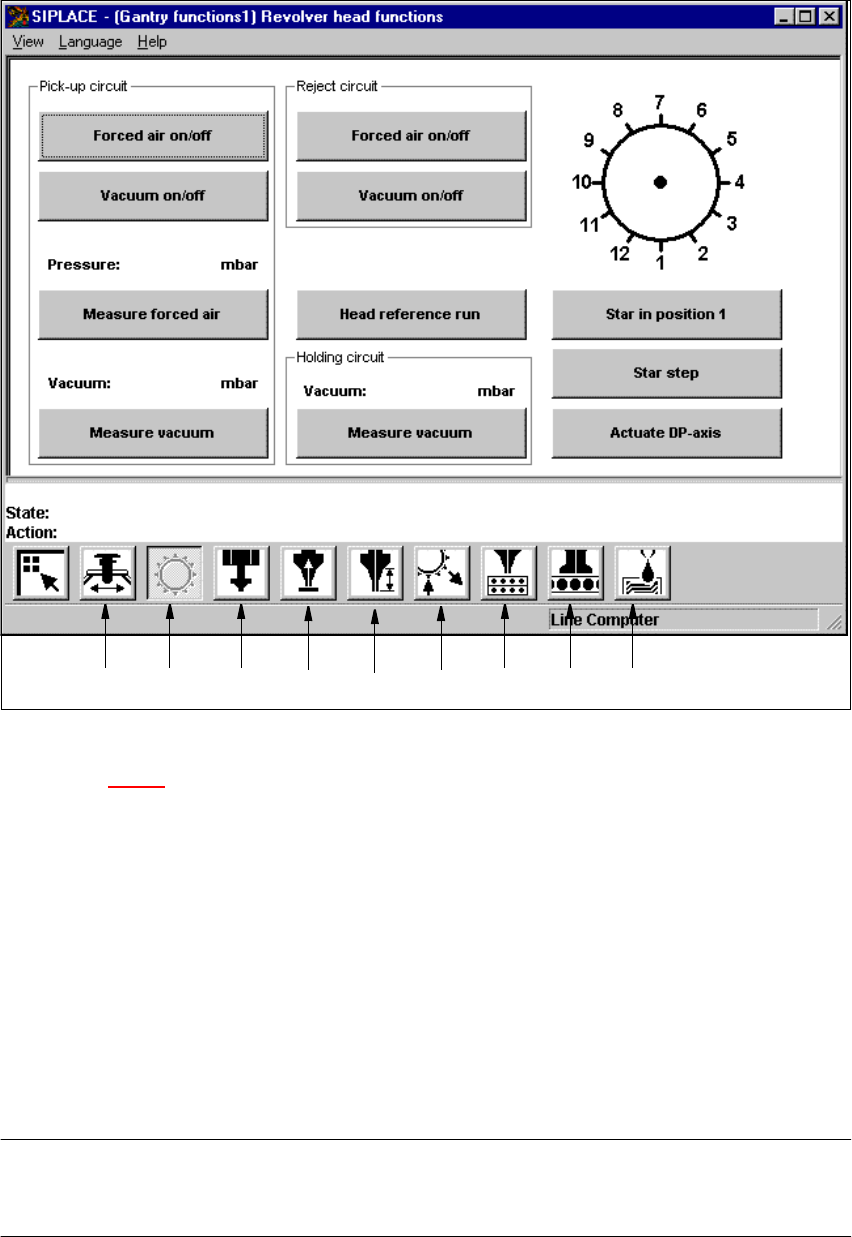

Fig. 5.2 - 1 "Revolver head functions" view (12-nozzle Collect&Place head)
Key to Fig. 5.2 - 1
(1) Gantry functions
(2) Revolver head functions
(3) IC-head functions
(4) Vacuum test, revolver head
(5) Nozzle offset, revolver head
(6) Nozzle configuration, revolver head
(7) Nozzle changer configuration, revolver head
(8) Nozzle changer configuration IC-head
(9) Fluxer head functions
NOTE
The current position of the Collect&Place head segment is shown by the graphic above the "Star in
position 1" button. 5
12 34 56789
