SIPLACE 80S-20/F4 User Manual 5 Single functions

Software version SR.407.xx 01/2001 US Edition 5.3 Single functions, transport

207

PCB to output conv. 5

This function is used to move a board currently in the center conveyor to the output conveyor. 5

Å Click the PCB to output conv. button.

The board currently located on the center conveyor is moved to the output conveyor.

Refresh 5

The "Refresh" function is used to check whether the ultrasonic sensors for the whole of the trans-

port conveyor are adjusted correctly. To do this, position a board over one of the sensors. 5

The most recent states of the light barriers for the input conveyor (input), center conveyor (center),

and output conveyor (output) are displayed above the "Refresh" button. When you execute the

"Refresh" function the current states are queried and the results displayed (see Fig. 5.3 - 1

). 5

Å Position a board over the sensor for the required conveyor.

Å Click the Refresh button in the "Sensor state" area.

The sensors are updated and the result is displayed over the button.

There are two possible states for each sensor: 5

1 = The sensor has responded.

There is a board on this conveyor. 5

0 = The sensor has not responded.

There is no board on this conveyor. 5

Å Repeat the process for each of the transport conveyors, if necessary.

On 5

This function can be used to check the conveyors at both slow and high speed. The input conveyor

only travels at high speed. 5

NOTE

The conveyor must be empty before carrying out this function. 5

Å Click the PCB to output conv. button to empty the conveyor.

Å Activate the "High speed" check box in the "Conveyor" area if the conveyor is to travel at high

speed.

Å Deactivate the check box if the conveyor is to travel at the slower speed.

NOTE

The input conveyor only travels at high speed. 5

5 Single functions SIPLACE 80S-20/F4 User Manual

5.3 Single functions, transport Software version SR.407.xx 01/2001 US Edition

208

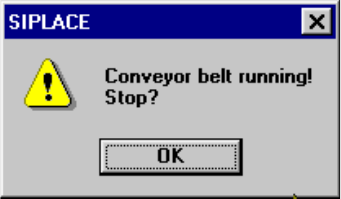

Å Click the On button. This opens the following dialog box.

The conveyors are traveling at the set speed.

All functions are locked. 5

Å Click the OK button in this dialog box if the operation is to be stopped.

The conveyors will be stopped and the dialog box closed.

All functions are then released.

SIPLACE 80S-20/F4 User Manual 5 Single functions

Software version SR.407.xx 01/2001 US Edition 5.3 Single functions, transport

209

5.3.2 "PCB conveyor width" view

Å In the "Transport functions" view, click the symbol.

The user interface is switched to the "PCB conveyor width" view (see Fig. 5.3 - 2

Fig. 5.3 - 2 "PCB conveyor width" view

CAUTION

Before adjusting the conveyor width, make sure there are no boards or other objects on the

machine’s conveyors. Failure to do so may result in damage to both machine and boards!
