SIPLACE 80S-20/F4 User Manual 6 Vision functions

Software version SR.407.xx 01/2001 US Edition 6.5 Teach Fiducial

267

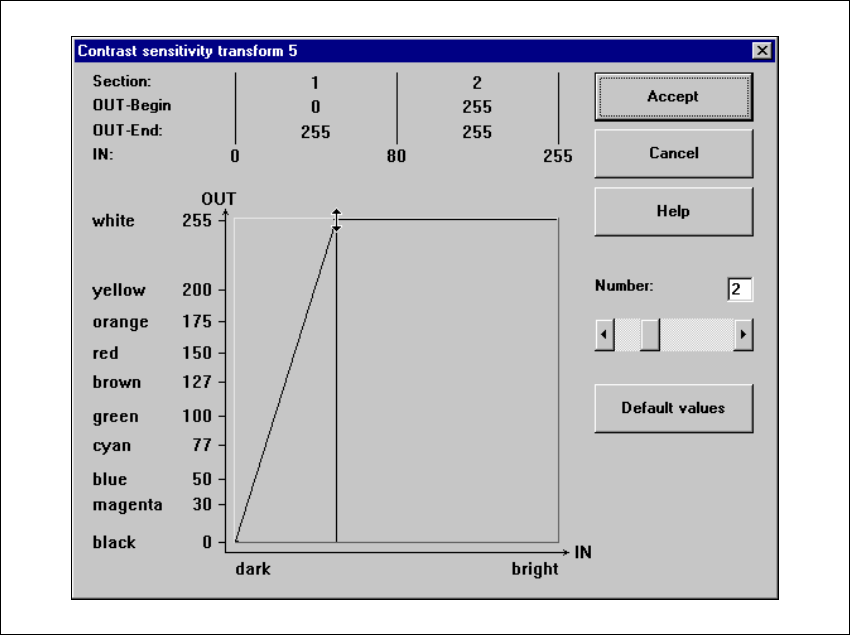

Setting the contrast sensitivity to intensify low-contrast fiducials 6

Å Select the following settings for low-contrast fiducials in order to intensify the contrast:

Fig. 6.5 - 21 Setting the contrast sensitivity to intensify low-contrast fiducials

6 Vision functions SIPLACE 80S-20/F4 User Manual

6.5 Teach Fiducial Software version SR.407.xx 01/2001 US Edition

268

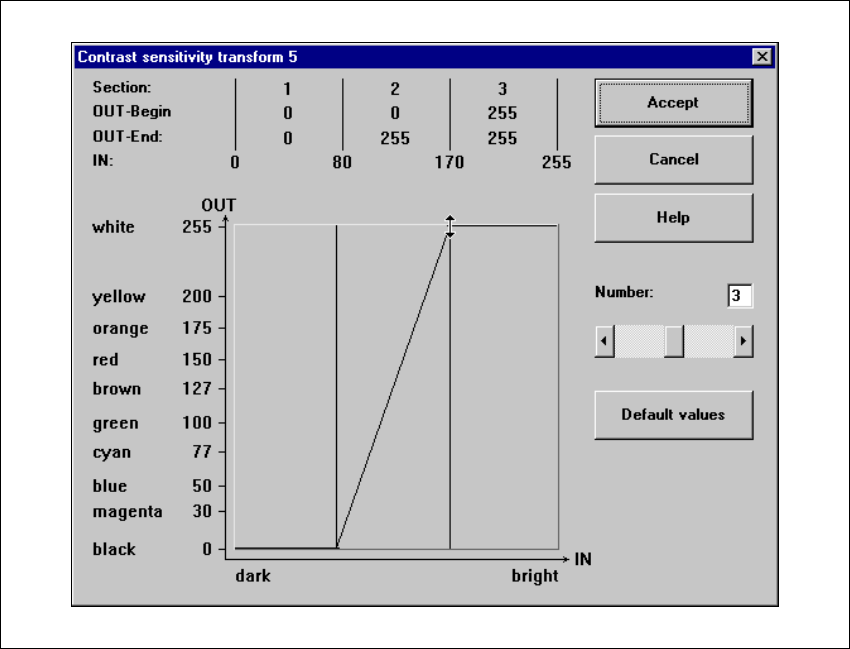

Setting the contrast sensitivity to suppress defective structures and intensify the contrast at

the same time 6

Å Select the following settings to suppress defective structures and at the same time to intensify

the contrast for low-contrast fiducials:

Fig. 6.5 - 22 Setting the contrast sensitivity to suppress defective structures and

to intensify the contrast at the same time

SIPLACE 80S-20/F4 User Manual 6 Vision functions

Software version SR.407.xx 01/2001 US Edition 6.5 Teach Fiducial

269

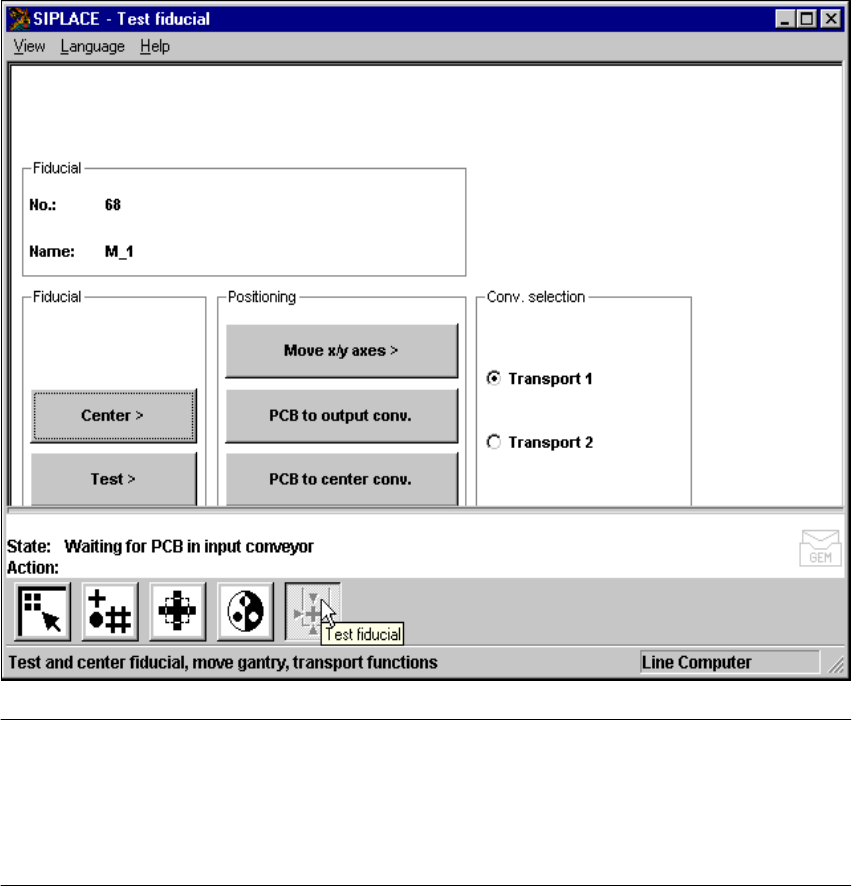

6.5.6 Test Fiducial Menu

In the Test fiducial menu the following options are available: 6

– Centering the fiducial (Center)

– Testing the fiducial (Test)

– Positioning the teaching gantry (X/Y movement) (move X/Y axes)

– Transporting the board onto the output conveyor (PCB to output conveyor)

– Transporting the board onto the processing conveyor (PCB to processing conveyor)

Fig. 6.5 - 23 Test fiducial menu, options

NOTE 6

Buttons are active when the text on the button is black (rather than gray). This means that you

can launch the associated function by clicking on the button with the mouse.

The Center and Test options will only be available if you have already loaded a fiducial and a

model already exists for this fiducial.

If you have selected a fiducial the fiducial number and the fiducial name will appear in the display

field. 6
