SIPLACE 80S -20/F4 User Manual 6 Vision functions Software version SR.407.xx 01/2001 US Edition 6.6 Test Component 321 6.6.4.13 Measure Mode Option NOTE 6 This o ption can only be a ctivated whe n a GF n umber ha s been …
6 Vision functions SIPLACE 80S-20/F4 User Manual
6.6 Test Component Software version SR.407.xx 01/2001 US Edition
320

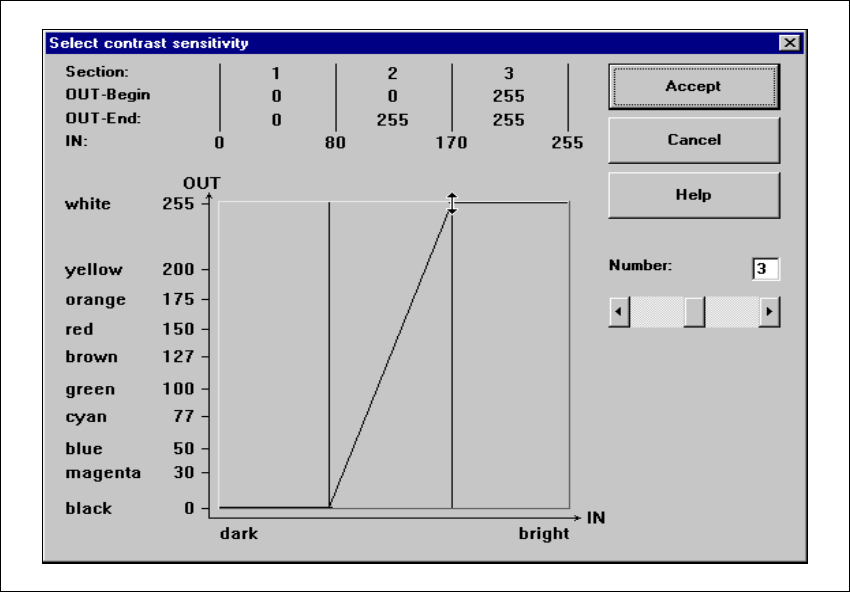

Setting the contrast sensitivity to suppress defective structures and intensify the contrast at
the same time 6
Å Select the following settings to suppress defective structures and at the same time to intensify
the contrast for low-contrast components:
6
Fig. 6.6 - 33 Setting the contrast sensitivity to suppress defective structures and
to intensify the contrast at the same time
SIPLACE 80S-20/F4 User Manual 6 Vision functions
Software version SR.407.xx 01/2001 US Edition 6.6 Test Component
321
6.6.4.13 Measure Mode Option
NOTE 6
This option can only be activated when a GF number has been loaded.
In this menu you can manipulate the measurement conditions. The menu options are primarily in-
tended for the description of non-standard components. 6
This option allows you to 6
Å select and activate a particular measurement method or combination of several measurement
methods
Å deactivate individual measurement methods, and
Å change the parameters belonging to each measurement method.
6
The hex parameters for the individual measuring methods can be modified in two ways: 6
Å either indirectly, i.e. menu-driven
You will be guided by the package form manipulator by means of setting menus and explana-
tory text in order to obtain the desired measuring results quickly and accurately.
Å or directly, i.e. you enter the necessary hex parameters directly into the ’Measuring mode 2’
input box.
NOTE 6
Please note that entering the hex values directly requires considerable knowledge of the
measuring method sequence.
If you intend to enter or modify hex values directly, please contact Siemens Service first and
do not enter the bit-coded hex values until you have spoken to the Service Department.
We recommend that you generally use the menu-driven package form manipulator. 6
6 Vision functions SIPLACE 80S-20/F4 User Manual
6.6 Test Component Software version SR.407.xx 01/2001 US Edition
322

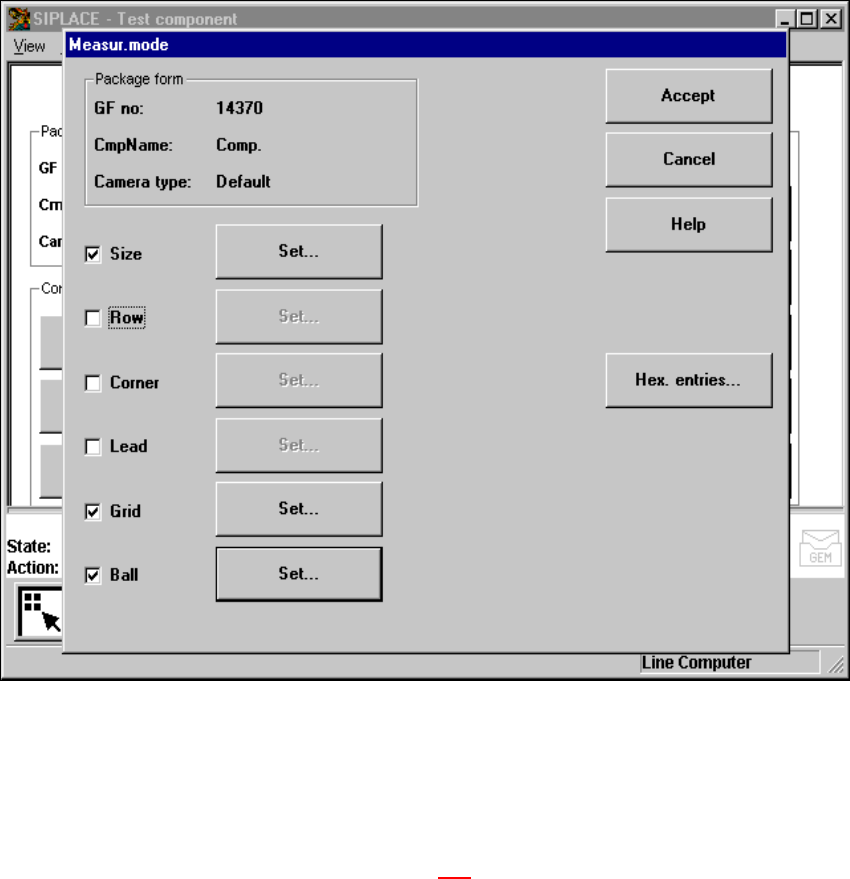

Measuring mode menu 6
Click on the ’Measuring mode’ field to call up the Measuring mode menu. 6
6
Fig. 6.6 - 34 Test component menu, Meas. mode option
– In the left column of the box, the desired measuring method can be activated or deactivated by
clicking with the mouse. A cross indicates that you have activated the measuring method. The
‘Setting' field for calling up the sub-menu changes from grey to black.
Use the ‘Hex input’ field to call up the ‘Measuring mode 2’ input menu for directly entering hex
values. Please follow the instructions on page 321
.
Å Select ‘Accept’ to close the ‘Measuring mode’ menu. The modified measuring conditions will
be entered into the package form file on the station computer.
Å Select ‘Abort’ to interrupt the operation without transferring the data and to return to the ‘Test
component’ menu.
