8 Error information and diagnostics SIPLACE 80S-20 /F4 User Manual 8.4 Diagnostics Sof tware version SR.407.xx 01/2001 US Edition 404 Diagnosis of an error without error message By clicki ng on this button you can start …
SIPLACE 80S-20/F4 User Manual 8 Error information and diagnostics
Software version SR.407.xx 01/2001 US Edition 8.4 Diagnostics
403
8.4.2.2 Diagnostics buttons
You can select one of three different ways of starting the diagnostics facility. 8
Diagnostics with automatic takeover of the error message
By clicking on this button you can start diagnostics for the errors displayed in the status line. 8
Diagnostics with manual input of the error message 8
Å Click on this button.
Å Into the input field type the error number for which you wish to start diagnostics and confirm
this with Enter.

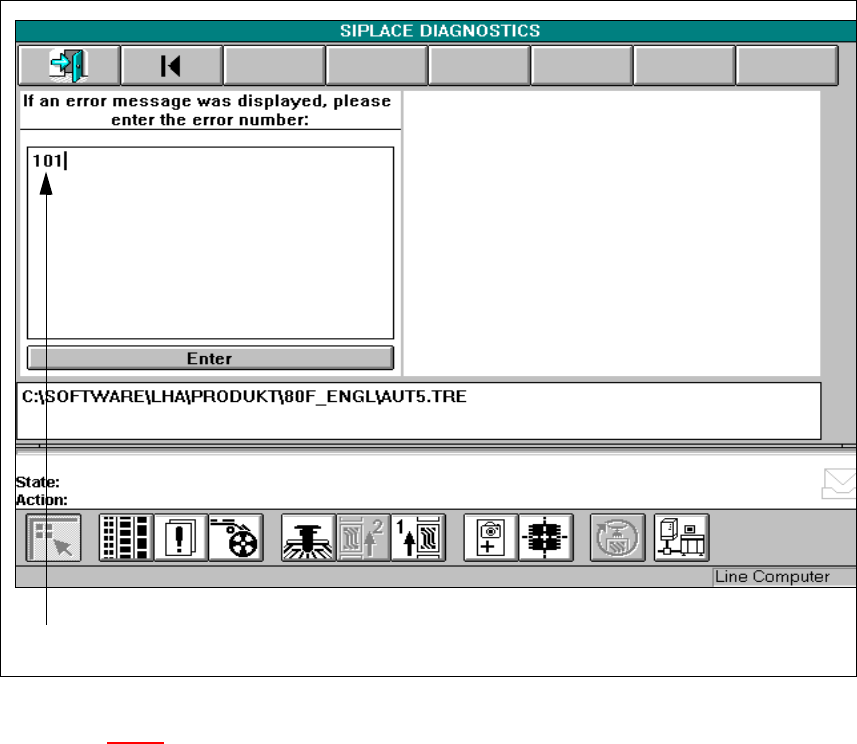

Fig. 8.4 - 4 Diagnostics with manual input of the error message
Key to Fig. 8.4 - 4
1 Input field
8 Error information and diagnostics SIPLACE 80S-20/F4 User Manual
8.4 Diagnostics Software version SR.407.xx 01/2001 US Edition
404
Diagnosis of an error without error message
By clicking on this button you can start diagnostics for errors for which there is no error message,
such as reduced placement performance, poor placement quality and so on. 8

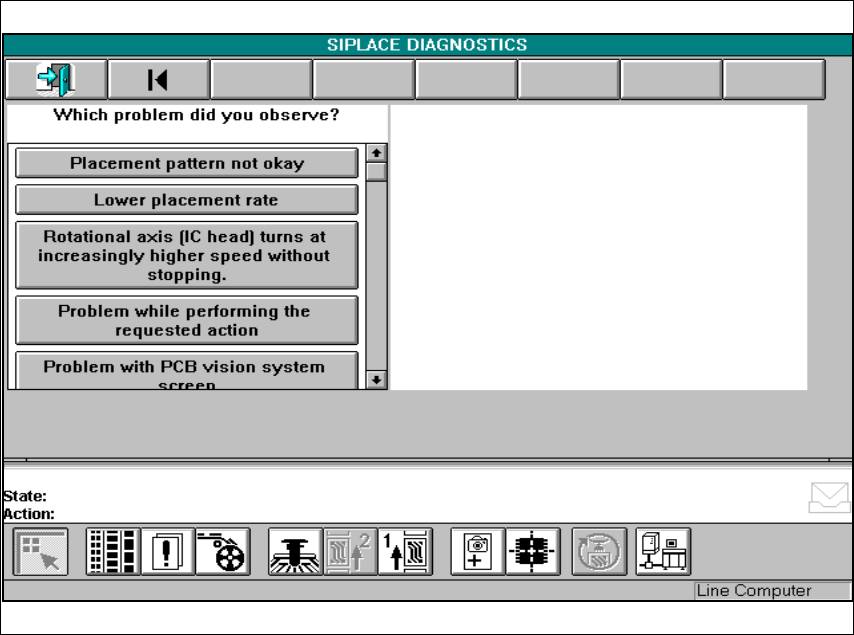

Fig. 8.4 - 5 Diagnosis of an error without error message
SIPLACE 80S-20/F4 User Manual 8 Error information and diagnostics
Software version SR.407.xx 01/2001 US Edition 8.4 Diagnostics
405
8.4.3 Procedure
NOTE
The procedure is explained with the help of an example which uses Diagnostics with automatic
take-over of error message. The procedure is identical for all diagnostic methods and error
messages. 8
If an error occurs, the error message will be displayed on the status line in the main view
(see ). 8
Å Click on the Diagnostics button.
Å Click on the Diagnostics with automatic take-over of error message button.
Å Click on the Information button; read and comply with this information.
NOTE
Always read and comply with the information when an Information button appears. 8

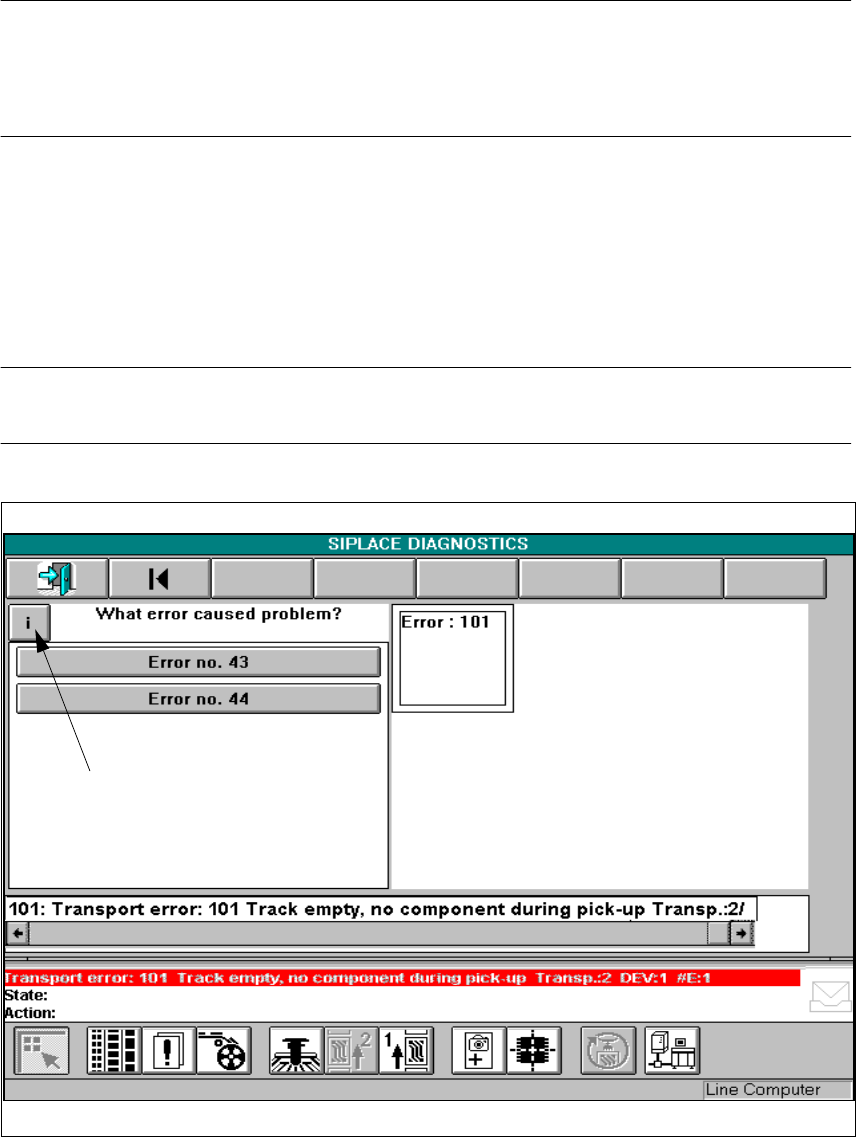

Fig. 8.4 - 6 Obtaining information on an error
