SIPLACE 80S -20/F4 User M anual 8 Error information and diagnost ics Software version SR.407.xx 01/2001 US Edition 8. 4 Diagnostics 409 Fig. 8.4 - 10 Example of a question Å An swer the question asked by clicki ng on the…
8 Error information and diagnostics SIPLACE 80S-20/F4 User Manual
8.4 Diagnostics Software version SR.407.xx 01/2001 US Edition
408

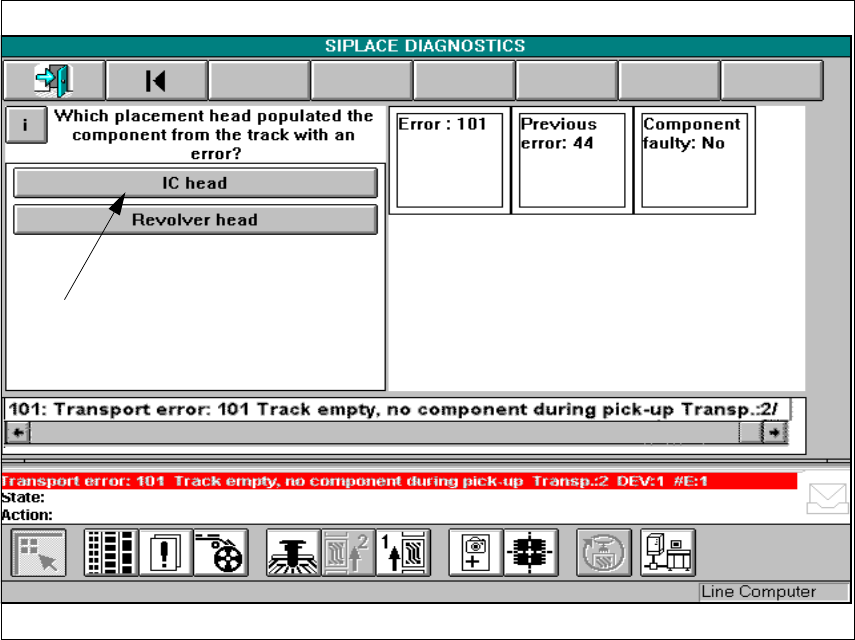

Fig. 8.4 - 9 Example of a question
Å Answer the question asked by clicking on the appropriate button.
SIPLACE 80S-20/F4 User Manual 8 Error information and diagnostics
Software version SR.407.xx 01/2001 US Edition 8.4 Diagnostics
409

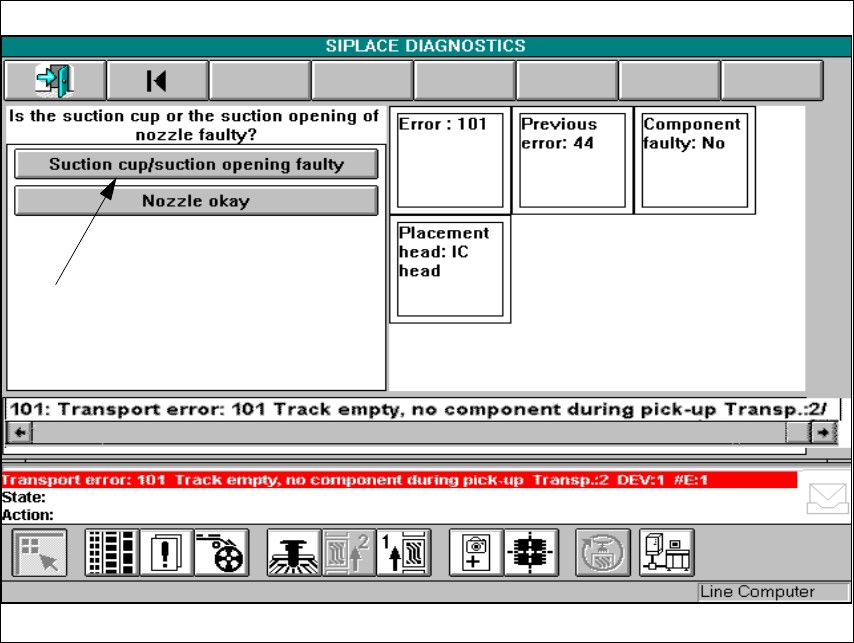

Fig. 8.4 - 10 Example of a question
Å Answer the question asked by clicking on the appropriate button.
The following screen will be displayed when the cause of the error has been determined by the
diagnostic method. 8
8 Error information and diagnostics SIPLACE 80S-20/F4 User Manual
8.4 Diagnostics Software version SR.407.xx 01/2001 US Edition
410

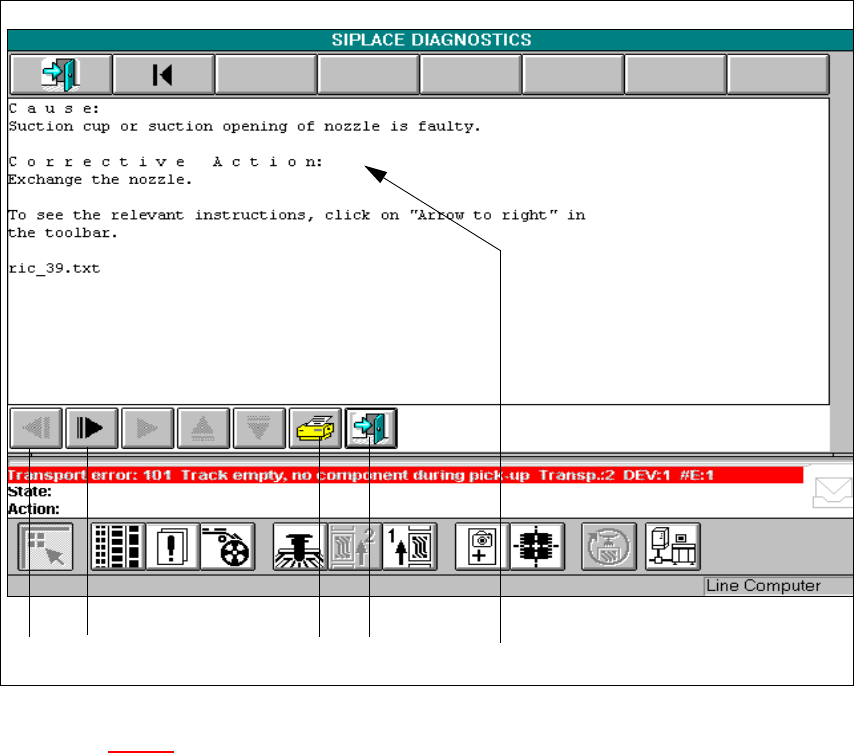

Fig. 8.4 - 11 Example of cause and remedy
Key to Fig. 8.4 - 11
1 Lower buttons bar 2 Page through additional information
3 Print window 4 Return to previous questions menu
5 Display window for cause and remedy
In the display window the possible cause of the error which has occurred is described and a
possible remedy is suggested. 8
Å If buttons on the lower buttons bar are active you can page through additional information on
error correction. Click on the corresponding button (see also )
