SIPLACE 80S -20/F4 User Manual 10 Component handling Software version SR.407.xx 01/2001 US Edition 10.2 Technical data for the feeder modules 435 10.2.9 44 mm S module (80F 4 ) 10 Fig. 10.2 - 9 44 mm S module Item no. 00…
10 Component handling SIPLACE 80S-20/F4 User Manual
10.2 Technical data for the feeder modules Software version SR.407.xx 01/2001 US Edition
434
10.2.8 Bulk case feeder (80F
4
)
10

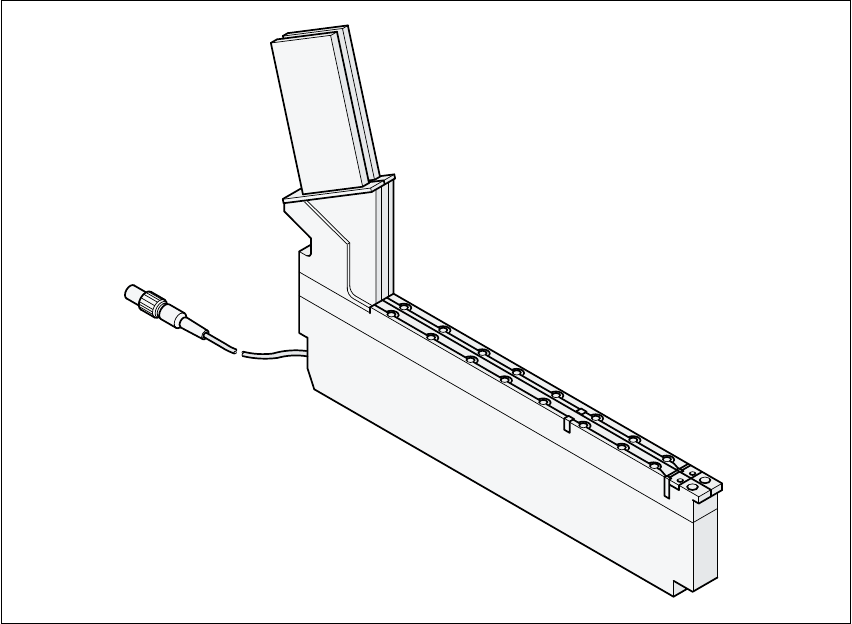

Fig. 10.2 - 8 Bulk case feeder
Item no. 00142318-xx
Width 30 mm
Tracks per module 2
Maximum number of modules 2 x 20
Magazine capacity Approx. 5000
Feeding rails 0603 / 0.45 mm high Item no. 00142321-xx
0603 / 0.80 mm high Item no. 00142322-xx
0805 / 0.45 mm high Item no. 00142323-xx
0805 / 0.60 mm high Item no. 00142324-xx
0805 / 0.85 mm high Item no. 00142325-xx
0805 / 1.25 mm high Item no. 00142326-xx
Minimelf Item no. 00142328-xx
Cycle time < 80 ms
Main power supply 30 VDC
Compressed air supply 2.0 bar + 0.3 bar
SIPLACE 80S-20/F4 User Manual 10 Component handling
Software version SR.407.xx 01/2001 US Edition 10.2 Technical data for the feeder modules
435
10.2.9 44 mm S module (80F
4
)
10

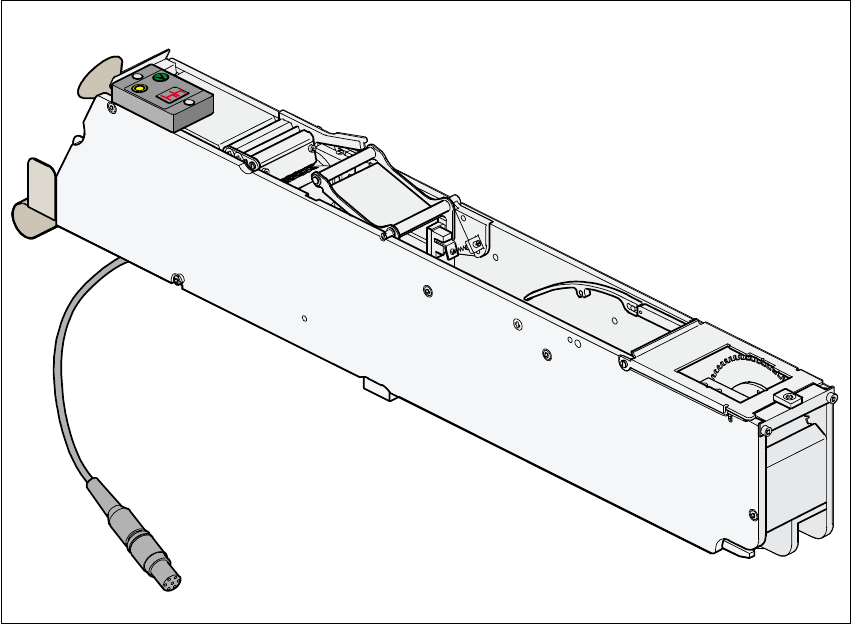

Fig. 10.2 - 9 44 mm S module
Item no. 00141094-xx
Width 60 mm
Tracks per module 1
Maximum number of modules 2 x 10
Magazine capacity for 7" reels Approx. 2000
Reel diameter Up to 381 mm
Feeding stroke (variable) 4 to 44mm (in 4 mm increments)
Cycle time 60 ms ± 5 ms for a feeding interval of 8 mm
Main power supply 30 VDC
10 Component handling SIPLACE 80S-20/F4 User Manual
10.2 Technical data for the feeder modules Software version SR.407.xx 01/2001 US Edition
436
10.2.10 56 mm S module (80F
4
)
10

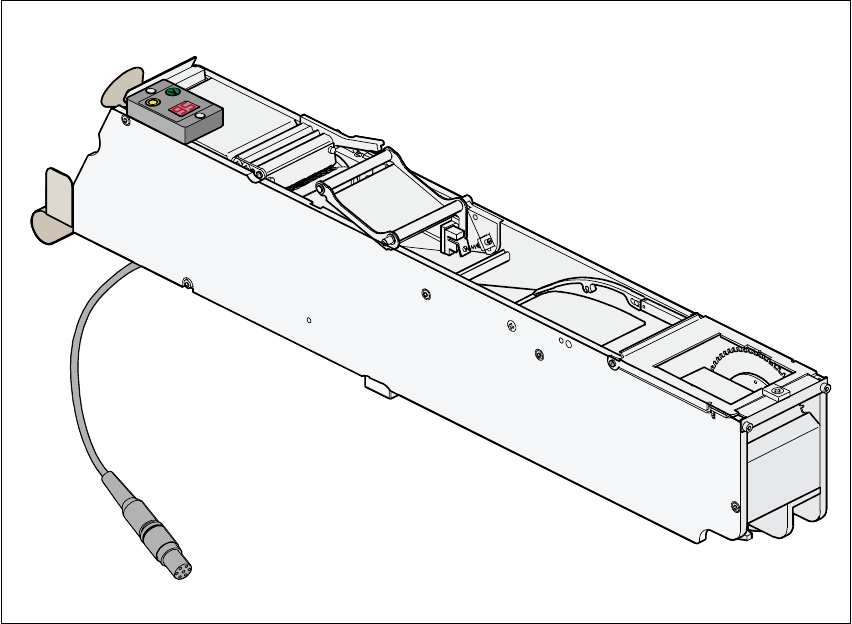

Fig. 10.2 - 10 56 mm S module
Item no. 00141095-xx
Width 75 mm
Tracks per module 1
Maximum number of modules 2 x 8
Magazine capacity for 7" reels Approx. 2000
Reel diameter Up to 381 mm
Feeding stroke (variable) 4 to 56mm (in 4 mm increments)
Cycle time 60 ms ± 5 ms for a feeding interval of 8 mm
Main power supply 30 VDC
