10 Component handling SIPLACE 80S-20/F4 User Manual
10.3 Setting up the feeder modules Software version SR.407.xx 01/2001 US Edition
442
10

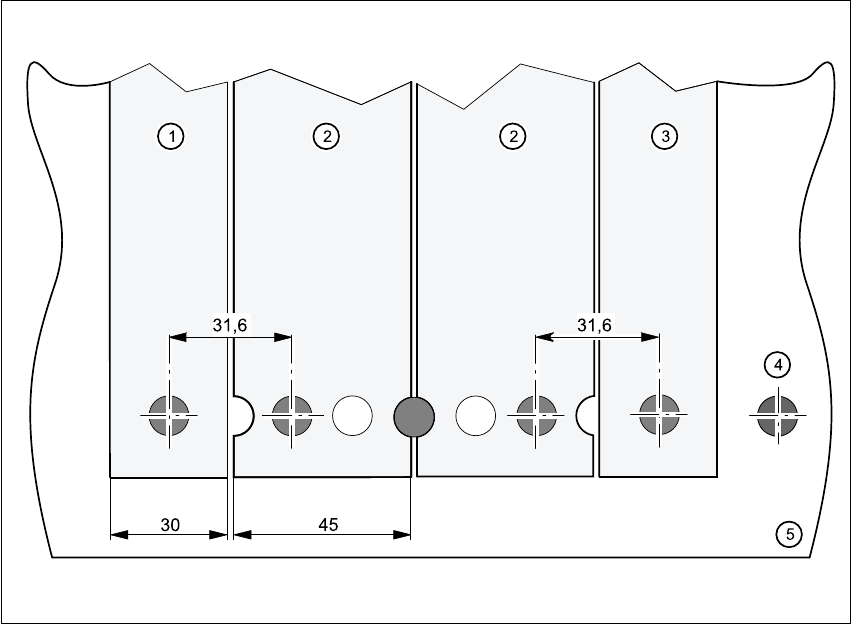

Fig. 10.3 - 1 Inserting 30 or 45 mm wide feeder modules on the component table
(1) Feeder module, 30 mm wide
(2) Feeder module, 45 mm wide
(3) Feeder module, 30 mm wide
SIPLACE 80S-20/F4 User Manual 10 Component handling
Software version SR.407.xx 01/2001 US Edition 10.4 Tape container
443
10.4 Tape container
10.4.1 Overview
Reels up to 15" in diameter may be used, although for 15" reels you should use spindles as well.
Insert the spindles into the partitions as shown in Fig. 10.4 - 1
. 10
PLEASE NOTE 10
We recommend that you use spindles if the tape reel diameter exceeds 5". This will ensure that
the feeder modules operate reliably. 10

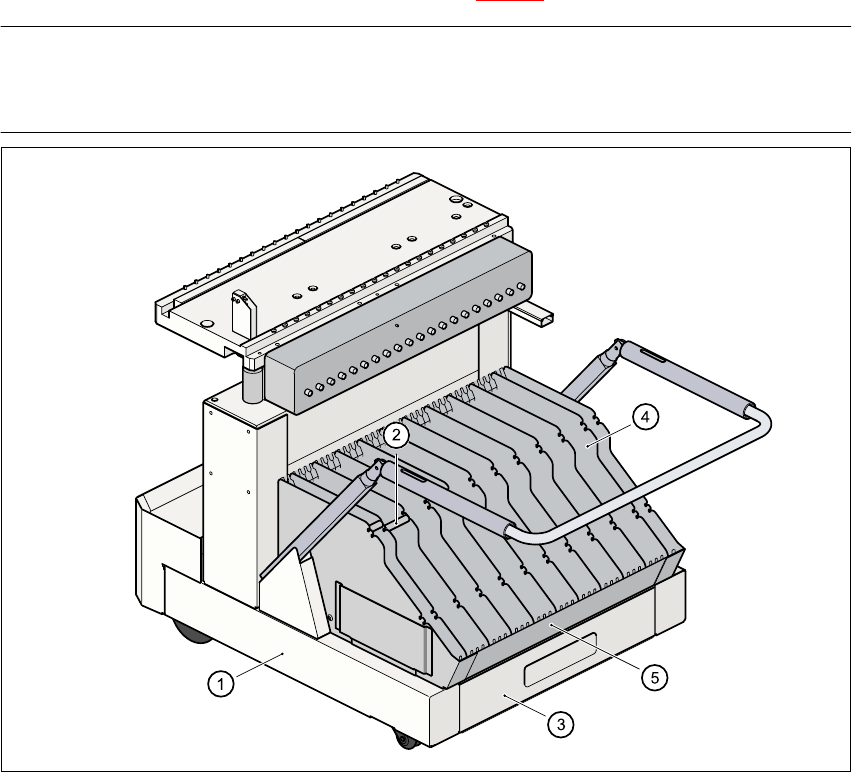

Fig. 10.4 - 1 Component table and tape container
(1) Component changeover table (2) Spindle
(3) Waste tape container (4) Partition
(5) Tape container 10
10 Component handling SIPLACE 80S-20/F4 User Manual
10.5 Used tape cutter Software version SR.407.xx 01/2001 US Edition
444
10.5 Used tape cutter
10.5.1 General
The placement system has a used tape cutter at each of the two component table locations. It is
used to cut off the waste tape. The cut pieces of tape drop into the waste tape container in the
component table. 10
Å Empty the waste tape container every day.

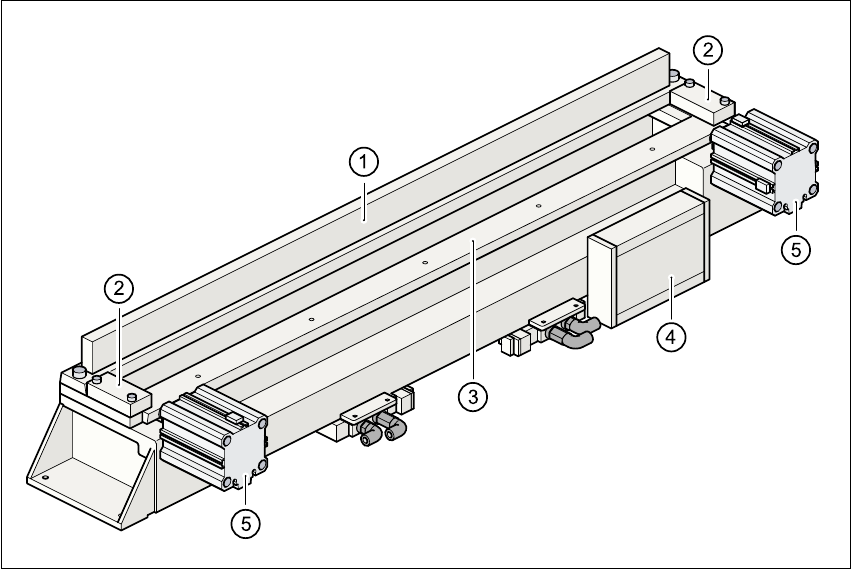

Fig. 10.5 - 1 Used tape cutter
(1) Stationary cutting blade
(2) Retainer
(3) Moving cutting blade
(4) Electronic control unit
(5) Short stroke cylinder
