SIPLACE 80S-20/F4 User Manual 10 Component handling
Software version SR.407.xx 01/2001 US Edition 10.7 Wafflepack Changer (80F4)
457
10.7.7 Refilling the Wafflepack Changer
NOTE
The trays with the item numbers 00132110-04 (old) or 00116 431-xx (new) can both be used. How-
ever the two types cannot be used together: in other words, only trays of exactly the same type
can be used at one time in the set-up. 10
– The wafflepack changer can be refilled without the machine having to stop.
– It is possible to approach and quit the filling position of the wafflepack changer even while
placement is in progress. In this connection see also Section 4.3.5
of this user’s manual.
– In the Feeders menu and in its submenu "Wafflepack changer" those functions are described
which can be performed using the wafflepack changer.
– If a wafflepack changer is physically installed and wired up to the corresponding location it will
be possible to approach and quit under Single functions even when there is no corresponding
set-up. It is not possible to input the fill level.
– If refilling is carried out with a different set-up during the course of placement, the fill levels will
have to be communicated to the station afterwards (after transmission of the corresponding
set-up).
– Checking the magazine carrier assignments after quitting the refill position will be carried out
against the current set-up obtaining at the station. If refilling has already been carried out for a
subsequent set-up, the information in response to the request may not agree with the future
set-up.
10.7.8 System Behavior in Fault Situations
– If the refill position is selected during pick-up or when a magazine carrier is being changed, the
request will be rejected with the message "Wafflepack changer currently being processed".
Once the pick-up has been completed it will still be necessary to reselect the menu item Go to
refill position.
– If the placement head accesses the wafflepack changer while it is in the refill position, the
placement sequence will be suspended until after the status message 'Waiting for wafflepack
changer refill position to be quit' has been issued and refilling of the wafflepack changer has
been finished by the operator.
– If the operator selects any other wafflepack changer function, apart from Quit refill position,
while the changer is still in the refill position, the request will be refused with the message Waf-
flepack changer in refill position. The same will apply with Quit refill position if the changer is
not actually in the refill position.
– If a wafflepack changer function is selected for a location where there is no wafflepack changer
then this will be refused after a 10 sec timeout with the message "No wafflepack changer at
this location".
10 Component handling SIPLACE 80S-20/F4 User Manual
10.7 Wafflepack Changer (80F4) Software version SR.407.xx 01/2001 US Edition
458
10.7.9 Fitting the Wafflepack Changer
Å Before moving the WPC into the machine, remove the upper part of the camera of the compo-
nent vision module.
NOTE
The wafflepack changer can be moved into and out of the machine on its wheels, but it should be
noted that these wheels are not suitable for moving the wafflepack changer over longer distances.
DANGER OF OVERTURNING! In such cases use the suitable lift truck (from item no. 00123141-
01). 10
Å Move the wafflepack changer carefully into the desired location in the machine.The docking
pins of the wafflepack changer must be located above the docking slots of the SIPLACE ma-
chine.
Å Check the dimension (87 ± 0.5 mm) between lower edge of tray and top of component table
(see Fig. 10.7 - 5
).
SIPLACE 80S-20/F4 User Manual 10 Component handling
Software version SR.407.xx 01/2001 US Edition 10.7 Wafflepack Changer (80F4)
459
10

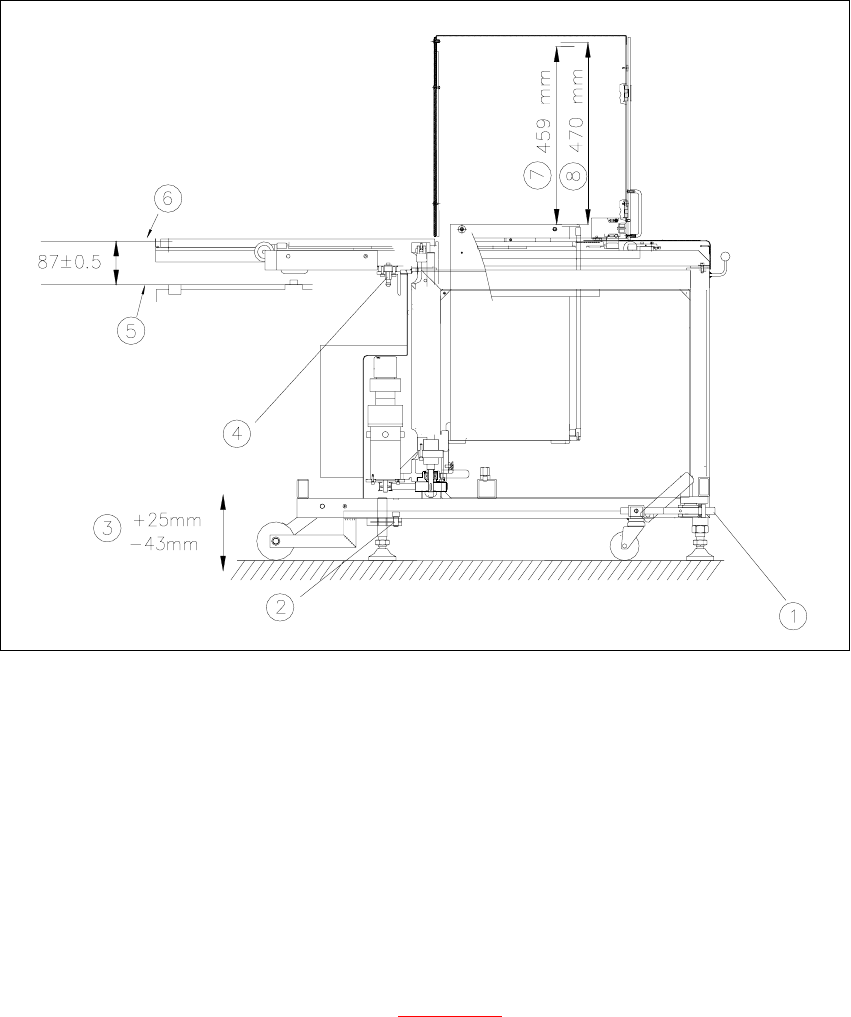

Fig. 10.7 - 5 Aligning the wafflepack changer
(1) With socket wrench UP/DOWN
(2) Clamping screw
(3) Stroke
(4) Docking pin
(5) Upper edge of the magnetic bar of the component table
(6) Lower edge of tray
(7) Nominal stroke (459 mm)
(8) Refill position (470 mm)
Å Undo the clamping screws at the feet (see Fig. 10.7 - 5) and using a 10 mm ball socket wrench
rotate the wafflepack changer downwards until the docking pin engages. The wafflepack
changer must at this point be aligned using the machine spirit level fitted to the wafflepack
changer.
Å Tighten up the clamping screws and check the machine spirit level again.
Å Reinstall the upper part of the camera on the component vision module.
