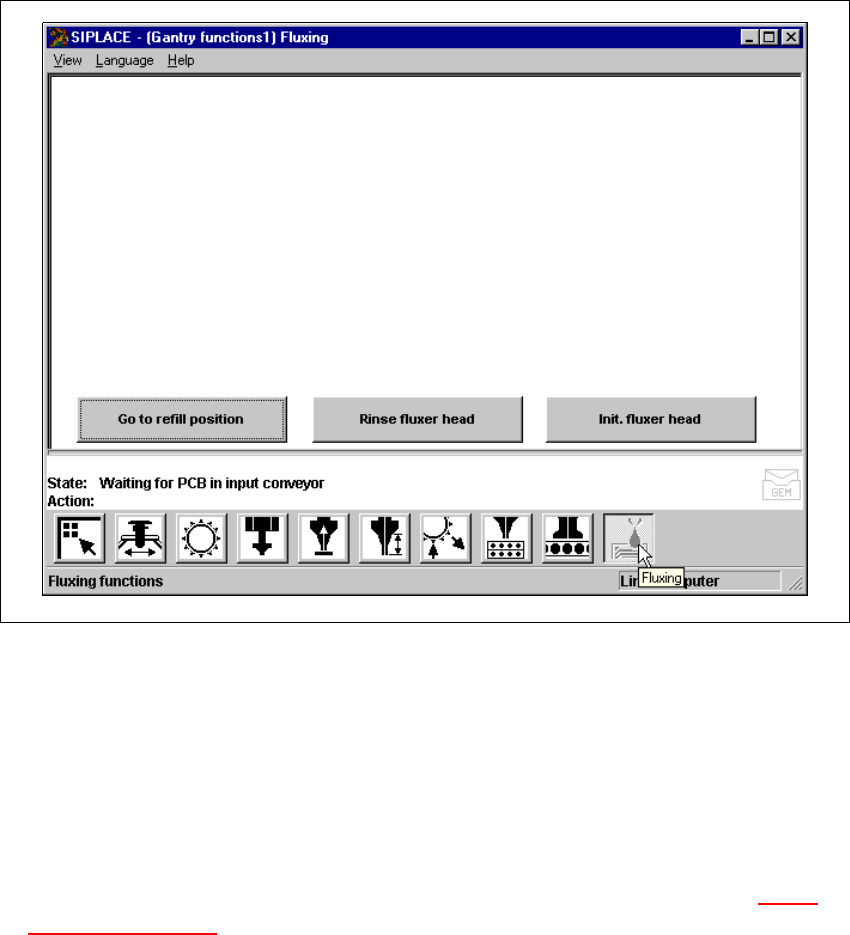

Fig. 11.9 - 12 Gantry functions

(1) Buttons for the fluxing single functions (flux)

Go to refill position: 11

To change the syringe, you must first move the syringe piston to its bottom position, and move the

machine into a suitable position (refill position). 11

Å Click on the Go to refill position button. The fluxer head will move to the refill position, and

the syringe piston will move down. The syringe can then be changed. See Section 11.9.5

Changing the syringe.

The fluxer head must be moved to the refill position before any work is carried out on it. The flux

must be refilled in this position. 11

Å Click on the Go to refill position button, and press the Start button. The fluxer head will move

to the refill position.

SIPLACE 80S-20/F4 User Manual 11 Station extensions /Hardware

Software version SR.407.xx 01/2001 US Edition 11.9 Flux dispenser unit

521

Rinse fluxer head: 11

The fluxer head can be rinsed to remove flux residues or air bubbles from the dispensing hose,

for example. This will prevent the dispensing hose and centering nozzle from hardening, or air

bubbles causing fluxing errors. 11

Å Click on the Rinse fluxer head button, and press the Start button. The fluxer head will move

over the rinsing tank, and dispense the syringe contents into the rinsing tank.

The rinsing tank is beside the component reject bin (see Fig. 11.9 - 10

Initialize fluxer head: 11

It is possible to carry out a fluxer head reference run. 11

Å Click on the Init. fluxer head button, and press the Start button. The fluxer head will carry out

a reference run.

11 Station extensions /Hardware SIPLACE 80S-20/F4 User Manual

11.10 PCB data transfer Software version SR.407.xx 01/2001 US Edition

522

11.10 PCB data transfer

11.10.1 Functional description

The ‘PCB data transfer’ option has been included in the ‘Machine options’ menu. The aim of this

function is to increase the line performance of your placement system by fully measuring a PCB

at the first placement machine, determining the associated fiducial, subpanel, ink spot, etc, data,

saving this data and then sending it to the next machine. At the next machine, it is then only nec-

essary to determine the data for two fiducial positions. These two fiducial positions are then used

to correct the position of each subsequent machine for the PCB to be placed. It is thus not neces-

sary to measure the entire PCB, together with its subpanels, ink dots, etc. 11

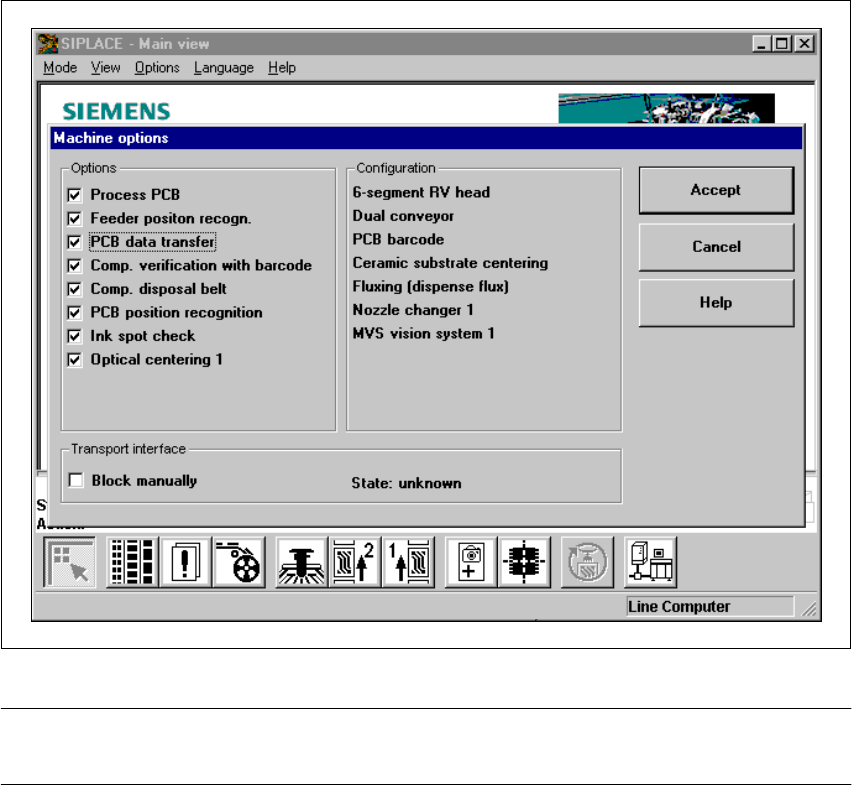

Fig. 11.10 - 1 Machine option: PCB data transfer

PLEASE NOTE: The PCB data transfer function can only be used if a PCB barcode reader is in-

stalled. 11
