SIPLACE 80S-20/F4 User Manual 2 Operational Safety

Software version SR.407.xx 01/2001 US Edition 2.2 Safety equipment

2.2 Safety equipment

2.2.1 Protective covers

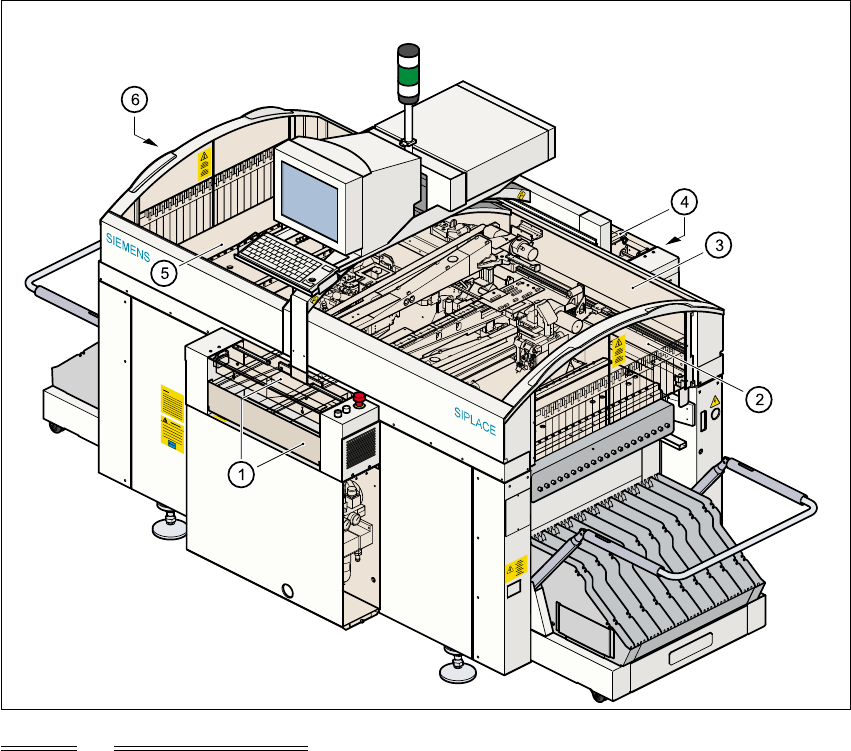

Fig. 2.2 - 1 SIPLACE safety equipment

(1) Cover and guard on the input conveyor

(2) Safety panels, righthand side

(3) Protective cover

(4) Cover and guard on the output conveyor

(5) Protective cover

(6) Safety panels, lefthand side

2 Operational Safety SIPLACE 80S-20/F4 User Manual

2.2 Safety equipment Software version SR.407.xx 01/2001 US Edition

2.2.1.1 General

The gantry positioning range is covered by two protective covers. If you want to open the protec-

tive covers, first press the Stop button (item 1 in Fig. 2.2 - 2

) or the emergency stop mushroom-

head push-button (item 2 in Fig. 2.2 - 2

). The power to the gantry axes will be switched off and the

gantries will stop immediately. 2

If you open one of the protective covers or a guard on the incoming or outgoing conveyor, the

power to the gantry axes will be switched off and they will stop immediately. 2

If the key switch is closed (position I), you can continue to pace the star at reduced speed while

the protective covers are open. 2

Placement will stop if you press the emergency stop button. You can then either cancel or continue

placement of the PCB. The protective covers at the sides can be opened in order to refill with com-

ponents when the machine has stopped. 2

WARNING

The protective covers must only be opened, with the key switch closed (position I), by appropri-

ately qualified and trained personnel. 2

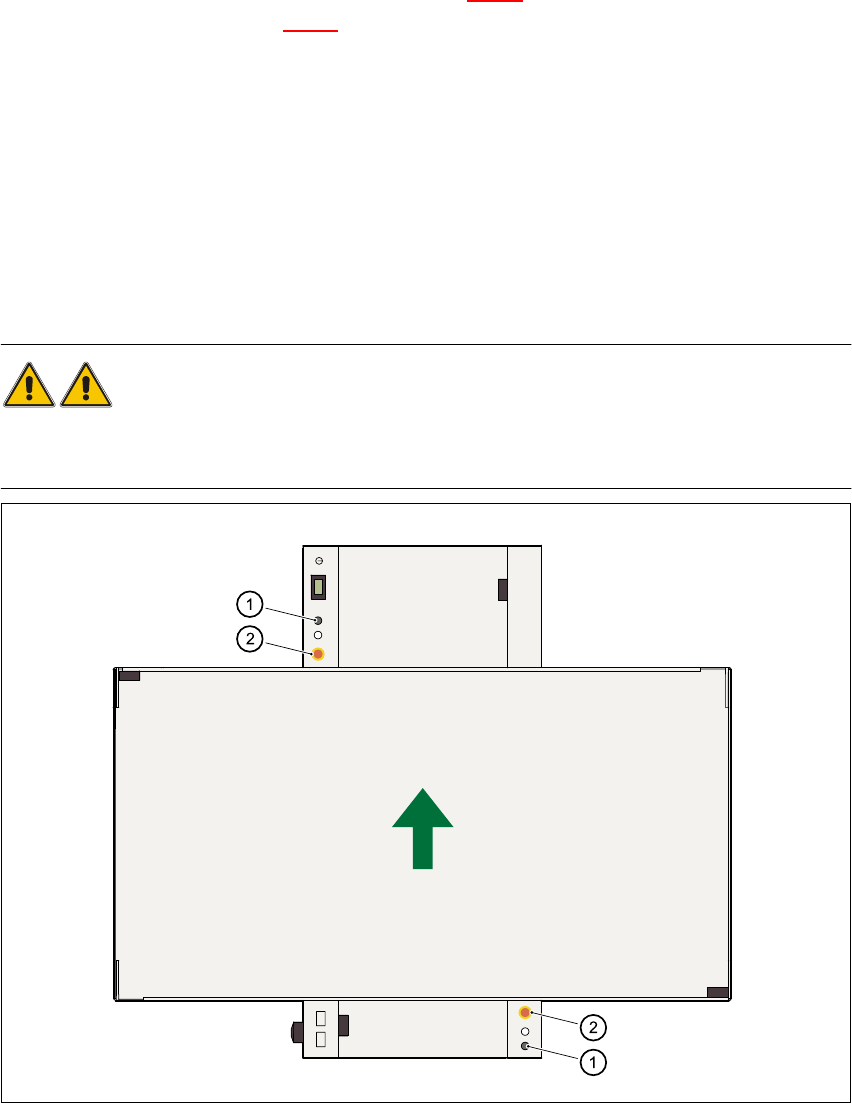

Fig. 2.2 - 2 Stop and emergency stop mushroom-head push-buttons

(1) Stop button (2) EMERGENCY-STOP mushroom-head push-button 2

SIPLACE 80S-20/F4 User Manual 2 Operational Safety

Software version SR.407.xx 01/2001 US Edition 2.2 Safety equipment

2.2.2 Guard on the input / output conveyor

DANGER

The guard must always be set to the height of the PCB to be processed. Ensure that the gap be-

tween the guard and the safety bar is as small as possible. 2

Guards are fitted on the input and output belts of the PCB conveyor. 2

The height of the guard must be set using the slots so that the processed PCB can travel through.2

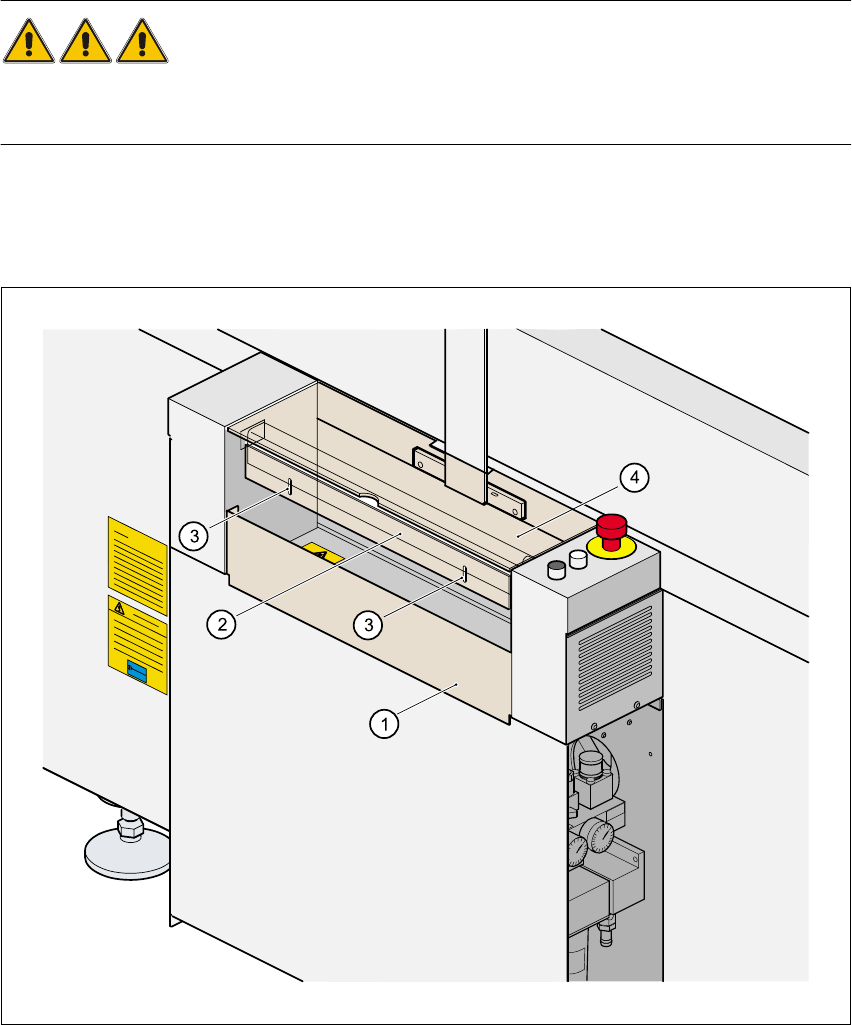

Fig. 2.2 - 3 Guard on SIPLACE machines

(1) Safety bar (fixed) (2) Guard (adjustable) 2

(3) Slots for adjusting the height (4) Cover 2
