MODEL TCM-X1 10M 0404-001 216 カバー部 COVER SECTION Fig. MA-10 前面操作パネル Front Operation Panel …
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110M
0404-001
215
MA-9
801 411 113 9109 SCR TRS 5X10 4 818MA-010-801
802 630 103 2733 PLATE 1 818MA-010-802
803 630 098 7430 MECH PARTS(ROTARY DAMPER) 2 818MA-010-803
804 411 051 1708 SCR TRS 4X6 4 818MA-010-804
805 630 097 6861 MECH PARTS(PUSH LATCHES) 2 818MA-010-805
806 411 034 7208 SCR FLT 3X8 4 818MA-010-806
807 630 110 6601 ASSY,SWITCH,KEYBOARD 1 818MA-010-807
807 -01 630 105 3509 COVER(U-KEYBOARD) 1
807 -02 630 105 3516 COVER(B-KEYBOARD) 1
807 -03 630 101 1349 BUSH,LOCATE 2
807 -04 630 103 1835 HOLDER 1
807 -05 630 097 7165 HINGE(DUMPER HINGE) 1
807 -06 630 000 7749 BOLT,HEX-SCT 2
807 -07 411 141 6705 WASHER SPR 5 2
807 -08 411 141 4107 WASHER V 5X10X1 2
807 -09 630 013 8986 MECH PARTS(RUBBER CUSHION 2
807 -10 630 106 4802 SHEET 1
807 -11 411 040 6202 SCR PAN 3X10 4
807 -12 411 086 4408 WASHER SPR 3 8
807 -13 411 119 1909 WASHER V 3X7X0.5 8
807 -14 411 041 8908 SCR PAN 3X6 4
807 -15 630 122 6989 SWITCH,KEYBOARD 1 #NC-02
817 630 102 4912 SUPPORT(L) 1 818MA-010-817
818 630 102 4929 SUPPORT(R) 1 818MA-010-818
819 630 101 0885 COVER 2 818MA-010-819
820 630 100 9254 GUIDE,SLIDE 2 818MA-010-820
821 411 147 6808 SCR TRS 3X5 8 818MA-010-821
823 630 000 7626 BOLT,HEX-SCT 2 818MA-010-823
824 630 105 3554 CLAMP(BALL CATCHERS) 2 818MA-010-824
825 411 002 2600 SCR FLT 3X6 4 818MA-010-825
826 411 108 7103 SCR FLT 3X10 4 818MA-010-826
MODEL TCM-X110M
0404-001
216

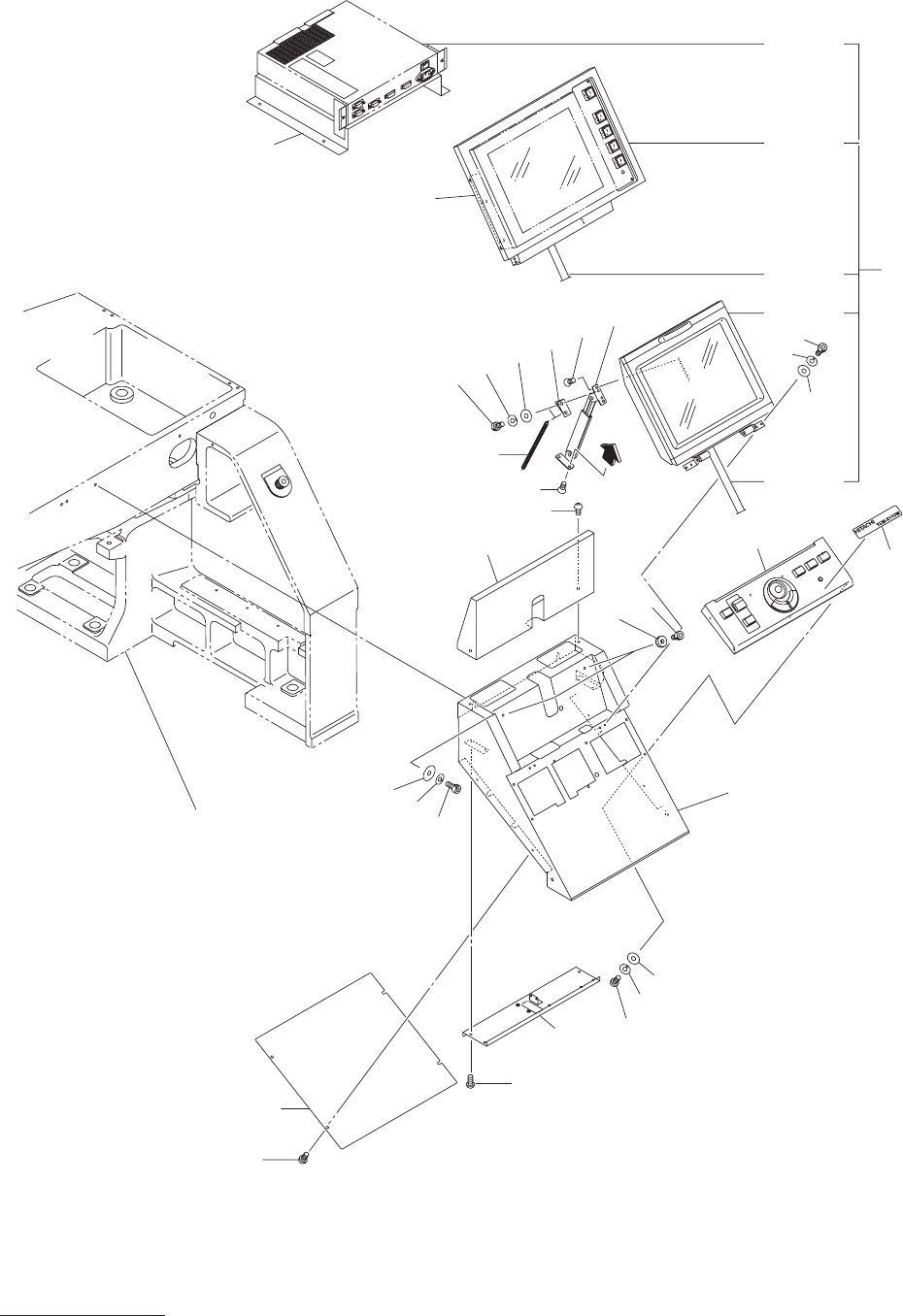

カバー部
COVER SECTION
Fig. MA-10
前面操作パネル
Front Operation Panel
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110M
0404-001
217
MA-10
901 630 120 3812 COVER(PANEL) 1 818MA-010-901
902 630 110 6663 ASSY,UNIT,DISPLAY 1 818MA-010-902
902 -01 630 110 6618 UNIT,DISPLAY(FRONT) 1
902 -02 630 110 6632 CORD(3M) 1
902 -03 630 110 6656 UNIT,DISPLAY(REAR) 1
902 -04 630 110 6649 CORD(5M) 1
902 -05 630 110 6625 UNIT,DRIVER(CONTROLLER) 1
903 630 120 3829 COVER 1 818MA-010-903
904 630 109 6346 SWITCH,KEYBOARD(JOYSTICK) 1 SPB1,LED1,SPB10(LED10),SPB11,
LED11,SPB12(LED12),SPB13(LED13)
SW3,#LE-0100-03 818MA-010-904
905 630 120 3836 COVER 1 818MA-010-905
906 630 120 3843 STAY 1 818MA-010-906
907 630 109 6919 BRACKET 1 818MA-010-907
908 630 110 1767 MECH PARTS(STAY) 1 818MA-010-908
909 630 110 6120 SPRING,TENSION 2 818MA-010-909
911 411 141 2905 WASHER SPR 4 6 818MA-010-911
912 411 141 4008 WASHER V 4X9X0.8 6 818MA-010-912
913 630 106 5670 MECH PARTS(URETHANS) 2 818MA-010-913
914 630 000 7725 BOLT,HEX-SCT 2 818MA-010-914
918 630 000 7626 BOLT,HEX-SCT 4 818MA-010-918
919 411 042 0703 SCR PAN 3X8 7 818MA-010-919
920 411 086 4408 WASHER SPR 3 7 818MA-010-920
921 411 119 1909 WASHER V 3X7X0.5 7 818MA-010-921
922 411 140 8007 SCR TRS 5X6 2 818MA-010-922
923 411 140 7208 SCR FLT 4X6 2 818MA-010-923
924 411 051 1708 SCR TRS 4X6 8 818MA-010-924
925 630 000 7879 BOLT,HEX-SCT 2 818MA-010-925
926 411 141 3001 WASHER SPR 6 2 818MA-010-926
927 630 001 0237 WASHER 2 818MA-010-927
928 630 127 1163 NAME PLATE,PARTS 1 818MA-010-928
936 630 000 7633 BOLT,HEX-SCT 2 818MA-010-936
937 411 035 2707 SCR FLT 4X8 2 818MA-010-937
