MODEL TCM-X1 10M 0405-001 232 フィーダキャリッジカバー Feeder Carriage Cover Fig. MC-3 前側カバーフレーム Front Side Cover Frame                              …

MEMO

MODEL TCM-X110M

0405-001

232

フィーダキャリッジカバー

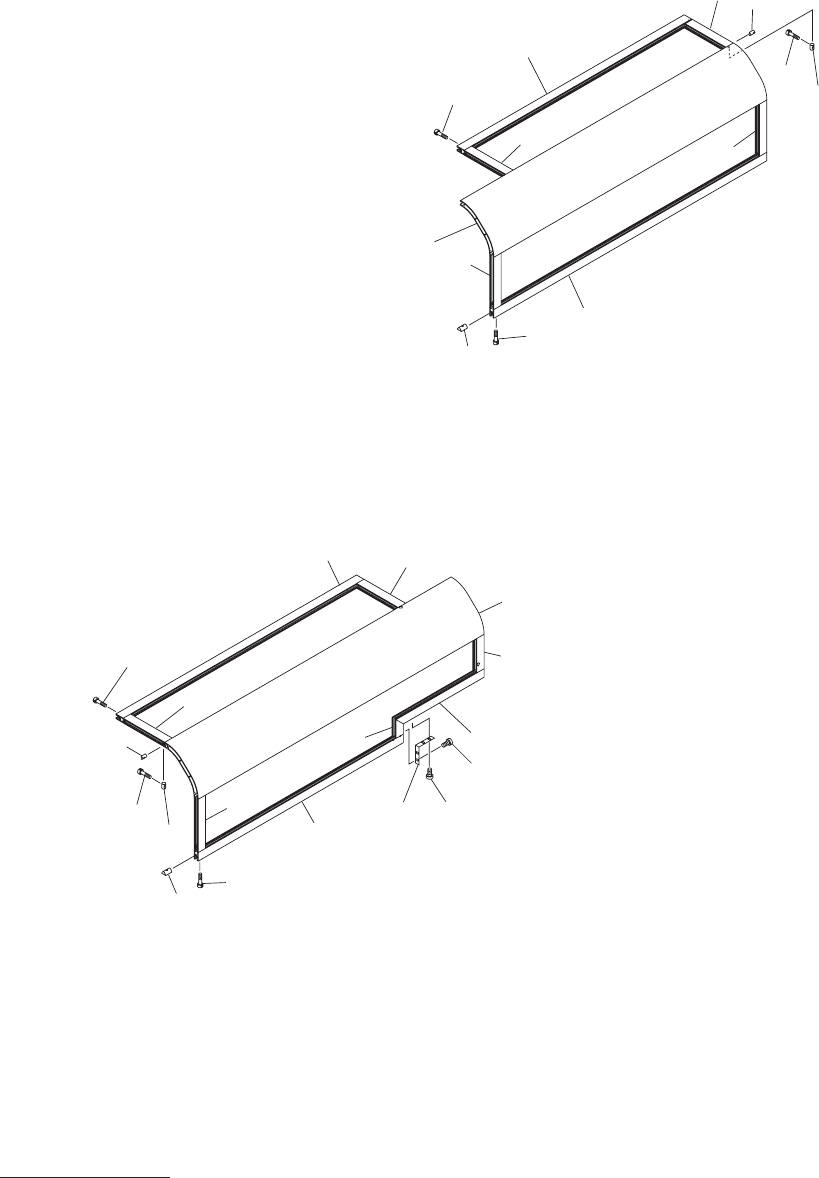

Feeder Carriage Cover

Fig. MC-3

前側カバーフレーム

Front Side Cover Frame





























































Key No. PART No. PART NAME Q’ty REMARKS

NOTE

MODEL TCM-X110M

0405-001

233

MC-3

201 630 130 4151 MECH PARTS(FRAME) 1

202 630 130 4168 MECH PARTS(FRAME) 1

207 630 130 4175 MECH PARTS(FRAME) 1

208 630 130 4182 MECH PARTS(FRAME) 1

211 630 119 1683 MECH PARTS(FRAME) 2

212 630 119 1690 MECH PARTS(FRAME) 2

221 630 130 4199 MECH PARTS(FRAME) 1

222 630 130 4205 MECH PARTS(FRAME) 1

231 630 130 4212 MECH PARTS(FRAME) 1

232 630 130 4229 MECH PARTS(FRAME) 1

234 630 130 4236 MECH PARTS(FRAME) 1

235 630 130 4243 MECH PARTS(FRAME) 1

236 630 123 8128 MECH PARTS(FRAME) 1

252 630 130 4250 MECH PARTS(FRAME) 1

261 630 123 8142 MECH PARTS(BRACKET) 1

275 630 130 2324 MECH PARTS(NUT) 8

279 630 098 2008 MECH PARTS(NUT) 8

281 630 103 4256 NUT 12

284 630 000 7794 BOLT,HEX-SCT 9

285 630 000 7749 BOLT,HEX-SCT 4

291 630 000 7909 BOLT,HEX-SCT 8
