MODEL TCM-X1 10M 0405-001 248 200V 電源部１ 200V POWER SUPPL Y SECTION 1 Fig. RC-4 200V 電源４ 200V Power Supply 4
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110M
0405-001
247
RC-3
251 630 127 0913 TERMINAL 9 818RC-010-251
252 630 127 0968 ACCESSORY,WIRING 1 818RC-010-252
253 630 127 1019 ACCESSORY,WIRING 3 818RC-010-253
254 630 091 1749 BRACKET,WIRING 4 818RC-010-254
255 630 058 8460 ACCESSORY,WIRING 2 818RC-010-255
256 630 127 0937 TERMINAL 12 818RC-010-256
257 630 127 0975 ACCESSORY,WIRING 1 818RC-010-257
258 630 127 0999 ACCESSORY,WIRING 3 818RC-010-258
260 630 083 5601 ACCESSORY,WIRING 1 818RC-010-260
261 630 127 0944 TERMINAL 1 818RC-010-261
262 630 116 8821 FILTER,NOISE 1 ZNF2 818RC-010-262
263 630 049 2125 RELAY 1 K63 818RC-010-263
264 630 007 3911 TIMER 1 KT6 818RC-010-264
265 630 000 4144 SOCKET 2 818RC-010-265
266 630 000 1020 BRACKET,WIRING 1 818RC-010-266
267 630 000 1037 BRACKET,WIRING 1 818RC-010-267
297 411 113 1400 SCR PAN 4X6 4 818RC-010-297
298 411 008 1706 WASHER SPR 4 4 818RC-010-298
299 411 119 2104 WASHER V 4X9X0.8 4 818RC-010-299
MODEL TCM-X110M
0405-001
248
200V
電源部１
200V POWER SUPPLY SECTION 1

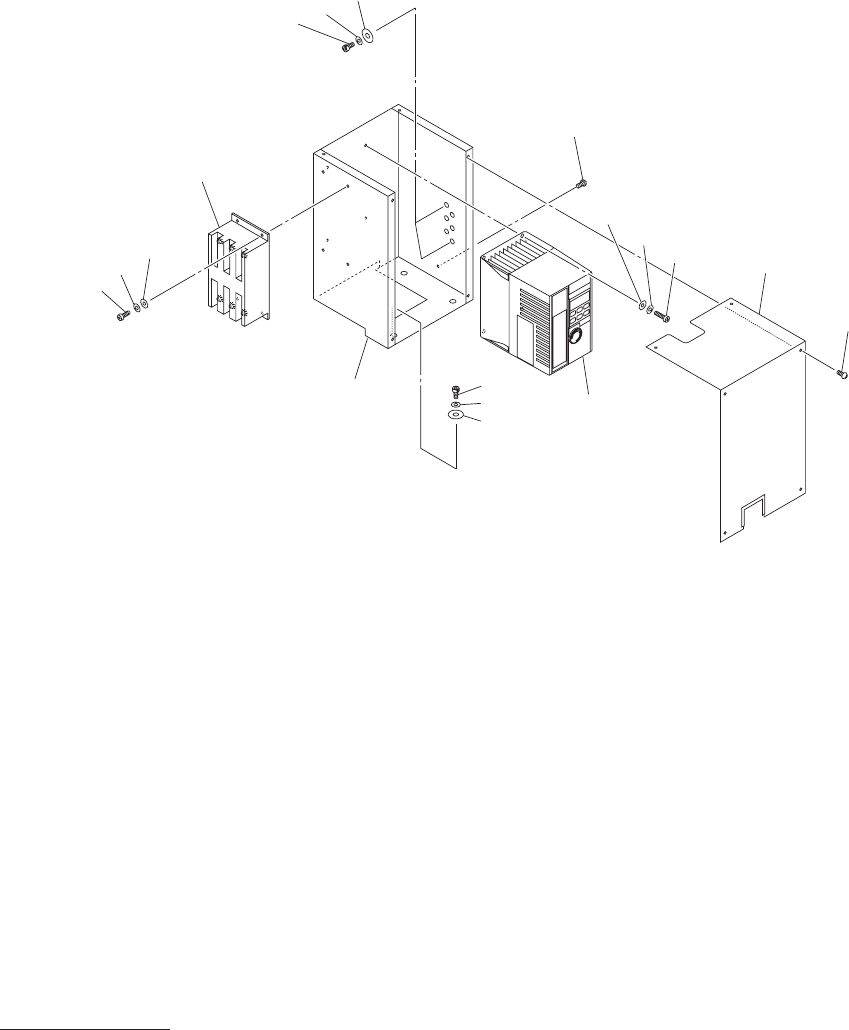

Fig. RC-4 200V
電源４
200V Power Supply 4
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110M
0405-001
249
RC-4
351 630 124 5690 BRACKET 1 818RC-010-351
352 630 116 8814 FILTER,NOISE 1 ZNF3 818RC-010-352
353 630 116 3123 UNIT,DRIVER 1 FVR0.75C11S-2 818RC-010-353
354 630 120 7001 COVER 1 818RC-010-354
389 411 114 7807 SCR PAN+SW+W 4X10 1 818RC-010-389
390 411 051 1708 SCR TRS 4X6 6 818RC-010-390
391 630 000 7619 BOLT,HEX-SCT 2 818RC-010-391
392 411 141 2905 WASHER SPR 4 2 818RC-010-392
393 630 001 0213 WASHER 2 818RC-010-393
394 411 113 1400 SCR PAN 4X6 8 818RC-010-394
395 411 008 1706 WASHER SPR 4 8 818RC-010-395
396 411 119 2104 WASHER V 4X9X0.8 8 818RC-010-396
397 630 000 7756 BOLT,HEX-SCT 3 818RC-010-397
398 411 141 6705 WASHER SPR 5 3 818RC-010-398
399 630 001 0220 WASHER 3 818RC-010-399
