1 Detailed Circuit Diagr ams 39 LP10-F 5HM PCB conveyo r 1, flu xing optio n, ramp c ontrol nderun g Zu stand Datum CAD-Datei : LP10-F5HM.DW G Urspr./ Ers.f./Ers.d . Norm Name Gepr. Strom laufpla n/Circu it di agra m PL …
1 Detailed Circuit Diagrams 38

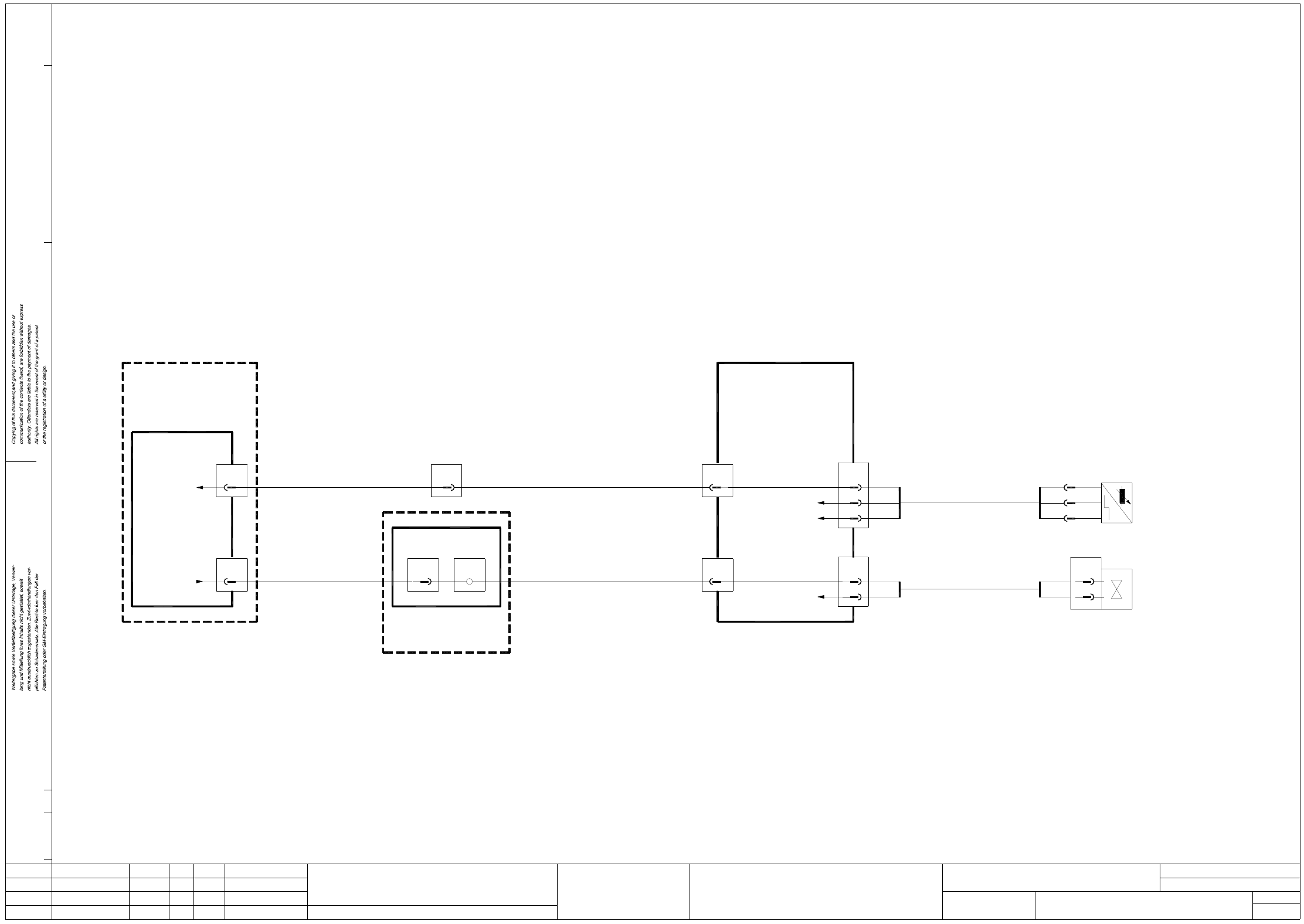

LP09-F5HM PCB conveyor 2, ceramic substrate centering
AenderungZustand Datum
CAD-Datei : LP9-F5HM.DWG
Urspr./Ers.f./Ers.d.NormName
Gepr.
Stromlaufplan/Circuit diagram
PL EA
Mat.-Nr. :
Beab. Hi
Datum 08.01.2001
SIEMENS
Sh.
Sh.
SMD Placement System SIPLACE F5 HM
1
1
PCB conveyor 2
Ceramic substrate centering
(Cable)
00345486-xx
Conversion board
00325581-xx
’dual conveyor’
6
2
br
X49
GND
+24VDC
6
3
bl
br
2
X47
bk
12
Terminal panel
left-hand side
00344266-xx
X4’
X1ki
12
12
8
A6
X5kiX3sg
12
X4sg
00345485-xx
(Cable)
Port A6.7
Port E5.7
00345179-xx
Control unit
X13
12
X14
12
00329284-xx
(Cable)
00326068-xx
(Cable)
bl
rd-bl
Sensor switch
Valve, ceramic substrate centering 2
Ceramic substrate centering 2
Ceramic substrate
Sensor switch
bk
GND
br
bl -
+
bk A1
(Cable)
00326051-xx
B1
2
1
X40
br
wh
00326049-xx
Valve
centering 2
centering 2
Ceramic substrate
1 Detailed Circuit Diagrams 39

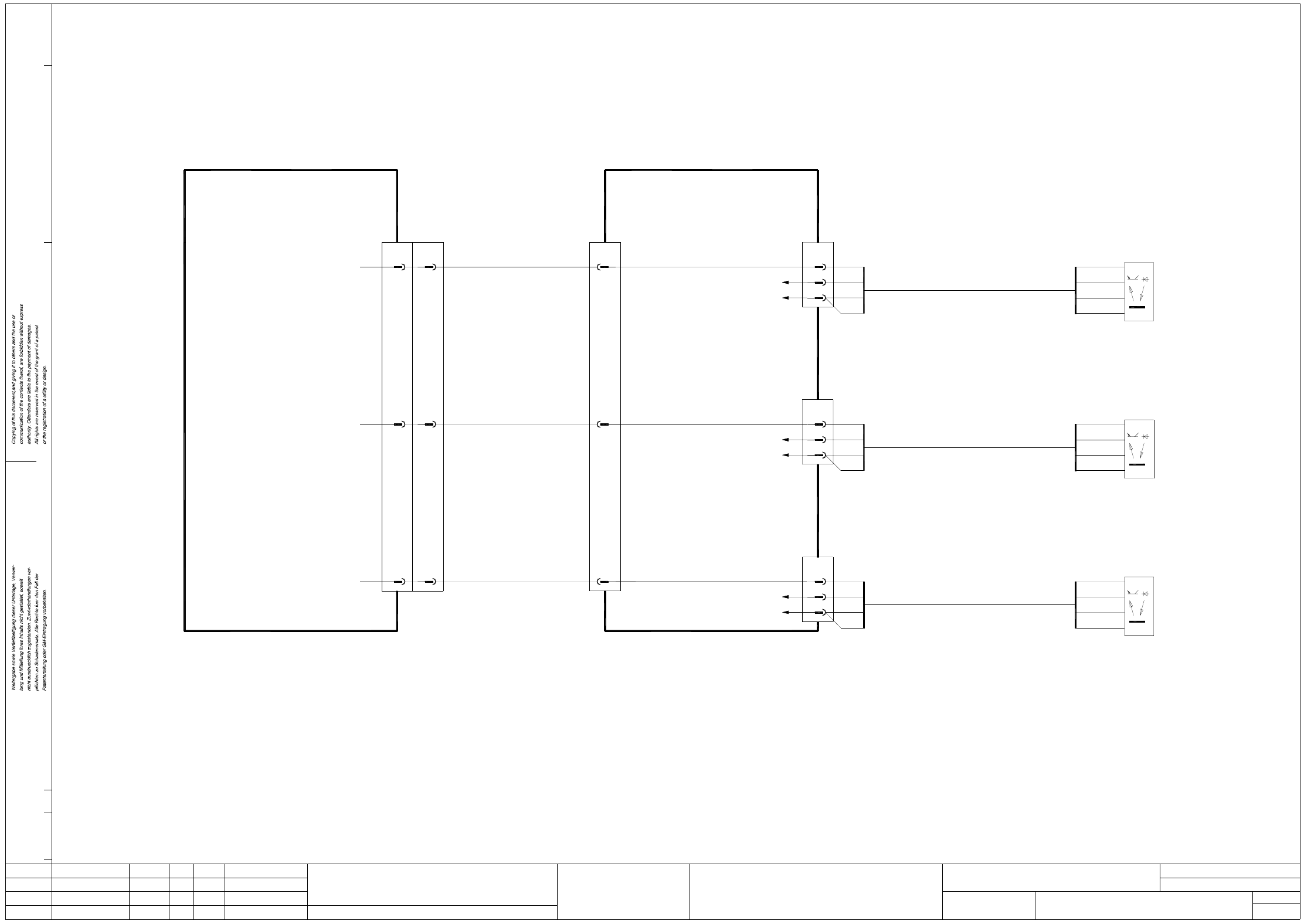

LP10-F5HM PCB conveyor 1, fluxing option, ramp control
nderungZustand Datum
CAD-Datei : LP10-F5HM.DWG
Urspr./Ers.f./Ers.d.NormName
Gepr.
Stromlaufplan/Circuit diagram
PL EA
Mat.-Nr. :
Beab. Hi
Datum 08.01.2001
SIEMENS
Sh.
Sh.
SMD Placement System SIPLACE F5 HM
1
1
PCB conveyor 1
Fluxing option
(Cable)
00331297-01
(ramp control, fluxing)
Light barrier, output conveyor 1
A1
pk
bk
br
bl
Ramp control
28
+24VDC
Conversion board
X6
00325581-xx
’dual conveyor’
00330946-01
3
6
pk
br
2
bl
bk
X54
GND
+
-
25
+24VDC
GND
3
6
pk
br
bl
2
X52
bk
Light barrier, center conveyor 1
(ramp control, fluxing)
00330945-01
bl
br
pk
-
+
bk A1
+24VDC
26
GND
00330944-01
3
pk
br
X50
6
2
bl
bk
Light barrier, input conveyor 1
(ramp control, fluxing)
bl
br
-
+
pk
bk A1
X2cX1c
13a
13b
14a 28
25
26
6-channel
00325460-xx
half-bridge board
Light barrier
Input conveyor 1
Center conveyor 1
Light barrier
Light barrier
Output conveyor 1
1 Detailed Circuit Diagrams 40

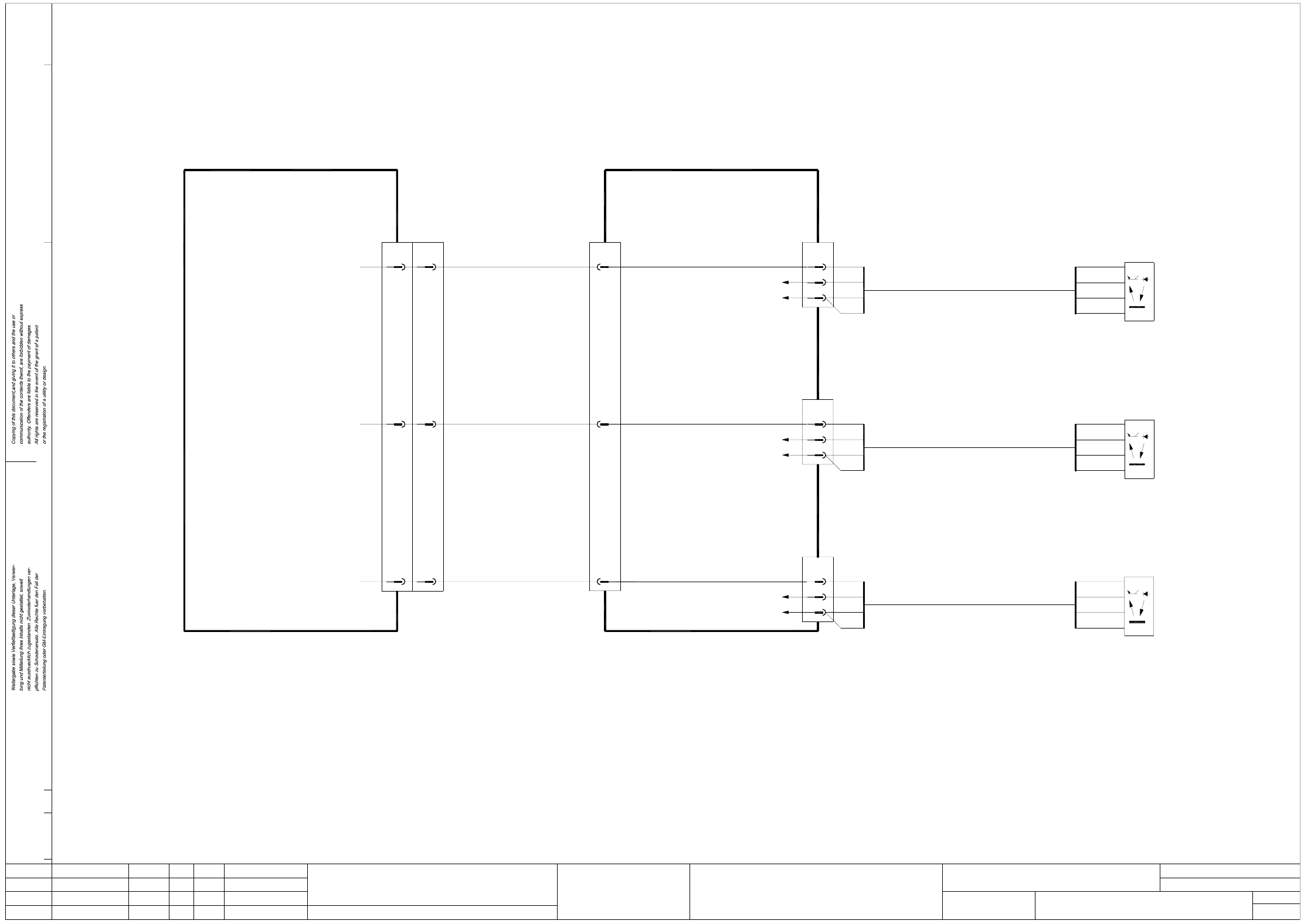

LP11-F5HM PCB conveyor 2, fluxing option, ramp control
00330949-01
3
6
pk
br
2
bl
bk
X55
GND
+
-
30
+24VDC
GND
3
6
pk
br
bl
2
X53
bk
Light barrier, center conveyor 2
(ramp control, fluxing)
00330948-01
bl
br
pk
-
+
bk A1
+24VDC
27
GND
00330947-01
3
pk
br
X51
6
2
bl
bk
Light barrier, input conveyor 2
(ramp control, fluxing)
bl
br
-
+
pk
bk A1
X2cX1c
14b
15a
15b 29
30
27
6-channel
00325460-xx
half-bridge board
Light barrier
Input conveyor 2
Center conveyor 2
Light barrier
Light barrier
Output conveyor 2
(Cable)
00331297-01
(ramp control, fluxing)
Light barrier, output conveyor 2
A1
pk
bk
br
bl
Ramp control
29
+24VDC
Conversion board
X6
00325581-xx
’dual conveyor’
AenderungZustand Datum
CAD-Datei : LP11-F5HM.DWG
Urspr./Ers.f./Ers.d.NormName
Gepr.
Stromlaufplan/Circuit diagram
PL EA
Mat.-Nr. :
Beab. Hi
Datum 08.01.2001
SIEMENS
Sh.
Sh.
SMD Placement System SIPLACE F5 HM
1
1
PCB conveyor 2
Fluxing option
