S20_LF4_pl - 第22页

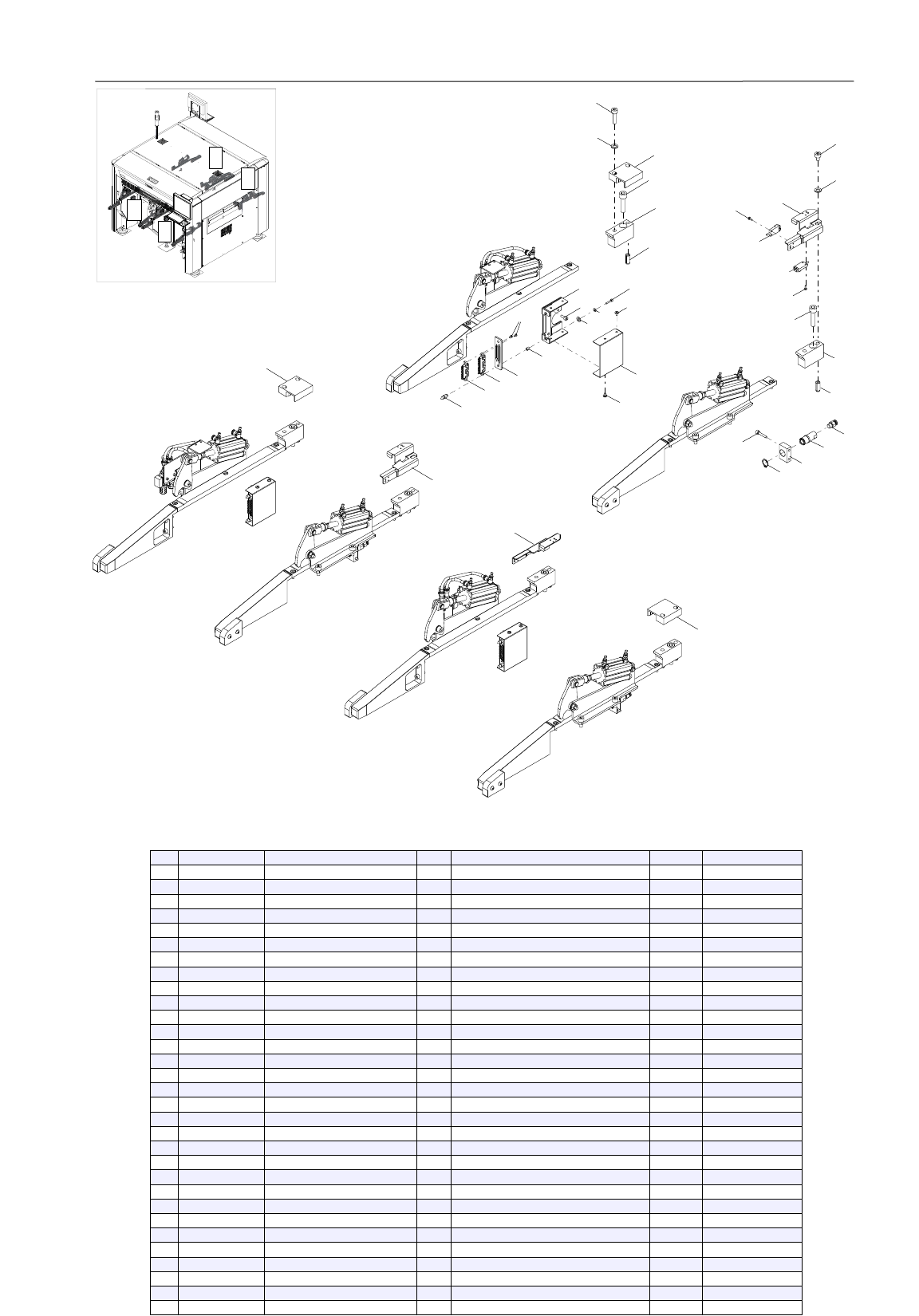

13 12 18 9 15 2 15 21 15 16 8 10 7 19 14 4 1 5 6 11 21 20 3 21 17 23 21 22 A B B C 13 12 18 9 15 2 15 21 15 16 8 10 7 19 14 4 1 5 6 11 21 20 3 21 17 23 21 22 CFB Clamp Unit (Right Side) Feeder LF4-1612 3-10 A B C NO Part…

100%1 / 67
1
18
4
6
2
16
3
17
20
18
21
2
26
27
19
3
10
30
22
28
7
9
25
12
30
13
8
19
29
11
14
23
29
5
17
15
31
28
24
A
B
B
C
1
18
4
6
2
16
3
17
20
18
21
2
26
27
19
3
10
30
22
28
7
9
25
12
30
13
8
19
29
11
14
23
29
5
17
15
31
28
24

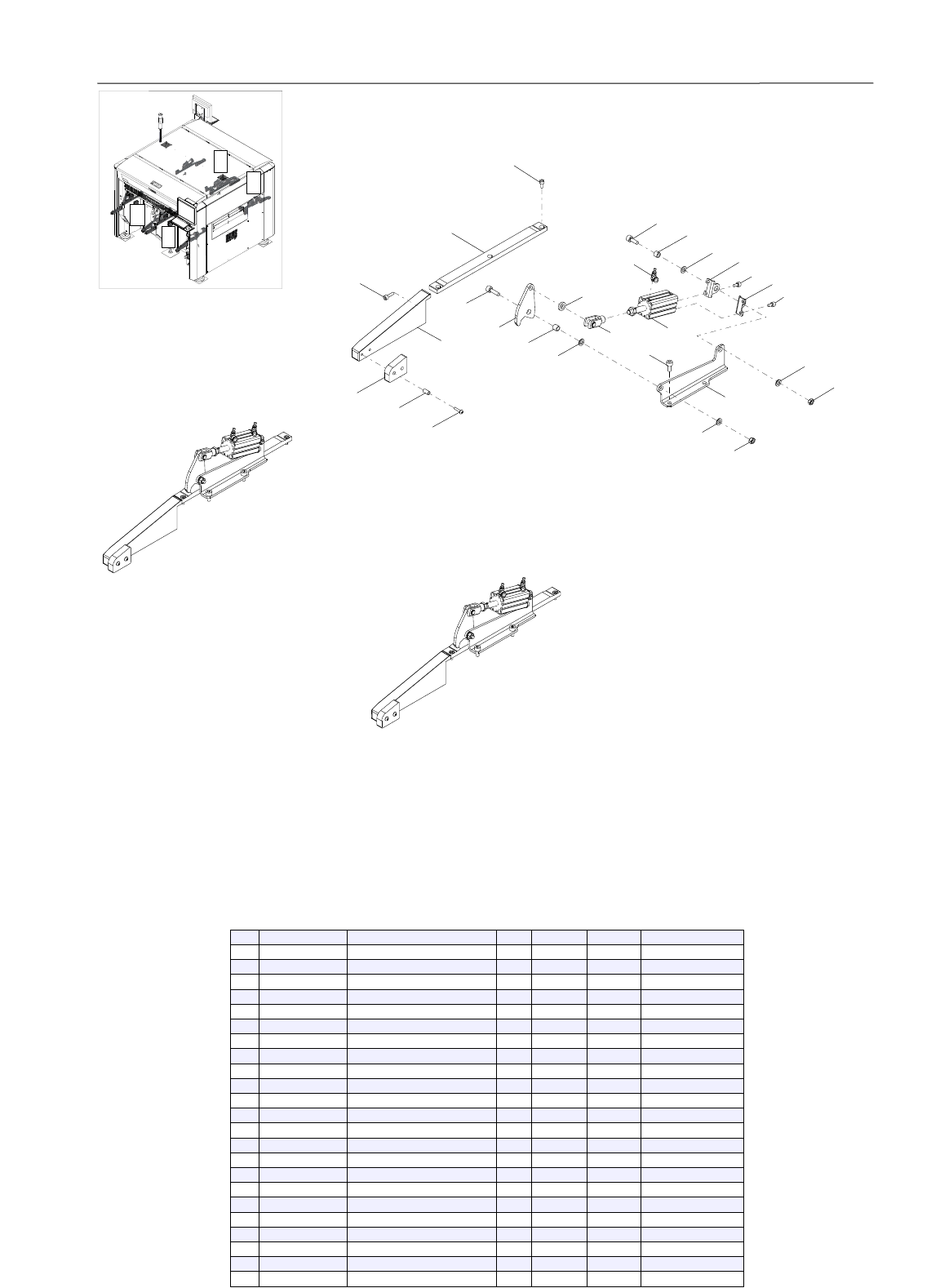

CFB Clamp Unit (Depths Side)
Feeder
LF4-1612
3-9
A
B
C
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
LE4-M32A5-00
COUPLER-S
3
2
LE6-M3442-00
CART
6
3
LE6-M3443-03
POSITION,XL
2
4
LE6-M3444-03
POSITION,XR
1
5
LE6-M344H-00
BLOCK,COUPLER
3
6
LE6-M344J-02
BRKT. PIN
3
7
LE6-M344M-01
COVER,CONNECTOR
3
8
LE6-M344T-00
PIN,FLOAT
6
9
LE6-M344Y-00
PLATE,FLOAT
3
10
LE6-M34AA-10
SPACER,CF-306.5E
6
11
LE6-M34B4-00
JOINT
3
12
LF1-M66E3-00
HNS,MI-DOCK DC A
3
B,C-LF3-M66ER-00
13
LF1-M66E4-00
HNS,XIO-DOCK SIF A
3
B,C-LF4-M66EN-00(S20-1)or-10(S20-2)
14
LF3-M65RT-00
SENSOR ASSY
3
15
LF3-M65RT-10
SENSOR ASSY
3
16
LF3-M344R-01
BRACKET,SENSOR
1
17
LF3-M344T-01
BRACKET,SENSOR
2
18
LG0-M34A3-00
PIN,DOWEL
12
19
90115-10J040
BOLT, HEX. SOCKET HEAD
6
20
90169-05JA06
SCREW, BINDING HEAD
12
21
91317-03016
BOLT HEX,SOCKET HEAD
6
22
91317-05012
BOLT HEX,SOCKET HEAD
6
23
91317-05025
BOLT HEX,SOCKET HEAD
6
24
91317-08010
BOLT HEX,SOCKET HEAD
3
25
91317-08030
BOLT HEX,SOCKET HEAD
6
26
92907-03200
WASHER,PLAIN
6
27
92907-06600
WASHER,PLAIN
6
28
92907-08600
WASHER,PLAIN
9
29
98907-03008
SCREW BINDING HEAD
12
30
98907-04006
SCREW BINDING HEAD
12
31
99009-16400
CIRCLIP
3
13
12
18
9
15
2
15
21
15
16
8
10
7
19
14
4
1
5
6
11
21
20
3
21
17
23
21
22
A
B
B
C
13
12
18
9
15
2
15
21
15
16
8
10
7
19
14
4
1
5
6
11
21
20
3
21
17
23
21
22
CFB Clamp Unit (Right Side)
Feeder
LF4-1612
3-10
A
B
C
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
LE6-M343B-01
GOM R
3
2
LE6-M3441-02
PLATE,BASE
3
3
LE6-M344A-E0
BRKT.R
3
4
LE6-M344C-02
CLAMP
3
5
LE6-M344D-00
COLLAR,PIVOT
3
6
LE6-M344E-00
COLLAR,JOINT
3
7
LE6-M344F-00
BRKT.CYL,L
3
8
LE6-M344G-00
BRKT.CYL,R
3
9
LE6-M344L-00
COLLAR,CYL END
3
10
LE6-M344X-02
SLOPE,CFB
3
11
LE6-M34AC-00
SPACER
6
12
LE6-M34B2-00
KNUCKLE,Y
3
13
LE6-M34B3-00
SPCON.
6
14
LF3-M65R5-00
CFB CLAMP CYL.1 ASSY
3
15
91317-06012
BOLT HEX,SOCKET HEAD
21
16
91317-06020
BOLT HEX,SOCKET HEAD
6
17
91317-08016
BOLT HEX,SOCKET HEAD
6
18
91317-08020
BOLT HEX,SOCKET HEAD
3
19
91317-08025
BOLT HEX,SOCKET HEAD
3
20
92017-05020
BOLT BUTTON HEAD
6
21
92907-08600
WASHER,PLAIN
12
22
95307-08600
NUT HEXAGON
3
23
95307-08700
NUT HEXAGON
3
37
34
31
27
37
14
15
16
30
30
17
1
21
33
29
32
9
11
13
24
2
20
20
4
6
7
31
1
30
5
28
26
30
32
37
3
28
35
25
23
29
6
29
32
40
37
7
11
12
39
32
33
36
8
19
38
32
19
32
22
32
13
18
41
11
12
32
39
11
36
10
32
32
38
37
34
31
27
37
14
15
16
30
30
17
1
21
33
29
32
9
11
13
24
2
20
20
4
6
7
31
1
30
5
28
26
30
32
37
3
28
35
25
23
29
6
29
32
40
37
7
11
12
39
32
33
36
8
19
38
32
19
32
22
32
13
18
41
11
12
32
39
11
36
10
32
32
38

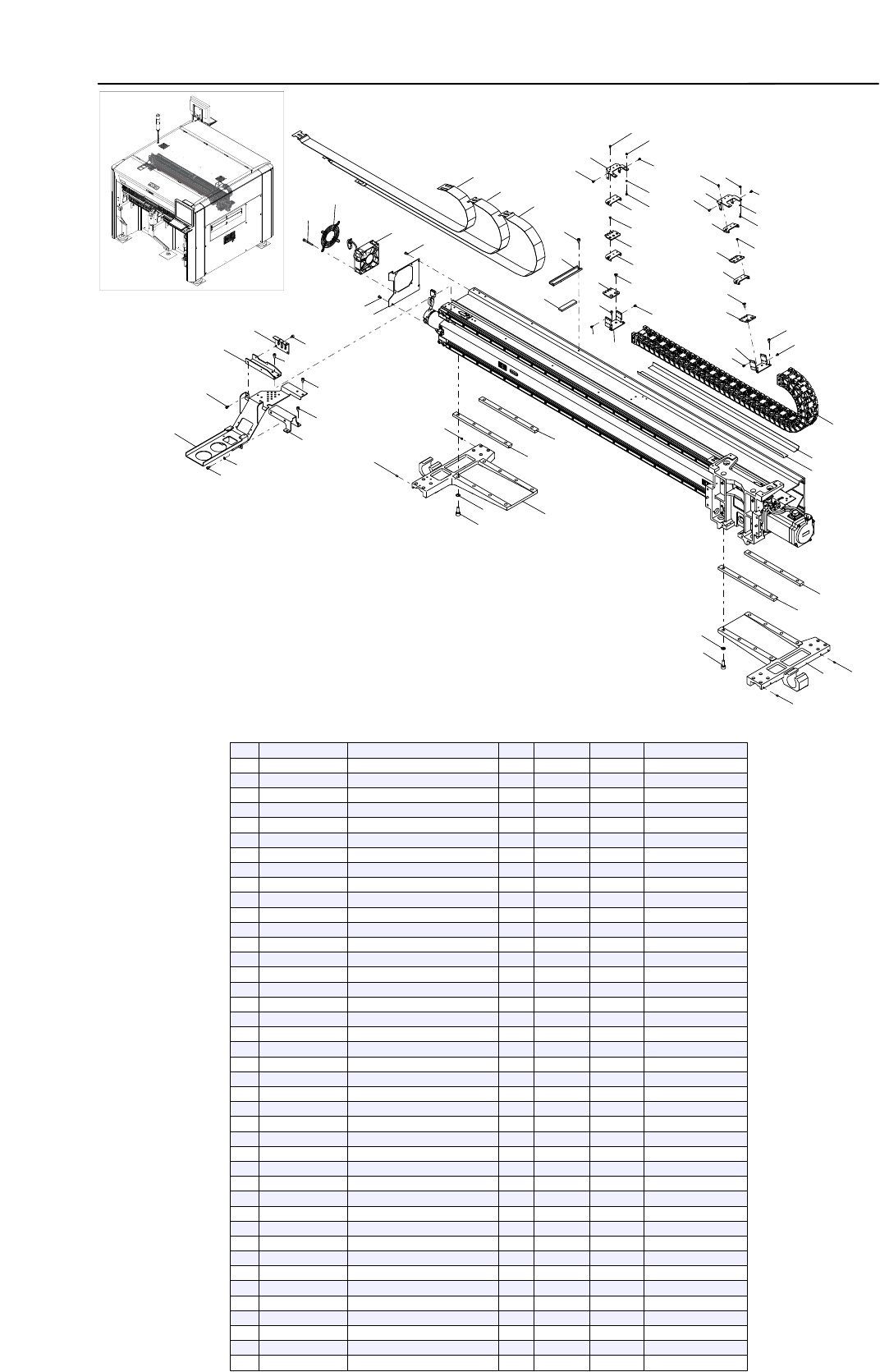

X-axis
Moving-axis
LF4-1612
4-1
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
LE6-M220U-00
WASHER,M8
16
2
LE6-M2202-E1
SLIDER-L
1
3
LE6-M2203-E0
SLIDER-R
1
4
LE6-M2209-00
BRACKET,FAN
1
5
LE6-M220B-00
CLAMP,CABLE XB
4
6
LE6-M220J-00
PLATE,NUT 1
2
7
LE6-M220K-00
PLATE,NUT 2
2
8
LE6-M220P-00
HOLDER,SHEET A
1
9
LE6-M220R-00
HOLDER,SHEET B
1
10
LE6-M220S-01
HOLDWER,SHEET C
1
11
LE6-M220U-00
HOLDER,SHEET E
4
12
LE6-M220V-00
HOLDER,CABLE A
2
13
LE6-M2215-00
HOLDER,CABLE D
2
14
LE6-M2218-00
SHEET A
1
15
LE6-M2219-00
SHEET B
1
16
LE6-M221A-00
SHEET C
1
17
LE6-M22A2-00
GOM
4
18
LE6-M22A7-01
CABLE BEAR,X
1
19
LE6-M22AD-00
TAPE
2
20
LE6-M22F3-10
SCREW,TAPPING
4
21
LE6-M65A2-00
FAN11 ASSY.
1
22
LF1-M220T-00
HOLDER,SHEET D
1
23
LF2-M220A-01
BRACKET,DUCT Y
1
24
LF2-M220B-01
BRACKET,DUCT Y
1
25
LF2-M220D-00
STAY,CABLE
1
26
LF2-M220E-00
BRKT,CONNECTOR
1
27
LG0-M22H3-00
GUARD,FINGER
1
28
91312-04006
BOLT HEX,SOCKET HEAD
4
29
91312-04008
BOLT HEX,SOCKET HEAD
6
30
91312-05008
BOLT HEX,SOCKET HEAD
17
31
91312-08020
BOLT HEX,SOCKET HEAD
16
32
91317-03005
BOLT HEX,SOCKET HEAD
30
33
91317-03010
BOLT HEX,SOCKET HEAD
4
34
91317-04035
BOLT HEX,SOCKET HEAD
4
35
92903-04600
WASHER,PLAIN
2
36
92907-03600
WASHER,PLAIN
4
37
92A08-04006
SCREW,SET
8
38
95307-03600
NUT HEXAGON
4
39
98702-03005
SCREW,FLAT HEAD
6
40
98707-05008
SCREW,FLAT HEAD
2
41
98707-05012
SCREW,FLAT HEAD
2
