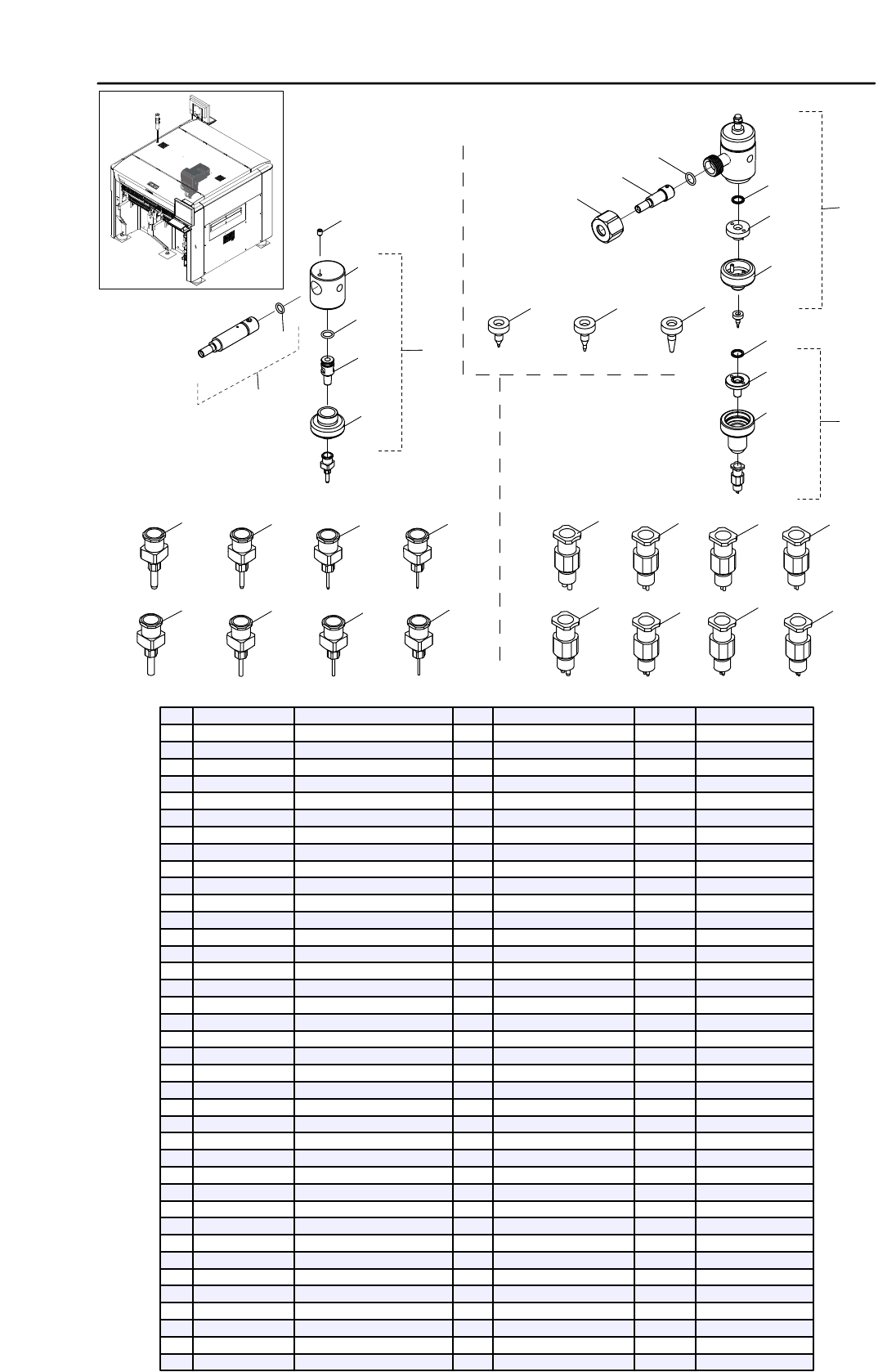

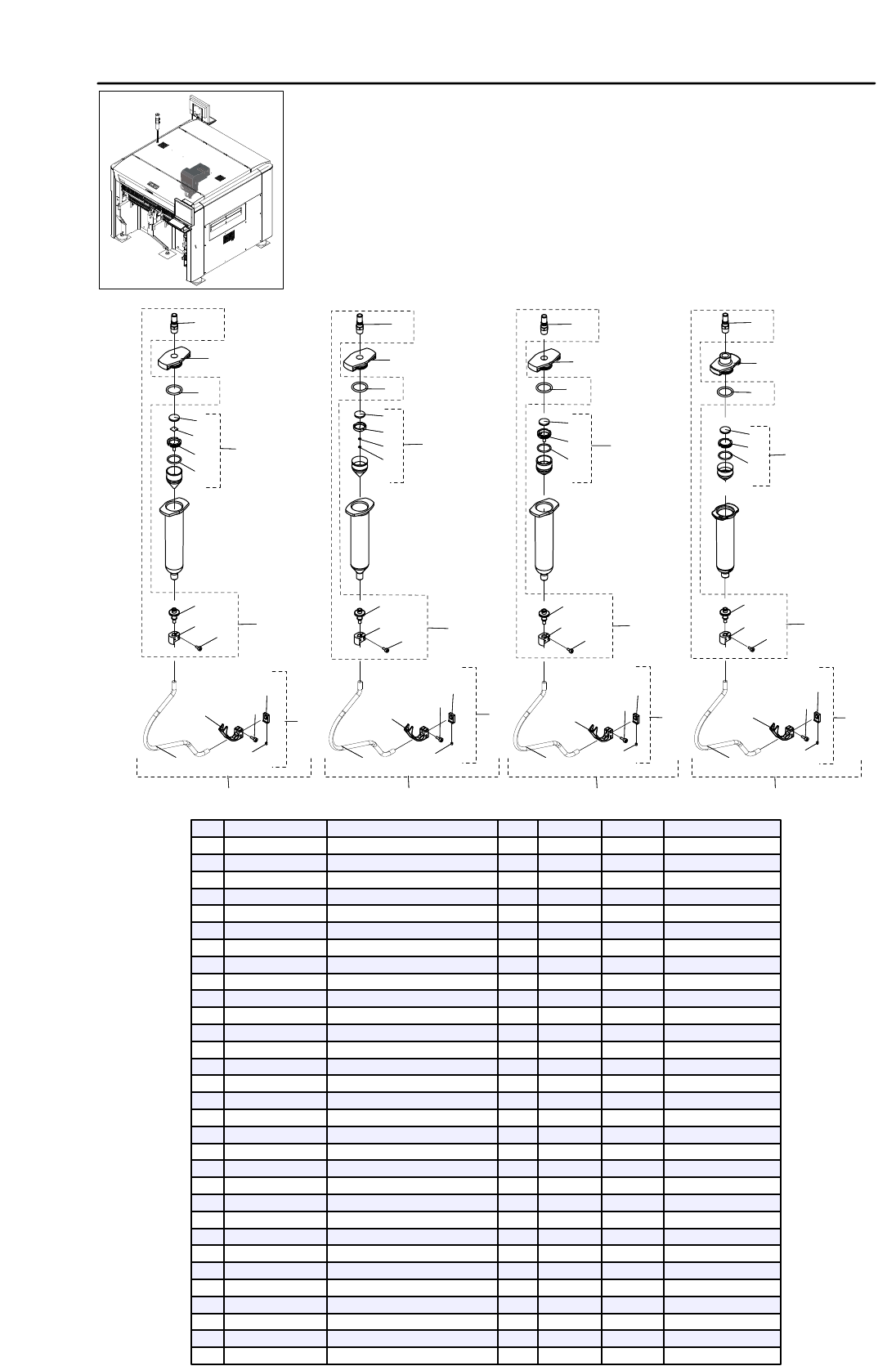

S20_LF4_pl - 第47页
38 9 34 11 27 29 28 33 10 37 7 1 6 2 15 32 25 36 26 24 12 13 4 14 31 3 8 35 5 19 30 20 21 23 22 18 17 16 Dispense Nozzle (O/P) 5-19 38 9 34 11 27 29 28 33 10 37 7 1 6 2 15 32 25 36 26 24 12 13 4 14 31 3 8 35 5 19 30 20 2…
14
14
21
17
16
19
18
21
14
9
21
14
21
15
13
31
20
7
26
12
5
12
4
15
30
13
10
31
20
29
6
5
23
2
12
3
4
30
15
13
31
20
29
27
6
5
23
1
3
12
4
30
15
13
31
8
20
22
22
25
6
5
23
1
3
4
30
28
24
11
6
23
1
3
Syringe Unit
5-18
14
14
21
17
16
19
18
21
14
9
21
14
21
15
13
31
20
7
26
12
5
12
4
15
30
13
10
31
20
29
6
5
23
2
12
3
4
30
15
13
31
20
29
27
6
5
23
1
3
12
4
30
15
13
31
8
20
22
22
25
6
5
23
1
3
4
30
28
24
11
6
23
1
3
Head
LF4-1911
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
LE6-M5F11-02
HOLDER,SHRINGE
3
2
LE6-M5F11-10
HOLDER,SYRINGE
1
3
LE6-M5F12-00
PLUG
4
4
LE6-M5F15-04
ADAPTER
4
5
LE6-M5F2A-02
TUBE
4
6
LE6-M5F2G-00
MAGNET
4
7
LE6-M5F2K-10
MAGNET ASSY.(30 I/E)
1
8
LE6-M5F2K-20
MAGNET ASSY.(30 M/E)
1
9
LE6-M5F2K-30
MAGNET ASSY.(30 SO.)
1
10
LE6-M5F2K-40
MAGNET ASSY.(30 EFD)
1
11
LE6-M5F2P-00
TAPE,MAGNET
1
12
LE6-M5F5L-03
CLAMP,TUBE
4
13
LE6-M5F5M-01
PLATE
4
14
LE6-M5FB0-01
SYRINGE COMMON ASSY
4
15
LE6-M5FF7-10
SET,SCREW
4
16
LF3-M5F20-10
SYRINGE UNIT(30 I/E)
1
17
LF3-M5F20-20
SYRINGE UNIT(30 M/E)
1
18
LF3-M5F20-30
SYRINGE UNIT(30 SO.)
1
19
LF3-M5F20-40
SYRINGE UNIT(30 EFD)
1
20
LF3-M5F5A-00
BLOCK,JOINT
4
21
LF3-M5FD0-00
JOINT ASSY(COMMON)
4
22
LG7-M71AK-20
O-RING (SO10)
2
23
LG7-M71AR-30
O-RING
4
24
LG9-M715M-00
BASE,MAGNET
1
25
LG9-M715M-50
BASE,MAGNET
1
26
LG9-M715M-71
BASE,MAGNET
1
27
LG9-M715N-00
BASE,MAGNET
1
28
LG9-M71AK-70
O-RING(SO)
1
29
LG9-M71AT-50
O-RING (SO16)
2
30
91312-03006
BOLT HEX,SOCKET HEAD
4
31
91312-03008
BOLT HEX,SOCKET HEAD
4
38
9
34
11
27
29
28
33
10
37
7
1
6
2
15
32
25
36
26
24
12
13
4
14
31
3
8
35
5
19
30
20
21
23
22
18
17
16
Dispense Nozzle (O/P)
5-19
38
9
34
11
27
29
28
33
10
37
7
1
6
2
15
32
25
36
26
24
12
13
4
14
31
3
8
35
5
19
30
20
21
23
22
18
17
16
Head
LF4-2002
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90200-02J050
O-RING
1
2
LE6-M5F1E-40
O-RING
1
3
LE6-M5F5C-01
NUT,CAP
1
4
LF3-M5F59-A0
PIPE SET
1
5
LE6-M5F65-00
BRACKET NOZZLE
1
6
LE6-M5F69-00
ADAPTER
1
7
LF3-M5F5N-A0
PIPE,SET
1
8
LE6-M5F6A-00
LOCK, ADAPTER
1
9
LE6-M5FHA-00
SCREW PUMP PACK
1
10
LE7-M5F70-00
DP STD. NOZZLE UNIT
1
11
LE6-M5FF7-10
SET,SCREW
1
12
LE6-M5FN0-21
SLIM 0.30
1
0.375x0.3 Ceramic
13
LE6-M5FN0-30
STD 0.40
1
0.45x0.4 Ceramic
14
LE6-M5FN0-50
STD 0.60
1
0.65x0.6 Ceramic
15
LE8-M5F82-10
NOZZLE,SINGLE H(15H)
1
1.48x1.43 Tapered
16
LE8-M5F82-30
NOZZLE,SINGLE H(19H)
1
0.77x0.72 Tapered
17
LE8-M5F82-50
NOZZLE,SINGLE H(22H)
1
0.47x0.42 Tapered
18
LE8-M5F82-70
NOZZLE,SINGLE H(25H)
1
0.31x0.26 Tapered
19
LE6-M5FBV-30
O-RING
1
20
LG7-M740S-10
NOZZLE,SINGLE (15)
1
1.83x1.43
21
LG7-M740S-30
NOZZLE,SINGLE (19)
1
1.08x0.72
22
LG7-M740S-50
NOZZLE,SINGLE (22)
1
0.72x0.42
23
LG7-M740S-70
NOZZLE,SINGLE (25)
1
0.52x0.26
24
LE6-M5FL3-00
FACE SEAL
1
25
LE6-M5FM0-00
CAP,BOTTOM
1
26
LE6-M5FM1-00
ADAPTER PLATE
1
27
LE6-M5FL3-00
FACE SEAL
1
28
LE7-M5F61-02
ADAPTER
1
29
LE7-M5F62-01
CAP,LOCK
1
30
LE7-M5F63-10
NOZZLE,TWIN(18G)
1
1.22x0.86x2.0P
31
LE7-M5F63-30
NOZZLE,TWIN(21G)
1
0.83x0.49x1.2P
32
LE7-M5F63-50
NOZZLE,TWIN(22G)
1
0.72x0.39x0.9P
33
LE7-M5F63-70
NOZZLE,TWIN(24G)
1
0.57x0.29x0.7P
34
LE8-M5F71-00
NOZZLE,TWIN(18H)
1
0.91x0.86x2.0P Tapered
35
LE8-M5F71-10
NOZZLE,TWIN(21H)
1
0.54x0.49x1.2P Tapered
36
LE8-M5F71-20
NOZZLE,TWIN(22H)
1
0.44x0.39x0.9P Tapered
37
LE8-M5F71-30
NOZZLE,TWIN(24H)
1
0.34x0.29x0.7P Tapered
38
LE7-M5F60-10
TWIN NOZZLE HOLDER
1
11
18
6
15
17
10
14
5
9
4
8
3
13
12
7
16
2
1
11
18
6
15
17
10
14
5
9
4
8
3
13
12
7
16
2
1
Nozzle Assy
Nozzle
LF4-1612
6-1
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
LC6-M770H-00
NOZ.P017 ASSY.
1
2
LC6-M770K-00
NOZ.P018 ASSY.
1
3
LC6-M770M-00
NOZ.P019 ASSY.
1
4
LC6-M770P-00
NOZ.P020 ASSY.
1
5
LC6-M7727-00
NOZ. P050 ASSY.
1
6
LC6-M7729-10
NOZ. P051 ASSY.
1
7
LC6-M772B-10
NOZ. P052 ASSY.
1
8
LC6-M772D-10
NOZ. P053 ASSY.
1
9
LC6-M772F-10
NOZ. P061 ASSY.
1
10
LC6-M772H-11
NOZ.P062 ASSY.
1
11
LC6-M772K-01
NOZ.P055 ASSY.
1
12
LC6-M772V-01
NOZ.P056 ASSY.
1
13
LC6-M7731-02
NOZ. P057 ASSY.
1
14
LC6-M7735-00
NOZ. P054 ASSY.
1
15
LC6-M773B-00
NOZ.P072 ASSY.
1
16
LC6-M773E-01
NOZ.P073 ASSY.
1
17
LC6-M7744-00
NOZ.P063 ASSY.
1
18
LC6-M775A-01
NOZZLE,ASSY
1
