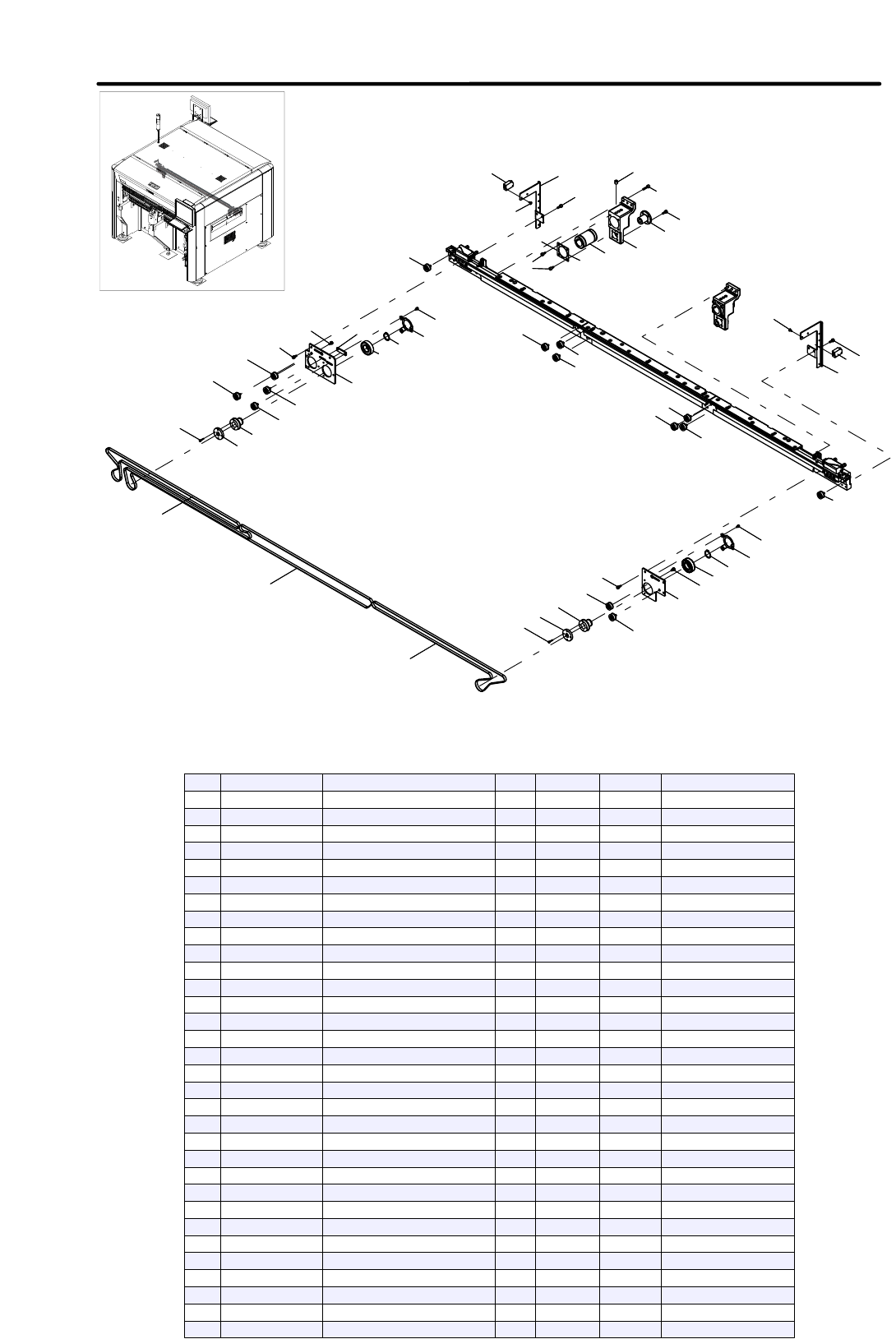

Rail Moving (Belt / Pulley)
Conveyor
LF4-1612
7-8
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KV1-M9140-A0
PULLEY CONV. ASSY.
12
2
KV7-M9140-A0
PULLEY CONV. ASSY
2
3
LE6-M65E2-40
PCB-LR SENS.ASSY
1
4
LE6-M65E2-60
PCB-RR SENS.ASSY
1
5
LE6-M9001-M0
PULLEY,DRIVE
3
6
LE6-M9002-M0
HOLDER,BRG
3
7
LE6-M9003-M0
PLATE,DRIVE R
3
8
LE6-M902A-01
LINEAR BUSH
2
9
LE6-M903F-00
NUT
2
10
LE6-M90A2-00
BEARING
3
10-1
90933-01J022
BEARING
3
OK
MTX0055-2020/12/15
11
LE6-M9416-00
NUT,PLATE
1
12
LE6-M9417-00
BELT
1
13
LE6-M9417-10
BELT
1
14
LE6-M9417-20
BELT
1
15
LE6-M942K-00
PLATE,PULLEY 3
1
16
LE6-M942L-01
PLATE,PULLEY 4
1
17
LE6-M942M-00
PLATE,1
2
18
LE6-M942N-00
PLATE 2
2
19
LE6-M942P-01
BRK.SENSOR RL
1
20
LE6-M942R-01
BRK.SENSOR RR
1
21
LE6-M943L-M2
BRACKET,RAIL
2
22
LG1-M17AL-00
THIN HEAD BOLT
4
23
91312-04006
BOLT HEX,SOCKET HEAD
9
24
91312-05010
BOLT HEX,SOCKET HEAD
12
25
91312-05012
BOLT HEX,SOCKET HEAD
4
26
91317-03014
BOLT HEX,SOCKET HEAD
12
27
91317-05012
BOLT HEX,SOCKET HEAD
8
28
91317-05020
BOLT HEX,SOCKET HEAD
6
29
92A08-08010
SCREW, SET
6
30
97012-05008
BOLT,HEXAGON
2
31
99009-22400
CIRCLIP
3
11
20
29
20
2
15
1
1
25
28
19
5
18
28
36
37
19
27
19
36
21
33
23
23
18
28
22
36
36
18
37
24
19
1
1
29
4
28
19
18
28
18
28
30
19
18
28
22
19
18
35
3
37
2
36
2
23
1
27
1
10
33
8
26
36
20
8
6
2
7
32
9
17
31
2
8
16
2
2
8
32
17
31
20
2
2
12
14
8
10
34
8
32
17
31
2
11
20
29
20
2
15
1
1
25
28
19
5
18
28
36
37
19
27
19
36
21
33
23
23
18
28
22
36
36
18
37
24
19
1
1
29
4
28
19
18
28
18
28
30
19
18
28
22
19
18
35
3
37
2
36
2
23
1
27
1
10
33
8
26
36
20
8
6
2
7
32
9
17
31
2
8
16
2
2
8
32
17
31
20
2
2
12
14
8
10
34
8
32
17
31
2
Rail Moving (Clamper)
Conveyor
LF4-1612
7-9
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
LC0-M91AL-10
CTRL.SPEED
6
2
LC2-M912M-00
LOW HEAD CAP SCREW
36
3
LE6-M11E2-00
PLATE,MARK
2
4
LE6-M65E6-30
QC-CR CYL.ASSY
1
5
LE6-M65E6-50
QC-LR CYL.ASSY
1
6
LE6-M65E6-70
QC-RR CYL.ASSY
1
7
LE6-M9411-00
FRAME,RAIL
1
8
LE6-M9412-00
BUSH
14
9
LE6-M9413-00
GUIDE,PCB
1
10
LE6-M9414-00
GUIDE,PCB
2
11
LE6-M9419-00
HOLDER,MARK
2
12
LE6-M941E-10
BLOCK,GUIDE 1
1
13
LE6-M941F-10
BLOCK,GUIDE 2
1
14
LE6-M9471-01
CLAMPER,1
1
15
LE6-M9472-01
CLAMPER,2
1
16
LE6-M9473-01
CLAMPER,3
1
17
LE6-M9477-00
SHAFT,SLIDE
7
18
LE6-M9479-00
PIN,NEEDLE
7
19
LE6-M947A-01
BRG
7
20
LE6-M947F-00
PLATE,LEVER
8
21
LE6-M947H-01
LEVER,1
1
22
LE6-M947J-00
LEVER,2
2
23
LE6-M947K-00
SPACER
3
24
LE6-M947M-00
BRKT.CYL
1
25
LE6-M947N-00
BRKT.CYL
1
26
LE6-M947P-00
BRKT.CYL
1
27
LE6-M947R-00
JOINT,CYL R
2
28
LE6-M947T-00
SPACER
7
29
LE6-M947W-00
SPACER,C
2
30
LE6-M947Y-00
LABEL
1
31
LG0-M71F1-00
WASHER L,PLAIN
7
32
90990-10J008
SCREW, BINDING HEAD
7
33
91312-04006
BOLT HEX,SOCKET HEAD
4
34
91312-04010
BOLT HEX,SOCKET HEAD
4
35
91312-05025
BOLT HEX,SOCKET HEAD
6
36
92903-05200
WASHER,PLAIN
6
37
95307-05600
NUT HEXAGON
3
37
20
2
10
31
37
2
8
35
1
13
25
3
37
1
36
36
37
27
24
2
14
11
2
33
39
9
32
25
26
21
38
31
4
1
15
30
35
18
22
16
19
24
36
17
2
13
14
25
41
7
33
35
25
12
40
2
3
39
5
1
32
37
38
34
26
36
28
4
27
38
21
4
20
31
18
16
38
19
21
6
24
23
4
29
37
20
2
10
31
37
2
8
35
1
13
25
3
37
1
36
36
37
27
24
2
14
11
2
33
39
9
32
25
26
21
38
31
4
1
15
30
35
18
22
16
19
24
36
17
2
13
14
25
41
7
33
35
25
12
40
2
3
39
5
1
32
37
38
34
26
36
28
4
27
38
21
4
20
31
18
16
38
19
21
6
24
23
4
29
W-axis
Conveyor
LF4-1612
7-10
OLD
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KH2-M9105-11
PULLEY,MOTOR:P30-3GT
7
2
KH2-M9121-00
BEARING
6
3
LC8-M902K-00
WASHER,PLAIN
2
4
LE6-M11E2-00
PLATE,MARK
4
5
LE6-M65M7-10
W MOTOR ASSY
1
6
LE6-M9032-32
HOLDER,SHAFT FR
1
7
LE6-M9032-42
HOLDER,SHAFT FL
1
8
LE6-M9033-34
HOLDER,SHAFT RR
1
9
LE6-M9033-44
HOLDER,SHAFT RL
1
10
LE6-M9036-E0
BELT,W
1
11
LE6-M9037-E0
BRKT,TENTIONER_R
1
12
LE6-M9038-E0
BRKT,TENTIONER_R
1
13
LE6-M903B-E0
BELT,W(S)
2
14
LE6-M903C-E0
SHAFT
2
15
LE6-M903D-E0
SHAFT2
1
16
LE6-M903E-04
SHAFT,SCREW
2
17
LE6-M903J-00
SHAFT,IDLER
1
18
LE6-M903M-00
SHAFT,SLIDE
2
19
LE6-M903N-E0
BRACKET,MOTOR
1
19-1
LF4-M903N-00
BRACKET,MOTOR
1
NG
MN00053-2016/10/24
20
LE6-M90A5-20
WASHER,STOPPER
2
21
LE6-M90F3-00
SET PIECE
4
22
LG9-M97A6-00
BALL BEARING
2
23
90933-02J608
BEARING
2
24
91312-04010
BOLT HEX,SOCKET HEAD
8
25
91312-05010
BOLT HEX,SOCKET HEAD
6
26
91312-06010
BOLT HEX,SOCKET HEAD
2
27
91317-04006
BOLT HEX,SOCKET HEAD
4
28
91317-04010
BOLT HEX,SOCKET HEAD
4
29
91317-05020
BOLT HEX,SOCKET HEAD
6
30
91317-06030
BOLT HEX,SOCKET HEAD
1
31
91317-08030
BOLT HEX,SOCKET HEAD
16
32
92902-06200
WASHER,PLAIN
2
33
92903-05200
WASHER,PLAIN
4
34
92907-04600
WASHER,PLAIN
4
35
92907-06600
WASHER,PLAIN
4
36
92907-10600
WASHER,PLAIN
4
37
92A08-04308
SCREW SET
14
38
92A08-10016
SCREW, SET
4
39
95302-04600
NUT HEXAGON
4
40
95307-06600
NUT HEXAGON
1
41
91312-06012
BOLT HEX,SOCKET HEAD
2
NG
