3-A X 軸 ユニット X-Axis Unit パーツレイアウト Kit No. キット品 番 Kit Name キット名称 KXFX0454A00 ｾｸｼｮﾝNo. PARTS LAYOUT Section No. M27
Ref
No.
Remarks
R
1
Q'ty
2-D
全体
カバー
Whole Cover
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit No.
キット
品番
Kit Name
キット名称
N610000706AA
Part Name
備 考
ｾｸｼｮﾝ
No
.
PARTS LIST
Section No.
R
3
COVER
2
1 N210002209AA
COVER
2
2 N210002210AA
S
COVER
2
3 N210002212AA
S
COLLAR
4
4 KXFB058VA01
COVER
2
5 KXFB0EFUA00
COVER
1
6 N210004147AA
COVER
2
7 KXFB09Z0B00
COVER
1
8 KXFB09Z1B00
HINGE
4
9 KXFB02RTA01
COVER
1
10 KXFB09ZFB00
BRACKET
2
11 N210022148AA
S
BRACKET
2
12 N210022149AA
S
COVER
2
13 N210028714AB
S
COVER
2
14 N210028715AB
S
COVER
2
15 N210028716AA
S
BRACKET
2
16 N210028719AA
S
COVER
1
17 KXFB09Z8A00
HINGE
4
18 KXFB08DMA00
COVER
1
20 N210004148AB
COVER
1
21 N210020903AA
CAP
24
22 KXF0DLPAA01 CP-328-B-6 hole process ivory(DDA)
BOLT
24
23 N510017647AA
Hexagon socket Flat head bolt M6X16-10.9 A2J (Trivalent)
STUD
4
24 KXF0E110A00 MSS5X12
MAGNET
6
25 KXF0CS8AA00 C-54-2-black
WASHER
4
26 KXF0CXEAA00 URWH12-8-5
WASHER
8
27 N510018469AA
Iron round plain washer4X10X1.0 A2J (Trivalent)
SPACER
4
28 N510017097AA CB-405E
SCREW
8
29 N510018233AA
Cross recessed Truss head machine screw M3X10-4.8 A2S (Trivalent)
SCREW
4
30 N510018266AA
Cross recessed Truss head machine screw M4X16-4.8 A2S (Trivalent)
SCREW
20
31 N510018283AA
Cross recessed Truss head machine screw M4X8-4.8 A2S (Trivalent)
BOLT
4
32 KXF0DYG5A00 GUTB4-5-10
SCREW
12
33 N510018280AA
Cross recessed Truss head machine screw M4X6-4.8 A2S (Trivalent)
STUD
4
34 KXF0A5ZAA00 MSS4X10
COLLAR
4
35 N210071617AA
BRACKET
2
36 N210076015AA
DOG
2
37 N210075609AA
WASHER
4
38 N510030285AA 87WASBH8-3
M26
-
-
( KN610000706AA-06-4 )
3-A
X
軸
ユニット
X-Axis Unit
パーツレイアウト
Kit No.
キット品
番
Kit Name
キット名称
KXFX0454A00
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
M27
Ref
No.
Remarks
R
1
Q't
y

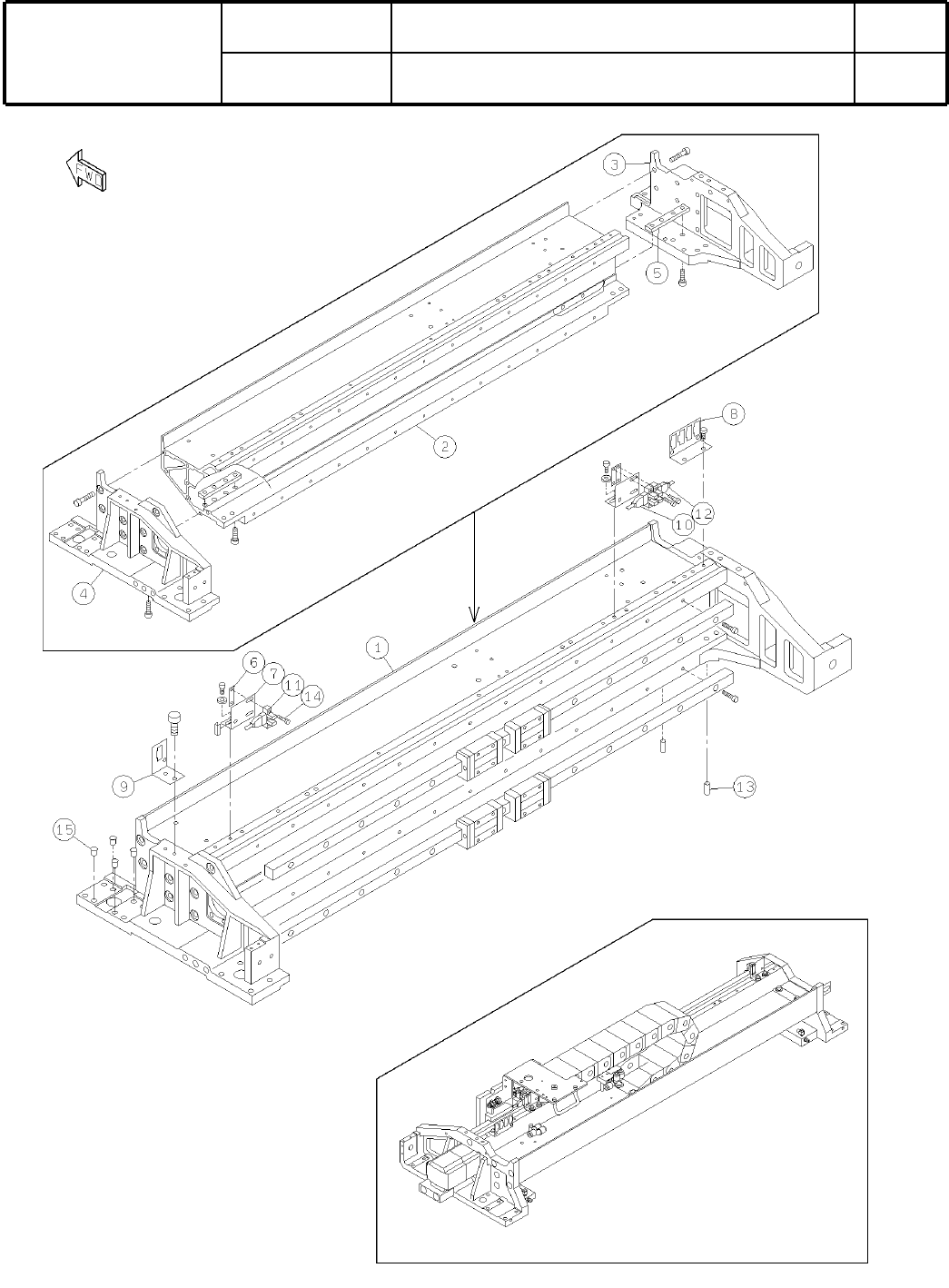

3-A
X
軸
ユニット
X-Axis Unit
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit No.
キット品
番
Kit Name
キット名称
KXFX0454A00
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
FRAME
1
1 N610005876AA
X-BAR
1
2 N610005630AA
FRAME
1
3 N610005570AA
FRAME
1
4 N610005571AA
NUT-PLATE
2
5 KXFB02PTA03
NUT-PLATE
3
6 KXFB02RMA00
BRACKET
2
7 KXFB02RNA00
BRACKET
1
8 KXFB02RPA00
BRACKET
1
9 KXFB02RRA00
PH-SENSOR
1
10 KXF0DL7AA01 PM-L53-C1(DA KXF0DL7AA01)
PH-SENSOR
1
11 KXF0DL4AA01 PM-L53B-C1(DA KXF0DL4AA01)
PH-SENSOR
1
12 KXF0DL5AA01 PM-L53B-C1(DA KXF0DL5AA01)
PIN
2
13 KXF02YRAA00 MS6-15
BOLT
6
14 N510017311AA
Hexagon socket head cap screw M3X14-10.9 A2J (Trivalent)
PLUG
8
15 KXF0E0NMA00 CP-30-HP-1
