QEJM1A-E-MPA-34 - 第82页
11 基板 ス ト ッパ Board Stopper パー ツレイ アウト Kit No. キ ット 品番 Kit Name キ ット 名称 KXFX036MA00 ｾｸｼｮﾝ No . PARTS LAYOUT Section No. - - M61 ( KKXFX036MA00-05 )
Ref
No.
Remarks
R
1
Q'ty
10-B
基板
ホルダ
Board Holder
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit No.
キット
品番
Kit Name
キット名称
KXFX036JA00
Part Name
備 考
ｾｸｼｮﾝ
No
.
PARTS LIST
Section No.
R
3
CYL-NUT
2
1 KXFB00VKA00
CYL-NUT
2
2 KXFB02T6A00
PLATE
2
3 N210020582AA
PLATE
4
4 KXFB02R1B01
BRACKET
4
5 KXFB02RPA00
PW102A1
2
6 KXFB02SPA00
PW004A0
6
7 KXFB01CCA00
SHAFT
4
8 KXF0DY97A00 LSG-SC-20-151(DDA)
LINEAR-BUSH
4
9 KXF0DY8XA00 TBW-20UU
CYLINDER
2
10 KXF0A6QAA00 CM2F40-30
JOINT
4
11 KXF02BZAA00 KQL06-02S
SENSOR
2
12 KXF0DL2AA01 PM-K53-C1(DA KXF0DL2AA01)
SCREW
8
13 N510009302AA MSSG10-35
COLLAR
4
14 KXF0CTFAA00 NCLB8-16-70.0
PH-SENSOR
4
15 KXF0DL0AA01 PM-K53B-C1(DA KXF0DL0AA01)
PLATE
4
16 KXF0CTNAA00 LMST20
SPACER
8
17 N510017084AA BSF-435E
BRACKET
4
18 KXFB02SNA00
NUT
8
19 N510017889AA
Hexagon nut Type-3 Best class M10-6H-4T A2J (Trivalent)
BOLT
4
20 N510017495AA
Hexagon socket head cap screw M8X90-10.9 A2J (Trivalent)
SHOCK-ABSORBER
8
21 KXF038NAA00 RB1007
M60
-
-
( KKXFX036JA00-06-2 )
11

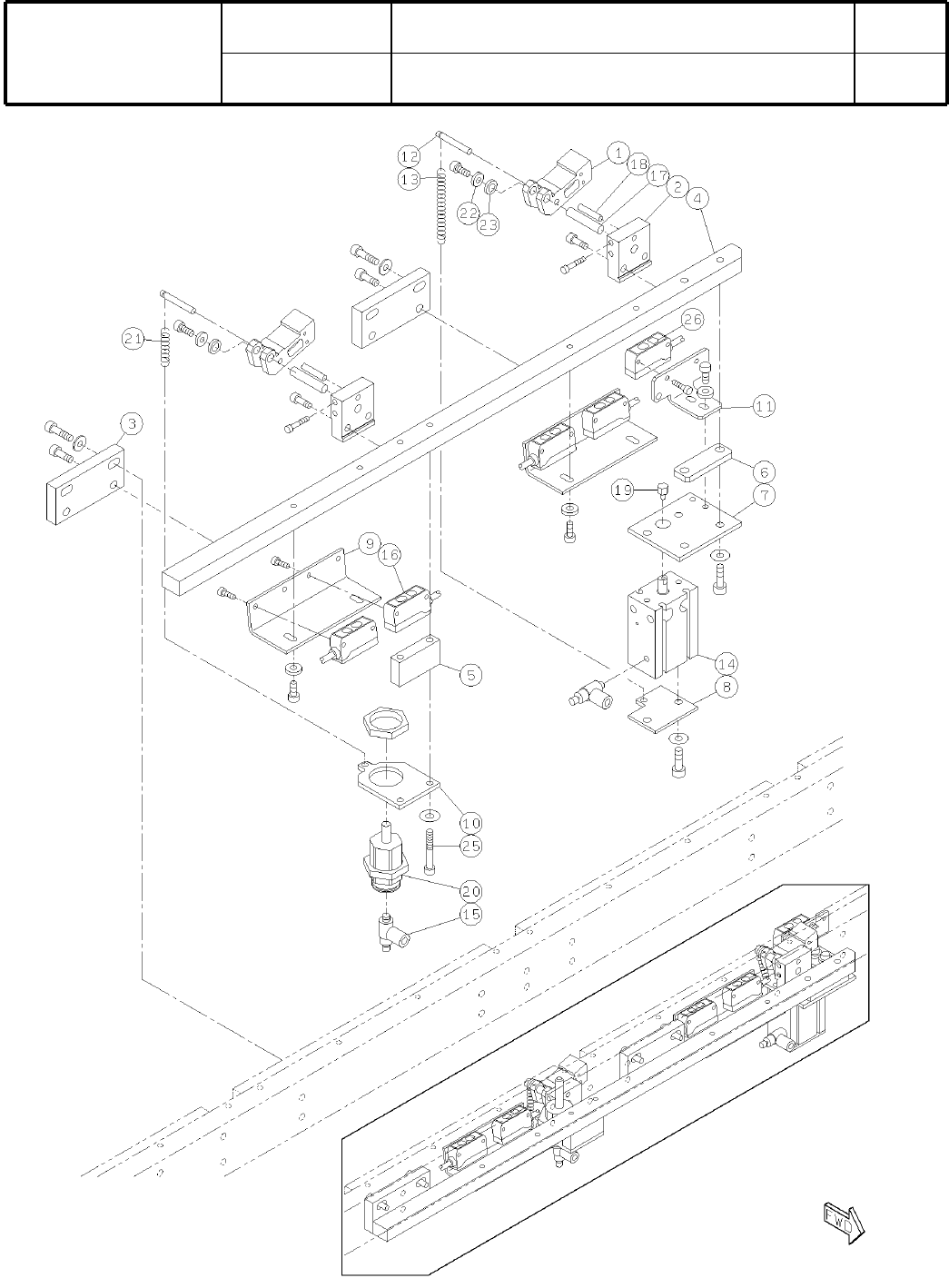

基板
ストッパ
Board Stopper
パーツレイアウト
Kit No.
キット
品番
Kit Name
キット
名称
KXFX036MA00
ｾｸｼｮﾝ
No
.
PARTS LAYOUT
Section No.
-
-
M61
( KKXFX036MA00-05 )
Ref
No.
Remarks
R
1
Q'ty
11
基板
ストッパ
Board Stopper
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit No.
キット
品番
Kit Name
キット名称
KXFX036MA00
Part Name
備 考
ｾｸｼｮﾝ
No
.
PARTS LIST
Section No.
R
3
STOPPER
2
1 KXFB02N4A03
BLOCK
2
2 N210022685AA
PLATE
2
3 KXFB02N6A00
PLATE
1
4 KXFB02N7C01
SPACER
1
5 KXFB02N8A00
SPACER
1
6 N210022686AA
CYL-PLATE
1
7 KXFB02NBB00
PLATE
1
8 KXFB02NCA00
BRACKET
2
9 KXFB02TYA00
PLATE
1
10 KXFB02NEA00
BRACKET
1
11 KXFB02TZC00
D-PIN
2
12 KXFB02NAA00
SPRING
1
13 KXF0C72AA00 6580
CYLINDER
1
14 KXF0DHZAA00 CU20S-T1879-15(DDA)
SPEED-CONTROLLER
2
15 KXF00YSAA00 AS1211F-M5-04
SENSOR
4
16 KXF0DSTAA00 E3S-LS3N(DA 0DSTA)
PIN
2
17 KXF0303AA00 MSTH6-30
PIN
2
18 KXF02Y8AA00 MS4-20
PIN
1
19 KXF0BL0AA00 STEHN5.5
CYLINDER
1
20 KXF0DZBAA00 CJPB15-DCG8017G-15(DDA)
SPRING
1
21 KXF0CWKAA00 H063-10
WASHER
2
22 KXF0DJJAA00 WSSB10-4-2
WASHER
2
23 KXF0CJHAA00 WSSB10-6-2
BOLT
2
25 N510017361AA
Hexagon socket head cap screw M4X30-10.9 A2J (Trivalent)
SENSOR
1
26 KXF0DSUAA00 E3S-LS3N(DA 0DSUA)
M62
-
-
( KKXFX036MA00-05 )
