Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.18 VACUUM DEVICE
Version
01
Title

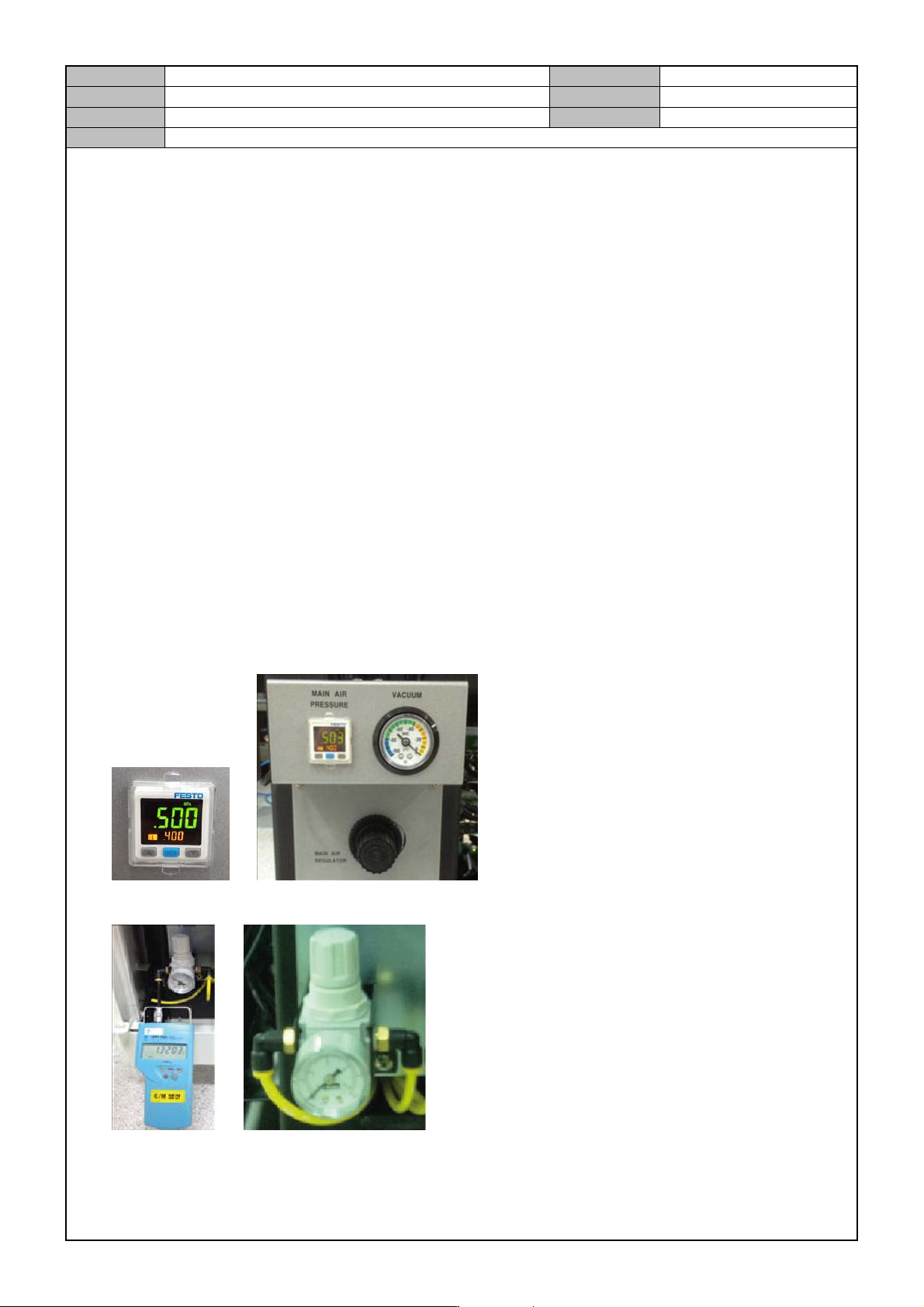

MAIN AIR PRESSURE SETTING
Page
3-18-11
Note
[MAIN AIR PRESSURE SETTING]
Zero point setting
When the air pressure is not applied, press ▼ and ▲ at the same time until the display window displays
<00>.
Initial setting mode
① In the initial operation condition, press the [SET] button for three seconds.
② In <ot1>, press [▼] and [▲] to set <HYS> and then press the [SET] button.
③ In <ot1>, press [▼] and [▲] to set <no> and then press the [SET] button.
④ In <ot2>, press [▼] and [▲] to set <oFF> and then press the [SET] button.
⑤ In <rES>, press [▼] and [▲] to set <2.5> and then press the [SET] button.
⑥ In <cOL>, press [▼] and [▲] to set <SoG> and then press the [SET] button.
⑦ In <uni>, press [▼] and [▲] to set <Mpa> and then press the [SET] button.
Pressure setting mode
① Press the [SET] button once to see <L1> on the sub window. Then, press the [▼] and [▲] buttons to
set it to 0.4.
② When the sub window displays <H1>, press the [▼] and [▲] buttons to set it to 0.5.
Set the Main Air Pressure Digital Gauge to below 0.5 Mpa and set the Vacuum Gauge to below-95kPa.
Connect an air pressure tester to the Regulator and set it to 0.9 ~ 1.1 BAR.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.18 VACUUM DEVICE
Version
01
Title

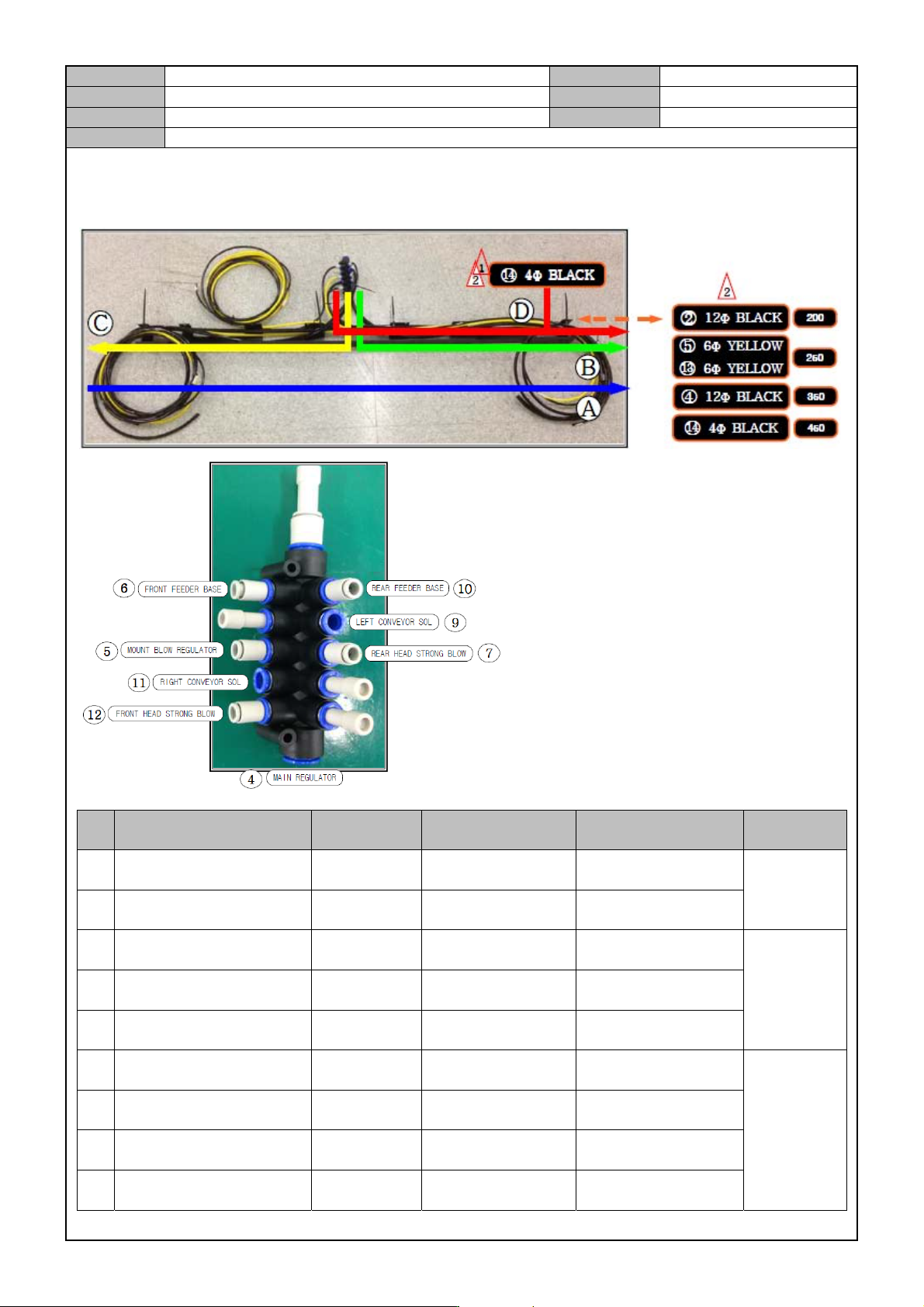

MAIN MANIFOLD AIR PRESSURE CONNECTION
Page
3-18-12
Note
[MAIN MANIFOLD AIR PRESSURE CONNECTION]
N
o.
Air Pressure Tube Spec Unit(mm) START END Remarks
2 [U2-4-12*8](BLACK) 1940 FILTER ASSY
MAIN REGULATO
R
A
3 [U2-4-6*4](YELLOW) 2700
MOUNT BLOW
REGULATOR
REAR HEAD
BLOW
4 [U2-4-12*8](BLACK) 1050
MAIN
MANIFOLD
MAIN
REGULATOR
B
5 [U2-4-6*4](YELLOW) 990
MAIN
MANIFOLD
MOUNT BLOW
REGULATOR
6 [U2-4-6*4](BLACK) 1900
MAIN
MANIFOLD
FRONT
FEEDER BASE
7 [U2-4-6*4](BLACK) 2200
MAIN
MANIFOLD
REAR HEAD
STRONG BLOW
C
8 [U2-4-12*8](BLACK) 3500
AIR VACUUM
ASSY
REAR HEAD
VACUUM
9 [U2-4-8*5](BLACK) 2600
MAIN
MANIFOLD
LEFT
CONVEYOR SOL
10 [U2-4-6*4](BLACK) 2100
MAIN
MANIFOLD
REAR
FEEDER BASE
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.18 VACUUM DEVICE
Version
01
Title
MAIN MANIFOLD AIR PRESSURE CONNECTION
Page
3-18-13
Note
No. Air Pressure Tube Spec Unit(mm) START END Remarks
11 [U2-4-8*5](BLACK) 3700
MAIN
MANIFOLD
RIGHT
CONVEYOR SOL
D
12 [U2-4-6*4](BLACK) 3200
MAIN
MANIFOLD
FRONT HEAD
STRONG BLOW
13 [U2-4-6*4](YELLOW) 2700
MOUNT BLOW
REGULATOR
FRONT HEAD
BLOW
14 [U2-4-4*2.5](BLACK) 1700 VACUUM PUMP FRONT AIR PANEL
