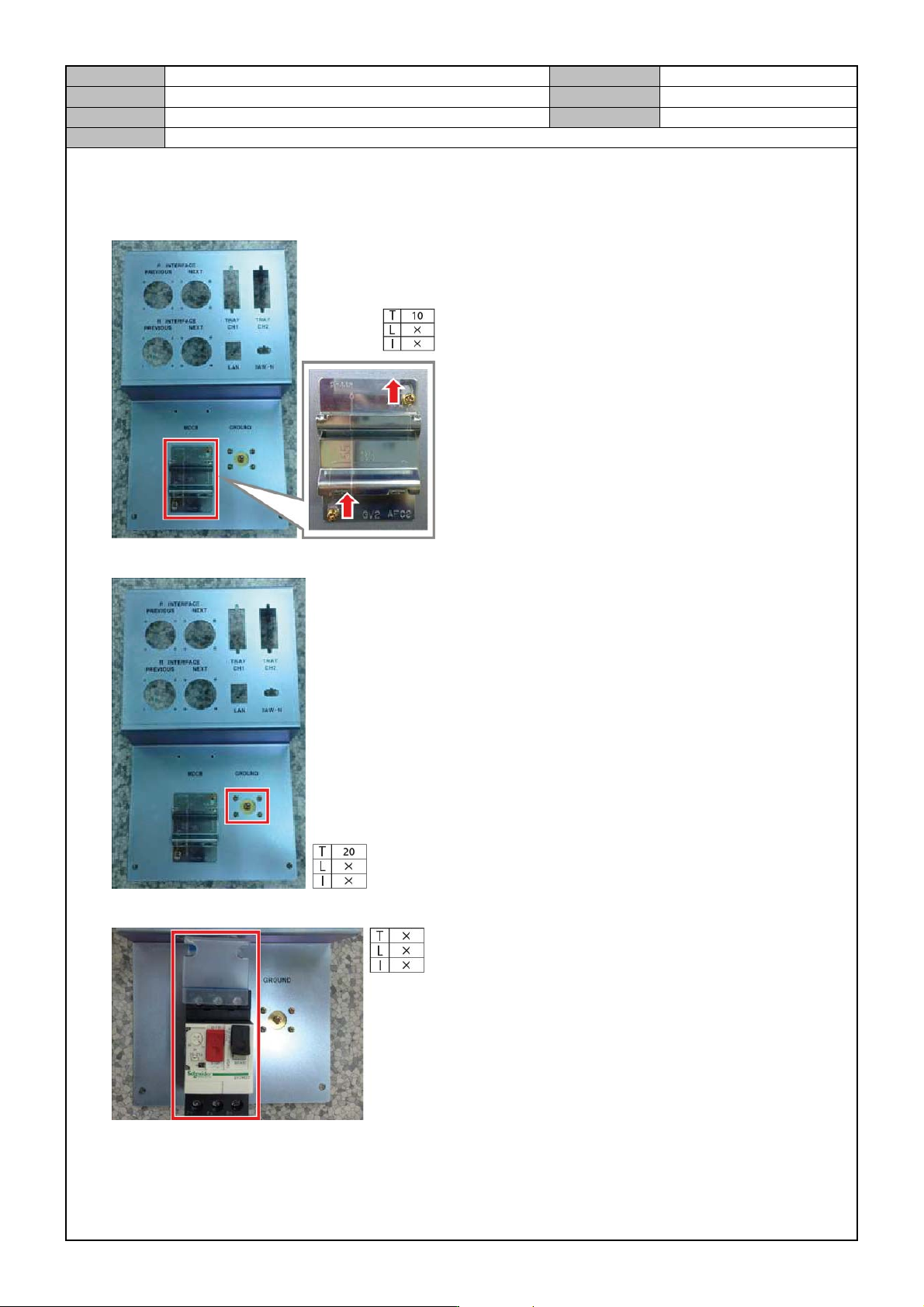

[REAR POWER PANEL SUB ASSEMBLY]
1. Lift up the Panel Mounter to the top and assemble it.
2. Assemble the Ground Terminal.
3. Assemble the Main Circuit Breaker into the Panel Mounter.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
REAR POWER PANEL SUB ASSE MBLY
Page
3-19-5
Note

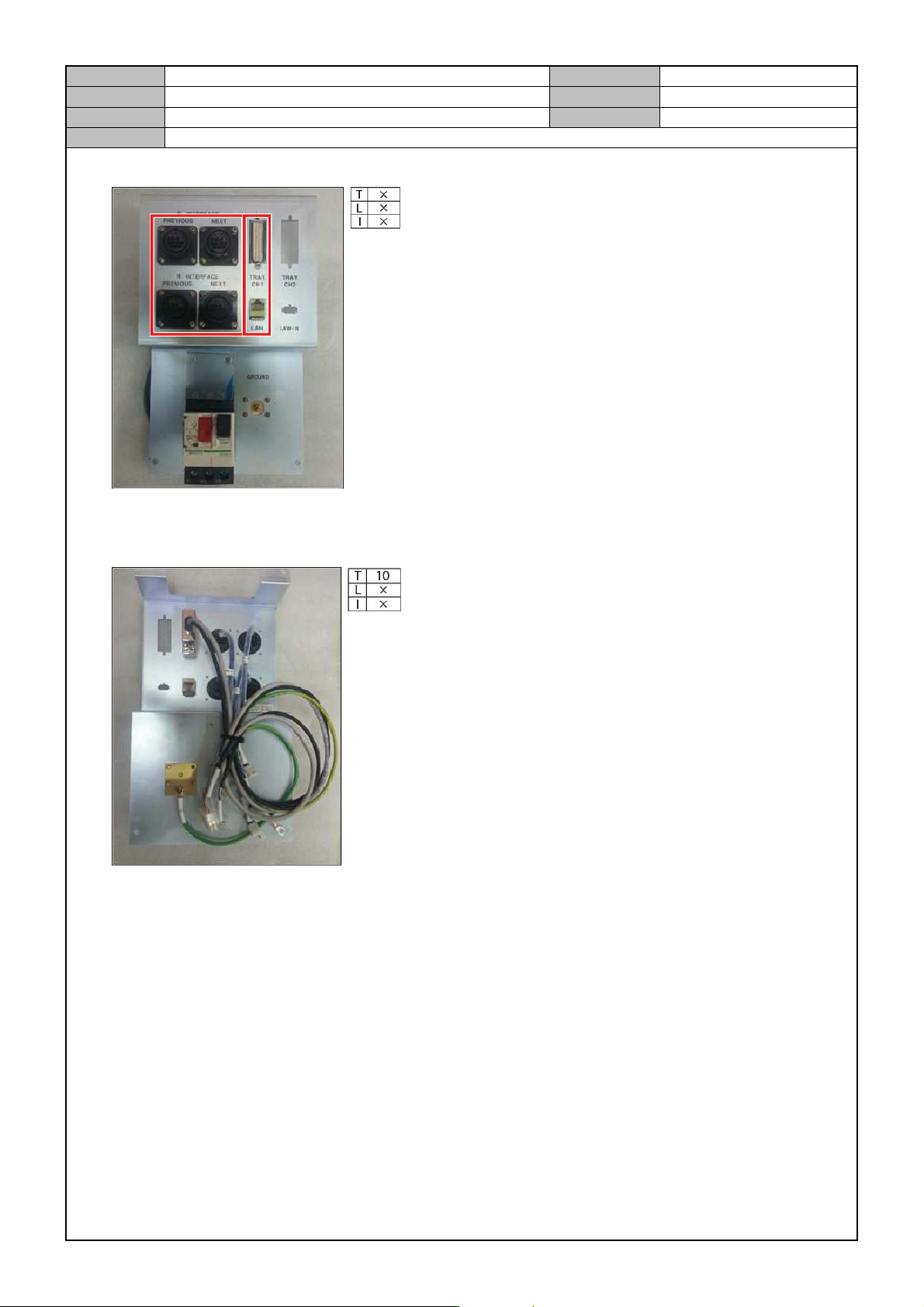

4. Assemble the Inline Cable and the Connector.
5. Connect the Ground Cable to the Ground Terminal.
6. Fix each cable with a tie.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
MAIN POWER SHORT TEST
Page
3-19-6
Note

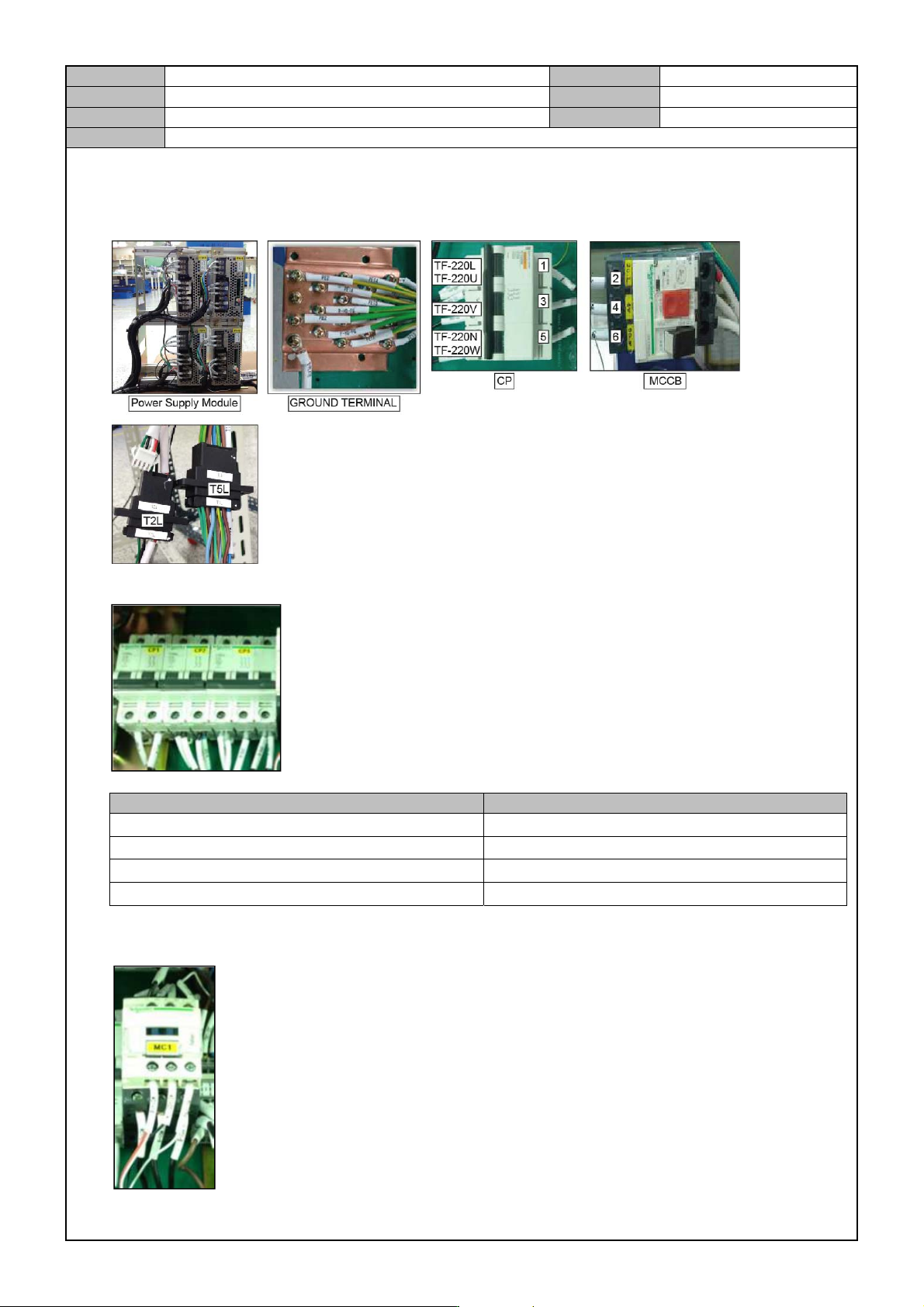

[MAIN POWER SHORT TEST]
1. Connect the power cable to the Power Supply Module.
2. Measure the insulation resistance of CP #1,2,3.
Inspection units Inspection criteria
CP#1 의 SHORT CHECK : CP1-2 , CP1-4
10kΩ ~ 15kΩ
CP#2 의 SHORT CHECK : CP2-2 , CP2-4
400kΩ ~ 600kΩ
CP#3 의 SHORT CHECK : CP3-2 , CP3-4
100MΩ or higher or OPEN
CP#3 의 SHORT CHECK : CP3-2 , CP3-6
3MΩ ~ 8MΩ
*Condition : CP#1 OFF, CP#2 OFF, CP#3 OFF , two middle fans separated from the cable.
3. Measure the insulation resistance of MC #1.
