- - 5. EL ECTR IC APP ARA TUS C OM PON EN TS(2 ) 4 3 2 5 6 7 8 9 1 0 1 1 1 3 1 2 1 4 1 5 1 6 1 8 1 7 1 9 2 0 2 1 2 4 2 5 2 6 2 9 3 0 2 7 2 8 3 1 3 3 3 6 3 5 3 7 3 8 4 0 2 5 4 2 4 3 4 4 4 4 5 4 5 6 0 7 1 6 6 4 6 6 0 4 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-57733 PC_UNIT_ASY_RV-2 1
2 401-59335 RUBBER RETAINER (1)
3 401-65246 PC BOARD ASM (1)
4 SM-6040602-TT SCREW M4 L=6 (2)
5 SL-4040891-SC SCREW M4 L=8 (9)
6 401-58551 REMOVABLE CASE (1)
7 401-58286 USB BOARD (1)
8 HX-0023300-00 CLIP (4)
9 401-58261 IO BOARD (1)
10 401-58284 MOTION CONTROLER (1)
11 401-63733 IP-V1 PCB SET (1)
12 401-58278 ILLUMINATION CONTROL BOARD (1)
13 401-58478 PC FAN ASM (1)
14 401-57181 PC TOP PLATE (1)
15 401-57182 PC CASE (1)
16 401-57183 POWER SUPPLY BRACKET (1)
17 401-57184 BOARD FIXED BRACKET (1)
18 401-57185 HDD BRACKET (1)
19 401-69071 PC FRONT PANEL(NEW PC) (1)
20 401-57187 BEZEL FIXED PLATE (1)
21 401-57188 USB PC BOARD BASE PLATE (1)
22 401-57189 PC BOARD RETAINER (1)
23 401-57191 RUBBER (1)
24 401-57192 COVER SCREW (2)
25 HX-0023300-0E NYLON BAND (1)
26 HM-0004800-10 FINGER GUARD (1)
27 SM-6030402-TT SCREW M3 L=4 (2)
28 SM-6030602-TT SCREW M3 L=6 (16)
29 SM-6030802-TT SCREW M3 L=8 (2)
30 EZ-1474020-11 POWER ATX (ENSP3-450P-S20-H1V) (1)
31 SM-1030801-SC SCREW M3 L=8 (8)
32 SL-4030891-SC SCREW M3X8 (35)
33 EZ-1756676-11 BATTERY (BS10A-H24/2.0L) (1)
34 SL-4043591-SC SCREW (4)
35 WS-0310002-KN SPRING WASHER M3 (2)
36 WP-0320501-SC WASHER M3 (2)
37 NM-6040002-SN NUT M4 (4)
38 401-59333 PCI SLOT BRACKET (3)
39 401-59334 SLOT COVER (1)
40 401-58264 USB3.0 EXTENSION BOARD (1)
41 401-57735 REAR_ELECT_UNIT_ASY_RV-2 1
42 401-58532 LOCK NUT (1)
43 SM-4040855-SN SCREW M4 L=8 (12)
44 EZ-7300011-95 SHEET MARK(BNM7PN10)9.5X1M WHT (0.1)
45 WT-0430002-KN WASHER M4 (12)
46 401-58506 IOC PCB ASM (1)
47 401-57213 CONNECTER PANEL BRACKET1 (1)
48 401-57214 CONNECTER PANEL BRACKET2 (1)
49 401-57215 REAR CONNECTER BRACKET (1)
50 401-57216 AIR MACHINE BRACKET (1)
51 401-57217 LUN CONNECTOR PLATE (1)
52 401-57218 REAR ELECTRIC BASE (1)
53 401-57219 REAR BASE BRACKET (1)
54 401-57220 POWER_BRACKET (1)
55 401-57221 POWER SUPPLY CABLE BRACKET (1)
56 401-57225 CONNECTOR PANEL GUARD (1)
57 401-58290 MOTOR CONTROLER (1)
58 401-58288 STOPPER (2)
59 400-63473 DIN_RAIL
(1)
60 401-57227 BAR_GROUND (1)
61 HX-0033900-00 STUD (6)
62 HK-0883500-10 BLOCK TERMINAL (7)
63 HK-0858900-00 BLOCK TERMINAL (1)
64 401-57288 CABLE DUCT W30 L160 (1)
65 401-57289 CABLE DUCT W30 L175 (1)
66 401-57290 CABLE DUCT W30 L260 (1)
67 401-57291 CABLE DUCT W40 L240 (1)
68 401-57292 CABLE DUCT W40 L260 (1)
69 401-57293 CABLE DUCT W40 L480 (1)
70 401-58253 NOISE FILTER (1)
71 HK-0895500-30 BLOCK TERMINAL (1)
72 HB-0007800-0B TIMER (1)
73 HK-0896200-80 CONNECTOR (1)
74 SM-6040602-TT SCREW M4 L=6 (5)
75 SM-6040802-TT SCREW M4 L=8 (17)
76 SM-6050802-TT SCREW M5 L=8 (8)
77 SM-6061002-TT SCREW M6 L=10 (2)
78 WP-0430801-SC WASHER M4 (5)
79 SL-4030691-SC SCREW M3 L=6 (12)
80 SL-4030891-SC SCREW M3X8 (2)
81 SL-4040891-SC SCREW M4 L=8 (31)
82 SL-4041691-SC SCREW M4 L=16 (2)
83 401-58531 CORD LOCK (1)
84 SL-4041091-SC SCREW M4 L=10 (5)
85 401-58457 AIR WIRE ASM (1)
86 HX-0023300-00 CLIP (3)
87 PJ-3040405-04 ELBOW UNION (1)
88 401-58449 IF-U WIRE ASM 1
89 401-58450 IF-L WIRE ASM 1
- -

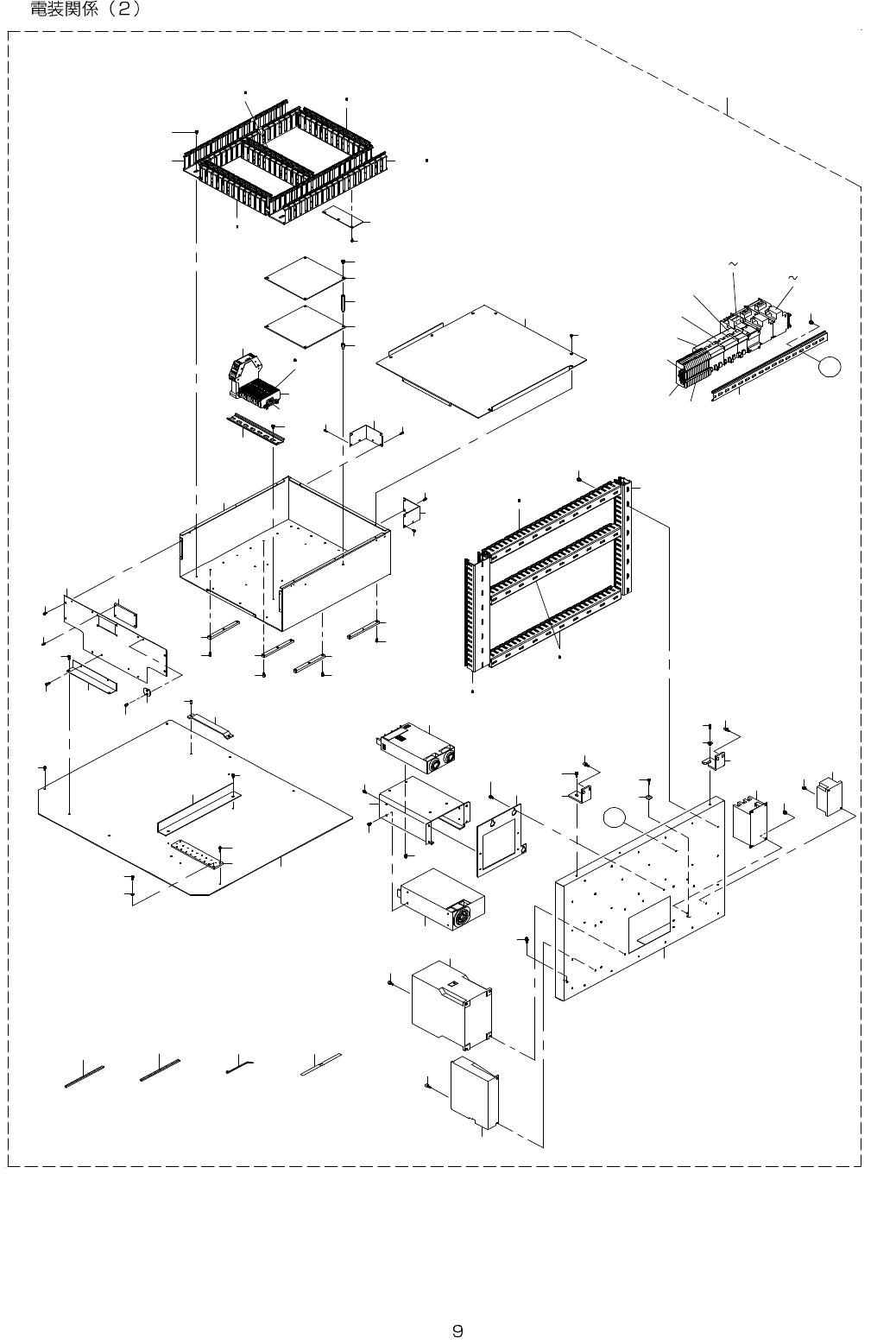

5. ELECTRIC APPARATUS COMPONENTS(2)
4
3
2
5
6
7
8
9
1 0
1 1
1 3
1 2
1 4
1 5
1 6
1 8
1 7
1 9
2 0
2 1 2 4
2 5
2 6
2 9
3 0
2 7
2 8
3 1 3 3
3 6
3 5
3 7
3 8
4 0
2 5
4 2
4 3 4 4
4
4 5
4 5 6 0
7 1 6 6
4 6 6 0
4 6 6 0
4 7
4 8 6 6
4 8 6 6
4 9
5 0
5 1
5 1
5 6
5 3
5 4
5 7
5 8
5 9
6 6
6 6
6 6
6 6
6 3
6 6
6 6
6 7
6 4
6 8
6 2
6 2
6 9
5 2
5 2
5 2
5 2
5 2
7 0
7 0
6 4
6 0
6 0
6 3 2 0
6 3
6 3
2 0
6 3
2 0
6 3
6 3
6 0
5 2
6 1
1
4 6 6 0
5 5
A
A
6 3
3 9
4 1
6 5
6 7
6 2
6 2
6 6
3 4
6 3
- -

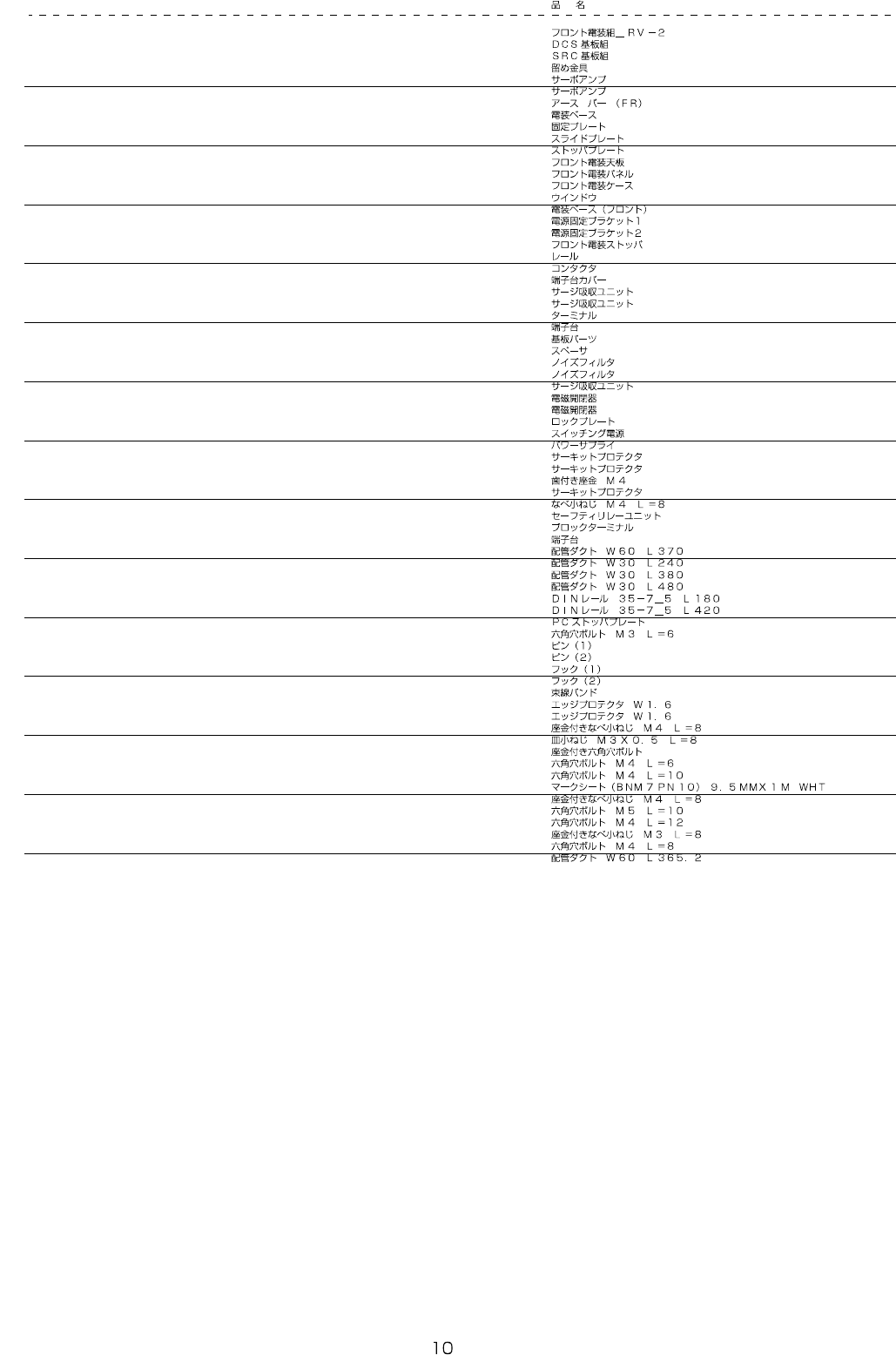

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-57734 FRNT_ELECT_UNIT_ASY_RV-2 1
2 401-58508 DCS PCB ASM (1)
3 401-58507 SRC PCB ASM (1)
4 401-58288 STOPPER (4)
5 401-58293 SERVO AMPLIFIER (1)
6 401-58294 SERVO AMPLIFIER (1)
7 401-57196 GROUND_BAR (FR) (1)
8 401-57197 ELECTRICAL BASE (1)
9 401-57198 FIXED PLATE (1)
10 401-57199 SLIDE PLATE (1)
11 401-57200 STOPPER PLATE (1)
12 401-57201 ELECTRICAL FRONT TOP PANEL (1)
13 401-57202 FRONT ELECTRICAL PANEL (1)
14 401-57203 FRONT ELECTRICAL CASE (1)
15 401-57204 WINDOW (1)
16 401-57205 ELECTRICAL BASE (FRONT) (1)
17 401-57206 POWER SUPPLY FIXED BRACKET 1 (1)
18 401-57207 POWER SUPPLY FIXED BRACKET 2 (1)
19 401-57208 FRONT ELECTRICAL STOPPER (1)
20 401-57210 RAIL (4)
21 HA-0053000-00 MAGNETIC CONTACTOR (1)
22 HA-0053000-20 MAGNETIC CONTACTOR (1)
23 HA-0053000-30 MAGNETIC CONTACTOR (1)
24 HA-0053000-40 MAGNETIC CONTACTOR (1)
25 HK-0858900-00 BLOCK TERMINAL (2)
26 HK-0883500-1A BLOCK TERMINAL (15)
27 HX-0033900-00 STUD (4)
28 HX-0033900-0G BOARD SPACER (4)
29 HN-0039800-00 NOISE FILTER (1)
30 HN-0038100-0A NOISE FILTER (1)
31 HA-0067200-20 MAGNETIC CONTACTOR (2)
32 HA-0068700-00 MAGNETIC CONTACTOR (2)
33 HA-0068700-10 MAGNETIC CONTACTOR (2)
34 401-59328 LOCK PLATE (1)
35 401-58528 POWER SUPPLY (1)
36 HX-0071400-00 POWER SUPPLY (1)
37 HA-0068800-00 CIRCUIT PROTECTOR (1)
38 401-69176 CIRCUIT PROTECTOR (1)
39 WT-0430002-KN WASHER M4 (12)
40 HA-0068900-0A CIRCUIT PROTECTOR (1)
41 SM-4040855-SN SCREW M4 L=8 (12)
42 HB-0015800-0A RELAY (1)
43 HK-0883500-10 BLOCK TERMINAL (12)
44 HK-0883500-1B BLOCK TERMINAL (2)
45 401-59198 CABLE DUCT W60 L370 (2)
46 401-59199 CABLE DUCT W30 L240 (3)
47 401-59200 CABLE DUCT W30 L380 (1)
48 401-59201 CABLE DUCT W30 L480 (3)
49 401-59202 DIN RAIL 35-7_5 L180 (1)
50 401-59203 DIN RAIL 35-7_5 L420 (1)
51 401-59327 PC STOPPER PLATE (2)
52 SM-6030602-TT SCREW M3 L=6 (14)
53 401-59329 PIN(1) (1)
54 401-59330 PIN(2) (1)
55 401-59331 HOOK(1) (1)
56 401-59332 HOOK(2) (1)
57 HX-0023300-00 CLIP (20)
58 401-58595 EDGE PROTECT W1.6 (0.14)
59 401-58595 EDGE PROTECT W1.6
(0.14)
60 SL-4040891-SC SCREW M4 L=8 (23)
61 SM-1030801-SC SCREW M3 L=8 (10)
62 SL-6041292-TN SCREW (6)
63 SM-6040602-TT SCREW M4 L=6 (23)
64 SM-6041002-TN BOLT (3)
65 EZ-7300011-95 SHEET MARK(BNM7PN10)9.5X1M WHT
(0.2)
66 SL-4040891-SC SCREW M4 L=8 (48)
67 SM-6051002-TT SCREW M5 L=10 (6)
68 SM-6041202-TT SCREW M4 L=12 (1)
69 SL-4030891-SC SCREW M3 L=8 (8)
70 SM-6040802-TT SCREW M4 L=8 (4)
71 401-63413 CABLE DUCT W60 L365.2 (1)
