- - 15 . MAR KIN G U NIT CO MP ON ENT S (1) 3 5 6 6 7 8 1 5 1 6 1 7 1 9 2 0 2 1 2 2 2 4 2 5 2 6 2 6 2 7 2 9 3 0 3 2 3 3 3 3 3 4 3 5 3 5 3 6 5 7 6 0 6 1 3 9 4 1 4 2 4 4 4 5 4 5 4 8 1 0 5 1 5 1 5 5 5 5 5 4 5 2 4 6 5 8 3 …
- -

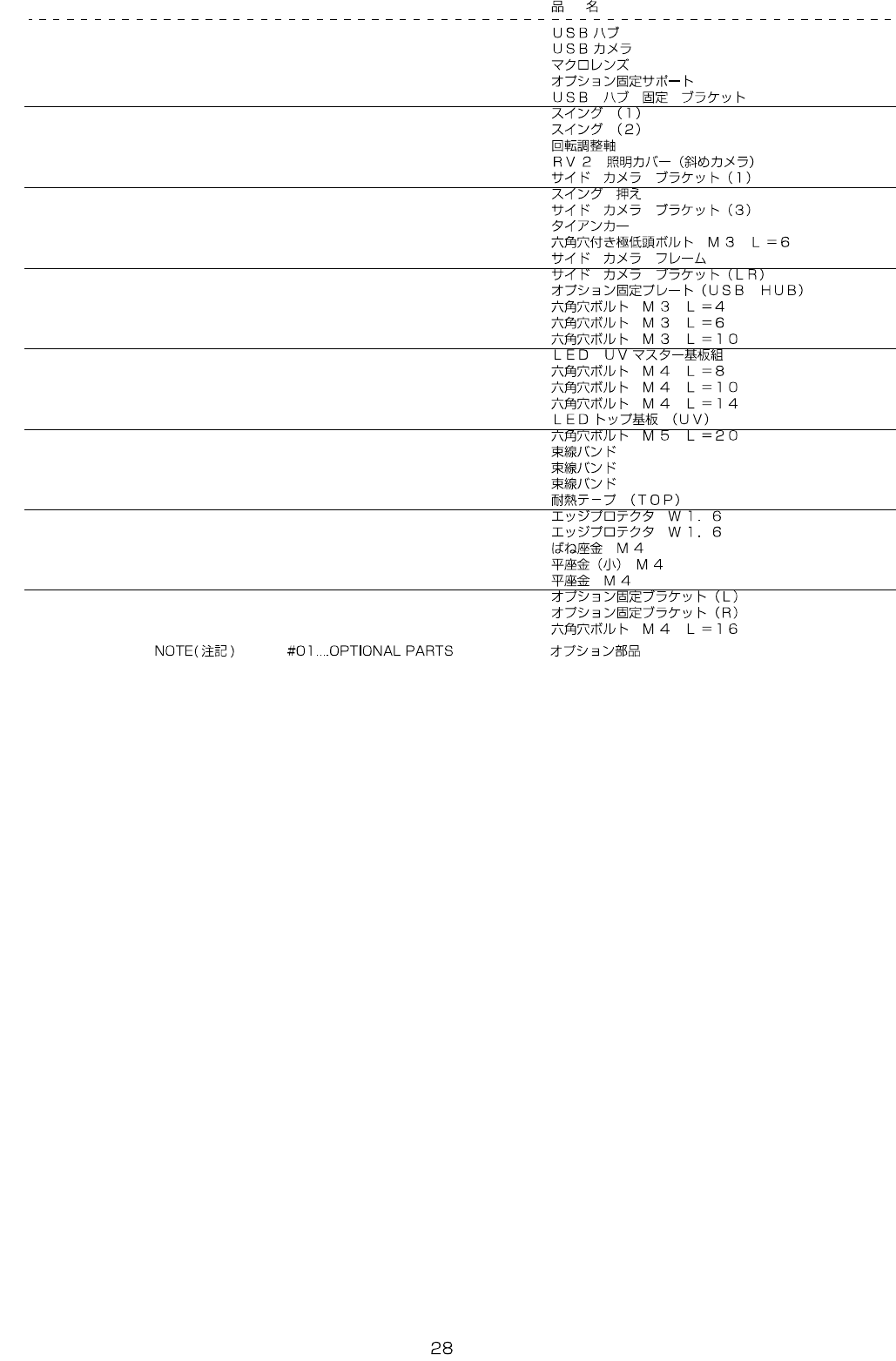

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-58269 USB HUB 2
2 401-58248 USB CAMERA 4
3 401-58272 MACRO LENS 4
4 401-60045 OPTION FIXED SUPPORT 1
5 401-60062 USB HUB FIXED BRACKET 1
6 401-60063 SWING (1) 4
7 401-60064 SWING (2) 4
8 401-60065 ROTATION ADJUST AXIS 4
9 401-60038 RV2 ILLCOVER(SIDE CAMERA) 2
10 401-60066 SIDE CAMERA BRACKET (1) 2
11 401-60067 SWING RETAINER 8
12 401-60068 SIDE CAMERA BRACKET (3) 2
13 401-58599 TIE ANCHOR 6
14 401-57071 BOLT SUPER LOW HEAD M3 L=6 12
15 401-60069 SIDE CAMERA FRAME 1
16 401-60070 SIDE CAMERA BRACKET (LR) 2
17 401-60046 OPTION FIXED PLATE (USB HUB) 1
18 SM-6030402-TT SCREW M3 L=4 20
19 SM-6030602-TT SCREW M3 L=6 6
20 SM-6031002-TT SCREW M3 L=10 16
21 401-51156 LED UV MASTER PCB ASM 1
22 SM-6040802-TT SCREW M4 L=8 2
23 SM-6041002-TT SCREW M4 L=10 17
24 SM-6041402-TT SCREW M4 L=14 2
25
#01
401-58287 LED TOP BOARD (UV) 1
26 SM-6052002-TT SCREW M5 L=20 10
27 HX-0023300-00 CLIP 30
28 HX-0023300-0E NYLON BAND 71
29 HX-0023300-0G CABLE BAND 12
30 401-57050 TAPE (TOP)_HEAT-RESISTING 1
31 401-58595 EDGE PROTECT W1.6 0.03
32 401-58595 EDGE PROTECT W1.6 0.03
33 401-60040 SPRING WASHER M4 16
34 401-60041 SMALL WASHER M4 8
35 401-60042 WASHER M4 8
36 401-60043 OPTION FIXED BRACKET (L) 1
37 401-60044 OPTION FIXED BRACKET (R) 1
38 SM-6041602-TT SCREW M4 L=16 8
- -
15. MARKING UNIT COMPONENTS(1)
3
5
6
6
7
8
1 5
1 6
1 7
1 9
2 0
2 1
2 2
2 4
2 5
2 6
2 6
2 7
2 9
3 0
3 2
3 3
3 3
3 4
3 5
3 5
3 6
5 7
6 0
6 1
3 9
4 1
4 2
4 4
4 5
4 5
4 8
1 0
5 1
5 1
5 5
5 5
5 4
5 2
4 6
5 8
3 7
3 7
3 7
3 7
3 7
4 7
4 7
4 7
1 0
5 4
3 7
5 9
5 6
3 1
4 7
4 9
5 3
3 7
2 8
4 3
3 5
4 3
2 8
4 3
3 5
4
4 0
1 3
4 4
3 7
4 7
4 7
4 7
4 7
4 7
3 8
3 8
4 8
4 8
1 2
4 7
9
3 7
4 3
2 8
4 7
2 3
3 7
4 4
4 7
1 8
4 7
4 7
4 7
3 7
1 4
1 1
A
A
3 9
3 9
3
3
7
7
1
2
5 0
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-51132 MARKING DRIVE PCB ASM 1
2 401-58561 MARKING_MAIN ASM 1
3 401-58539 SENSOR (3)
4 401-58540 SENSOR (2)
5 401-60375 BEARING (F686ZZ) (1)
6 401-60376 BALL SLIDE (BSP720SLT1) (2)
7 401-60377 NUT PLATE (3)
8 401-60378 STOPPER PLATE (1)
9 401-60379 LM GUIDE (2SRS7MUU+190LM) (1)
10 WS-0310002-KN SPRING WASHER M3 (2)
11 401-60025 COVER BASE (1)
12 401-60026 GUIDE BASE (1)
13 401-60380 SHAFT HOLDER (1) (1)
14 401-60381 SHAFT HOLDER (2) (1)
15 401-60382 SHAFT (1)
16 401-60383 RACK OIL RETAINER (1)
17 401-60384 RACK PROCESSING (1)
18 401-60385 OIL COVER (1)
19 401-60386 Z-GEAR OIL RETAINER (1)
20 401-60027 PC BOARD BRACKET (1)
21 401-60028 SENSOR BRACKET (1)
22 401-60387 COLLAR (1)
23 401-60029 ABSORBER BRACKET (1)
24 401-60030 CAP (9MM) (1)
25 401-60388 STOPPER BLOCK (1)
26 401-60053 RACK COVER (2)
27 401-60389 SPUR GEAR (S80SU40B_0506) (1)
28 401-58599 TIE ANCHOR (4)
29 401-60035 COLLAR (OPEN) (1)
30 401-60390 COLLAR (CLOSE) (1)
31 401-60391 SENSOR DOG (1)
32 401-60392 SENSOR DOG (CLOSE) (1)
33 401-60393 TRUSS SCREW M2X3 SUS (4)
34 401-60394 O-RING (CO 00006 A) (1)
35 401-60395 SPACER (BSB-320E) (8)
36 401-60396 SHIELD COVER (1)
37 SM-6030502-TT SCREW M3 L=5 (16)
38 SM-6030602-TT SCREW M3 L=6 (2)
39 SM-6030802-TT SCREW M3 L=8 (6)
40 SM-6031002-TT SCREW M3 L=10 (4)
41 SM-6031202-TT SCREW M3 L=12 (2)
42 SM-6031402-TT SCREW M3 L=14 (2)
43 SM-6040602-TT SCREW M4 L=6 (6)
44 SM-6041002-TT SCREW M4 L=10 (4)
45 SM-6041202-TT SCREW M4 L=12 (2)
46 HX-0023300-00 CLIP (8)
47 SM-6020402-TT SCREW M2 L=4 (36)
48 SM-6020502-TT SCREW M2 L=5 (1)
49 401-60397 BEARING(F695ZZ) (1)
50 401-60398 SHOCK ABSORBER (RBC0805C) (1)
51 WS-0410002-KN SPRING WASHER M4 (2)
52 SM-8030302-TP SCREW M3X0.5 L=3 (1)
53 SM-8040602-TP SCREW M4X0.7 L=6 (1)
54 WP-0320501-SC WASHER M3 (2)
55 WP-0430801-SC WASHER M4 (2)
56 401-58565 THETA_MOTOR ASM (1)
57 401-60399 MOTOR BRACKET (1)
58 SM-4020501-SC SCREW M2 L=5 (2)
59 SM-8030302-TP SCREW M3X0.5 L=3 (1)
60 401-58482 MT MOTOR WIRE ASM (1)
61 401-60400 SPUR GEAR(MARKING) (1)
