- - 17 . BAC K UP U NIT C O MPON ENTS 1 2 4 6 7 8 8 1 1 1 2 1 3 1 4 2 1 2 2 2 3 2 3 2 3 2 4 2 3 2 4 2 5 2 7 2 9 3 0 3 2 3 2 3 3 3 4 3 6 3 8 3 8 3 8 4 2 4 2 4 3 4 3 4 3 4 2 3 4 1 9 1 8 3 5 2 3 5 2 8 2 8 5 2 6 4 3 4 2 9 …
- -

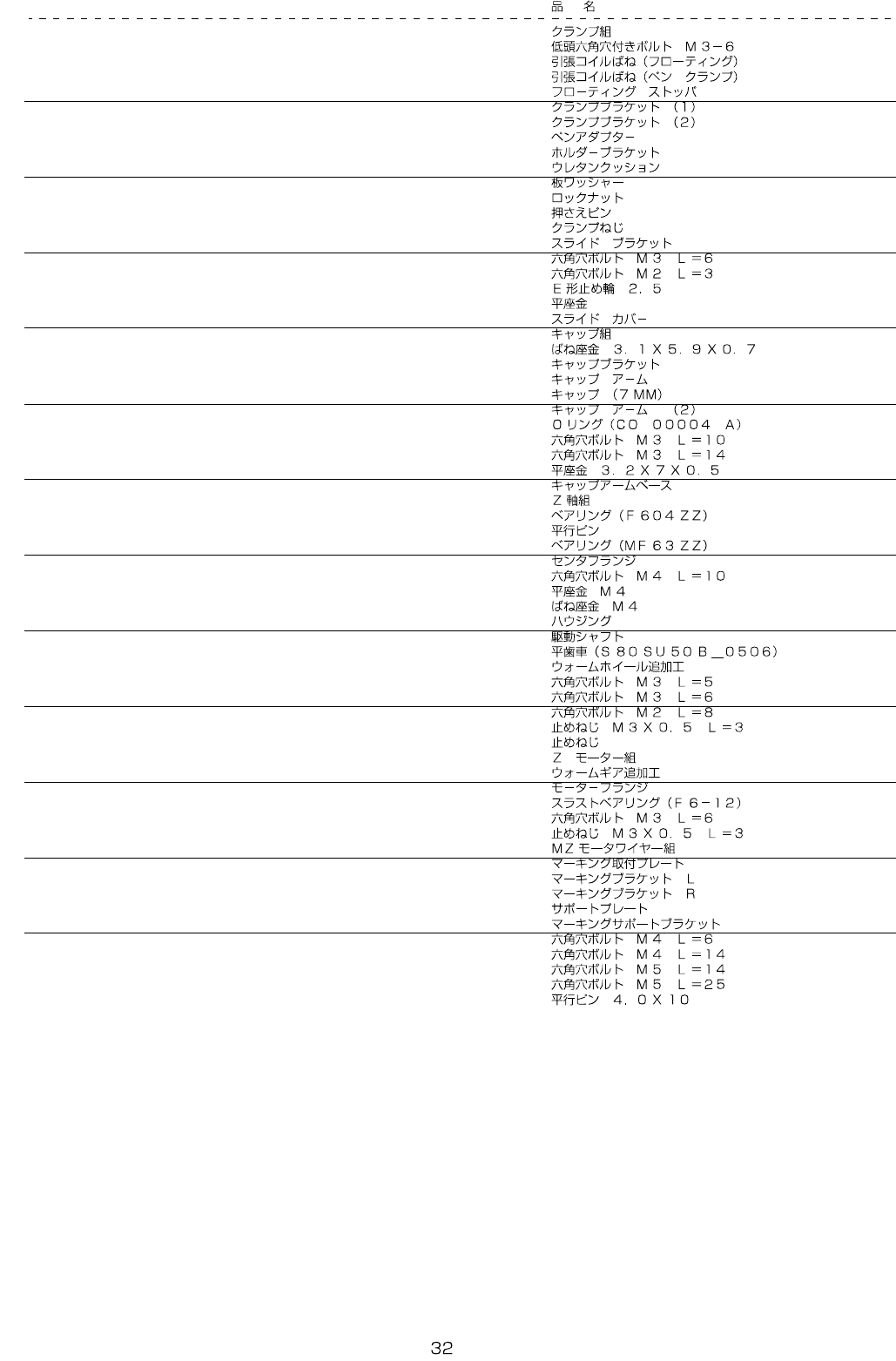

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-58562 CLAMP ASM 1
2 401-60036 LOW HEAD CAP SCREW M3-6 (2)
3 401-60407 EXTENSION SPRING (FLOATING) (1)
4 401-60408 EXTENSION SPRING (PEN CLAMP) (1)
5 401-60409 FLOATING STOPPER (1)
6 401-60410 CLAMP BRACKET (1) (1)
7 401-60411 CLAMP BRACKET (2) (1)
8 401-60412 PEN ADAPTER (1)
9 401-60413 HOLDER BRACKET (1)
10 401-60414 URETHANE CUSHION (1)
11 401-60048 WASHER PLATE (1)
12 401-60049 LOCK NUT (1)
13 401-60050 RETAINER PIN (1)
14 401-60051 CLAMP SCREW (1)
15 401-60031 SLIDE BRACKET (1)
16 SM-6030602-TT SCREW M3 L=6 (6)
17 SM-6020302-UZ SCREW M2 L=3 (4)
18 RE-0250000-K0 E-RING 2.5 (2)
19 WP-0220300-SC WASHER (4)
20 401-60415 SLIDE COVER (1)
21 401-58563 CAP ASM 1
22 WS-0310002-KN SPRING WASHER M3 (4)
23 401-60418 CAP BRACKET (1)
24 401-60032 CAP ARM (1)
25 401-60033 CAP (7MM) (1)
26 401-60034 CAP ARM (2) (1)
27 401-60419 O-RING (CO 00004 A) (1)
28 SM-6031002-TT SCREW M3 L=10 (7)
29 SM-6031402-TT SCREW M3 L=14 (2)
30 WP-0320501-SC WASHER M3 (4)
31 401-60052 CAP ARM BASE (1)
32 401-58564 Z_SHAFT ASM 1
33 401-60420 BEARING(F604ZZ) (2)
34 PH-0200063-C0 PIN (2)
35 401-60421 BEARING(MF63ZZ) (1)
36 401-60422 CENTER FLANGE (1)
37 SM-6041002-TT SCREW M4 L=10 (2)
38 WP-0430801-SC WASHER M4 (2)
39 WS-0410002-KN SPRING WASHER M4 (2)
40 401-60423 HOUSING (1)
41 401-60424 DRIVING SHAFT (1)
42 401-60425 SPUR GEAR (S80SU50B_0506) (1)
43 401-60426 WORM WHEEL PROCESSING (1)
44 SM-6030502-TT SCREW M3 L=5 (1)
45 SM-6030602-TT SCREW M3 L=6 (2)
46 SM-6020802-TT SCREW M2 L=8 (2)
47 SM-8030302-TP SCREW M3X0.5 L=3 (2)
48 SM-8040602-TP SCREW M4X0.7 L=6 (2)
49 401-58566 Z MOTOR ASM (1)
50 401-60427 WORM GEAR PROCESSING (1)
51 401-60428 MOTOR FLANGE (1)
52 401-60429 THRUST BEARING (F6-12) (1)
53 SM-6030602-TT SCREW M3 L=6 (2)
54 SM-8030302-TP SCREW M3X0.5 L=3 (1)
55 401-58481 MZ MOTOR WIRE ASM (1)
56 401-60020 MARKING FIXING PLATE 1
57 401-60021 MARKING BRACKET L 1
58 401-60022 MARKING BRACKET R 1
59 401-60023 SUPPORT PLATE 1
60 401-60024 MARKING SUPPORT BRACKET 2
61 SM-6040602-TT SCREW M4 L=6 4
62 SM-6041402-TT SCREW M4 L=14 8
63 SM-6051402-TT SCREW M5 L=14 4
64 SM-6052502-TT SCREW M5 L=25 6
65 PH-0400105-S0 PIN 4.0X10 4
- -
17. BACK UP UNIT COMPONENTS
1
2
4
6
7
8
8
1 1
1 2
1 3
1 4
2 1
2 2
2 3
2 3
2 3
2 4
2 3
2 4
2 5
2 7
2 9
3 0
3 2
3 2
3 3
3 4
3 6
3 8
3 8
3 8
4 2
4 2
4 3
4 3
4 3
4 2
3 4
1 9
1 8
3 5
2 3
5
2 8
2 8
5
2 6
4 3
4 2
9
2 6
4
7
3 7
1 6
2 3
2 0
1 5
H
G
F
E
A
C
D
B
2 9
2 8
5
1 7
5
2 8
B
D
A
C
F
E
1 0
1 0
1 0
1 0
1 0
1 0
1 0
4 0
4 0
4 1
4 1
3 9
H
G
1 0
1 2
3 1
3 1
2 0
2 0
2 3
2 0
2 3
2 0
3
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-58474 BACK UP SENSOR U ASM 1
2 401-58475 BACK UP SENSOR L ASM 1
3 401-60430 BACK UP SPONGE BLUE 1
4 PH-0300085-S0 PIN 2
5 RE-0400000-K0 E-RING 4 10
6 401-60431 RUBBER MAGNET 1
7 PC-0124010-00 SPEED CONTROLLER 2
8 PJ-3040405-04 ELBOW UNION 2
9 401-60432 SLIDE SHAFT 1
10 401-60433 LINK PLATE 8
11 401-60434 BASE 1
12 401-60435 BEARING HOLDER 2
13 401-60436 ADJUSTMENT SCREW HOLDER 1
14 401-60437 JOINT 1
15 401-60438 SLIDE BLOCK 1
16 401-60439 CYLINDER FITTING BRACKET 1
17 401-60440 SLIDE GUIDE (1) 1
18 401-60498 SLIDE GUIDE (2) 1
19 401-60499 TOP PLATE 1
20 401-60500 BEARING SPACER 5
21 401-60501 LM GUIDE 1
22 401-60502 CYLINDER 1
23 401-57238 BEARING 8
24 EZ-4456664-01 PIN(BGPML5-8-L16-F6) RETAINER 2
25 EZ-4456666-01 SPACER (CLBPM5-8-8) BEARING 1
26 EZ-4456667-01 SHAFT(SSFRZ8-34-F8-B3-P5-T8-X) 4
27 EZ-4456667-11 SHAFT(SSFRZ8-39-F8-B3-P5-T8-X) 1
28 EZ-4456668-11 RING (CIMRS5-10-1.0)_SHIM 10
29 401-60699 BEARING SHAFT 2
30 401-60701 STOPPER SCREW 1
31 EZ-4456671-01 WASHER (FWZJJ-D12-V9-P5-H1-T3) 2
32 401-60511 DOUBLE STICK TAPE (BACK UP) 2
33 401-60512 BEARING SHAFT 1
34 SM-1030401-SE SCREW M3 L=4 6
35 SM-6030502-TT SCREW M3 L=5 4
36 SM-6030602-TT SCREW M3 L=6 4
37 SM-6040602-TT SCREW M4 L=6 2
38 SM-6040802-TT SCREW M4 L=8 6
39 HX-0023300-00 CLIP 6
40 BT-0400251-EB URETHANE HOSE, BLACK 1.35
41 BT-0400251-EB URETHANE HOSE, BLACK 1.35
42 NM-6050002-SE NUT M5 4
43 WP-0531001-SC WASHER M5 4
