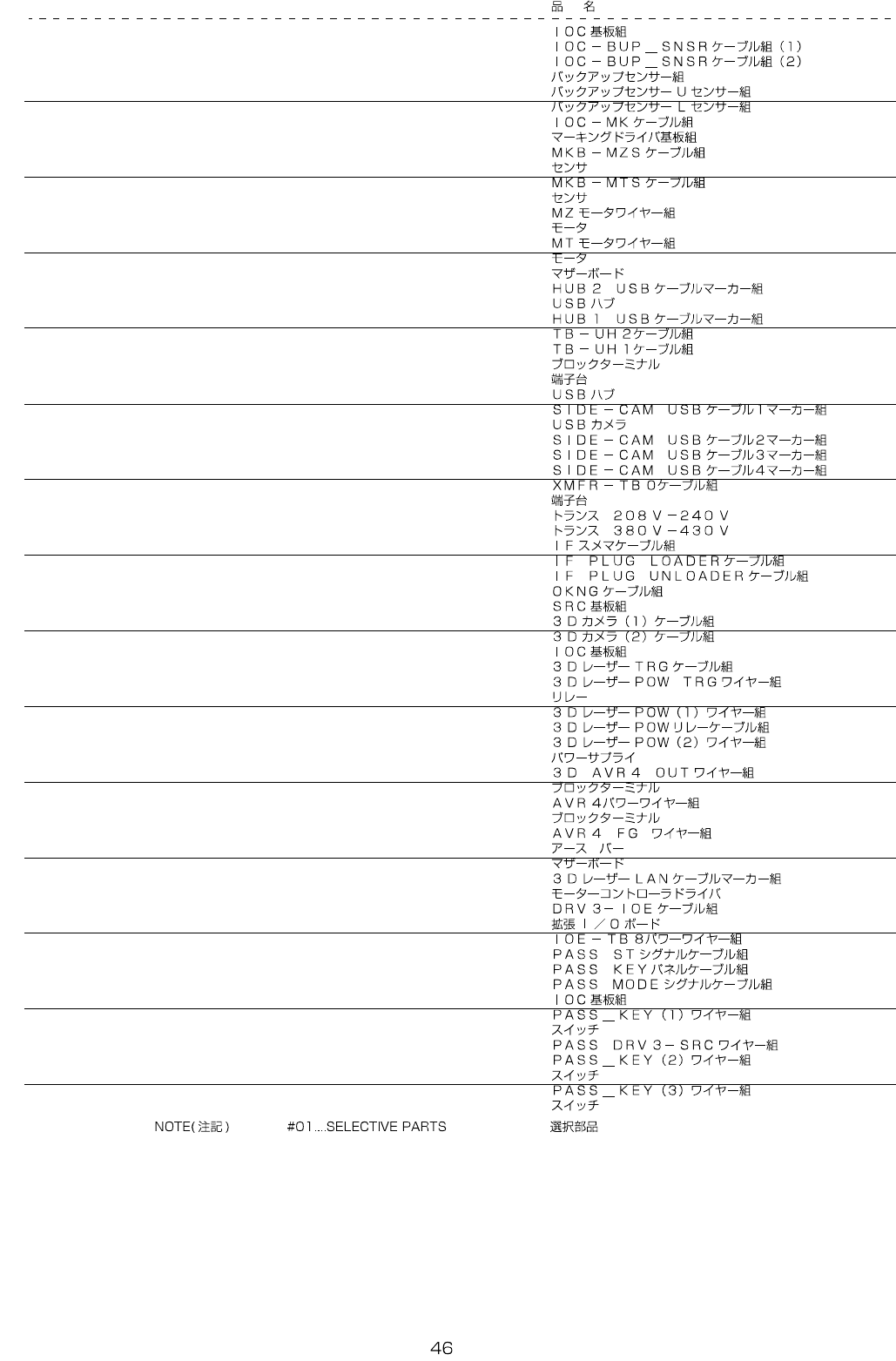

REF.NO NOTE PART NO D E S C R I P T I O N Qty

1 401-58506 IOC PCB ASM 1

2 401-58412 IOC-BUP_SNSR CABLE(1) ASM 1

3 401-58413 IOC-BUP_SNSR CABLE(2) ASM 1

4 401-58447 BACK UP SENSOR ASM 1

5 401-58474 BACK UP SENSOR U ASM 1

6 401-58475 BACK UP SENSOR L ASM 1

7 401-58417 IOC-MK CABLE ASM 1

8 401-51132 MARKING DRIVE PCB ASM 1

9 401-58428 MKB-MZS CABLE ASM 1

10 401-58539 SENSOR 1

11 401-58429 MKB-MTS CABLE ASM 1

12 401-58540 SENSOR 1

13 401-58481 MZ MOTOR WIRE ASM 1

14 HM-0022600-00 DC MOTOR 1

15 401-58482 MT MOTOR WIRE ASM 1

16 HM-0022700-00 DC MOTOR 1

17 401-58285 MOTHER BOARD 1

18 401-58500 HUB2 USB CABLE MARKER ASM 1

19 401-58269 USB HUB 1

20 401-58499 HUB1 USB CABLE MARKER ASM 1

21 401-58415 TB-UH2 CABLE ASM 1

22 401-58416 TB-UH1 CABLE ASM 1

23 HK-0883500-10 BLOCK TERMINAL 1

24 HK-0883500-1B BLOCK TERMINAL 1

25 401-58269 USB HUB 1

26 401-58501 SIDE-CAM USB CABLE1 MARKER ASM 1

27 401-58248 USB CAMERA 1

28 401-58502 SIDE-CAM USB CABLE2 MARKER ASM 1

29 401-58503 SIDE-CAM USB CABLE3 MARKER ASM 1

30 401-58504 SIDE-CAM USB CABLE4 MARKER ASM 1

31 401-58427 XMFR-TB0 CABLE ASM 1

32 HK-0895500-30 BLOCK TERMINAL 1

33

#01

401-58302 TRANSFORMER 1

34

#01

401-58303 TRANSFORMER 1

35 401-58483 IF SMEMA CABLE ASM 1

36 401-58484 IF PLUG LOADER CABLE ASM 1

37 401-58485 IF PLUG UNLOADER CABLE ASM 1

38 401-58486 OKNG CABLE ASM 1

39 401-58507 SRC PCB ASM 1

40 401-58418 3D CAMERA(1) CABLE ASM 1

41 401-58419 3D CAMERA(2) CABLE ASM 1

42 401-58506 IOC PCB ASM 1

43 401-58480 3D LASER TRG CABLE ASM 1

44 401-58423 3D LASER POW TRG WIRE ASM 1

45 HB-0018100-00 RELAY 1

46 401-58421 3D LASER POW(1) WIRE ASM 1

47 401-58424 3D LASER POW RELAY CABLE ASM 1

48 401-58422 3D LASER POW(2) WIRE ASM 1

49 HX-0071600-00 POWER SUPPLY 1

50 401-58420 3D AVR4 OUT WIRE ASM 1

51 HK-0883500-10 BLOCK TERMINAL 1

52 401-58425 AVR4 POWER WIRE ASM 1

53 HK-0883500-10 BLOCK TERMINAL 1

54 401-58426 AVR4 FG WIRE ASM 1

55 401-57227 BAR_GROUND 1

56 401-58285 MOTHER BOARD 1

57 401-58505 3D LASER LAN CABLE MARKER ASM 1

58 401-58290 MOTOR CONTROLER 1

59 401-58441 DRV3-IOE CABLE ASM 1

60 401-58246 IO BOARD 1

61 401-58442 IOE-TB8 POWER WIRE ASM 1

62 401-58443 PASS ST SIGNAL CABLE ASM 1

63 401-58444 PASS KEY PANEL CABLE ASM 1

64 401-58414 PASS MODE SIGNAL CABLE ASM 1

65 401-58506 IOC PCB ASM 1

66 401-58446 PASS_KEY(1) WIRE ASM 1

67 HA-0067400-00 SWITCH 1

68 401-58430 PASS DRV3-SRC WIRE ASM 1

69 401-58410 PASS_KEY(2) WIRE ASM 1

70 HA-0067500-00 SWITCH 1

71 401-58411 PASS_KEY(3) WIRE ASM 1

72 HA-0067600-00 SWITCH 1

R V - 2 - 3 D P A R T S L I S T
