- - 31 . HEAD CO MP ONEN T S(3) 2 3 4 6 7 8 1 0 9 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 2 1 2 2 2 2 2 2 2 7 2 8 2 8 2 9 2 9 3 0 3 1 3 2 3 3 5 1 A A B B 1 1 3 4 3 6 3 8 3 8 3 7 3 9 4 1 4 2 4 2 4 2 4 2 4 3 4 4 4 4 4 4 4 4 …
- -

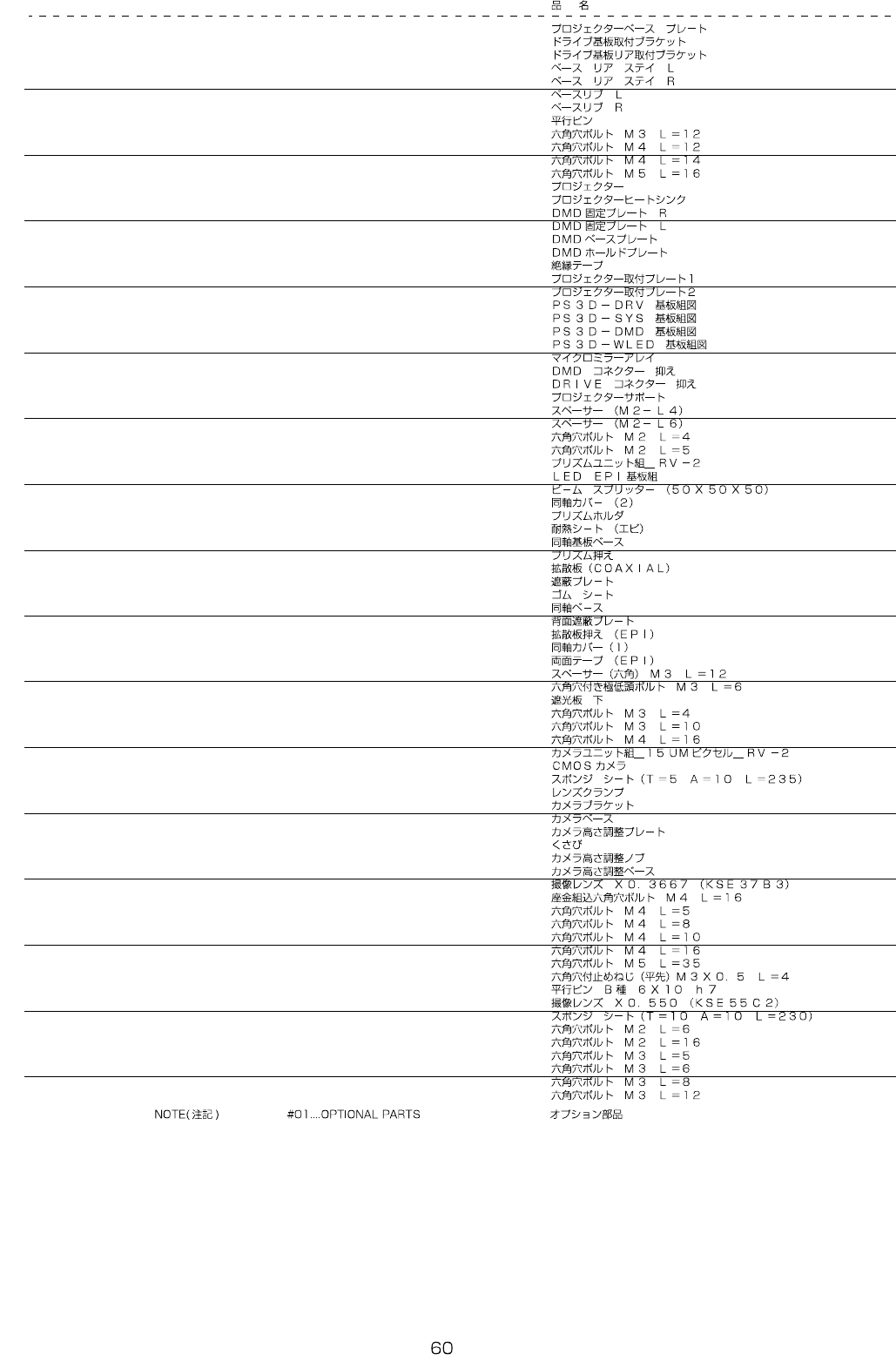

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-77932 PROJECTOR BASE PLATE 1
2 401-77933 DRIVE BOARD FIX BRACKET 3
3 401-77934 DRIVE BOARD RE FIX BRACKET 1
4 401-77935 BASE REAR STAY L 1
5 401-77936 BASE REAR STAY R 1
6 401-77937 BASE RIB L 1
7 401-77938 BASE RIB R 1
8 PH-0300082-C0 PIN 12
9 SM-6031202-TT SCREW M3 L=12 8
10 SM-6041202-TT SCREW M4 L=12 4
11 SM-6041402-TT SCREW M4 L=14 8
12 SM-6051602-TT SCREW M5 L=16 4
13 401-77939 PROJECTOR 1
14 401-77940 HEATSINK PROJECTOR 1
15 401-77941 DMD FIX PLATE R 1
16 401-77942 DMD FIX PLATE L 1
17 401-77943 DMD BASE PLATE 1
18 401-77944 DMD HOLD PLATE 1
19 401-77945 INSULATION TAPE 1
20 401-77946 PROJECTOR FIX PLATE1 1
21 401-77947 PROJECTOR FIX PLATE2 1
22 401-76696 PS3D-DRV PCB ASM 1
23 401-76697 PS3D-SYS PCB ASM 1
24 401-76698 PS3D-DMD PCB ASM 1
25 401-76699 PS3D-WLED PCB ASM 1
26 401-76734 MICROMIRROR ARRAY 1
27 401-78352 DMD CN RESTRAINED PLATE 1
28 401-78353 DRIVE CN RESTRAINED PLATE 1
29 401-78354 PROJECTOR SUPPORT 1
30 401-78355 SPACER M2-L4 4
31 401-79725 SPACER M2-L6 4
32 SM-6020402-TT SCREW M2 L=4 5
33 SM-6020502-TT SCREW M2 L=5 4
34 401-57737 PRISM_UNIT_ASY_RV-2 1
35 401-51133 LED EPI PCB ASM (1)
36 EZ-1856506-11 BEAM SPLITTER (50X50X50) (1)
37 401-57057 COVER (2)_COAXIAL (1)
38 401-57058 PRISM HOLDER (1)
39 401-57059 HEAT RESISTANT TAPE (EPI) (1)
40 401-57060 BASE_BARREL SHAFT PC BOARD (1)
41 401-57061 PRISM RETAINER (1)
42 401-57062 ILLUMINATOR (COAXIAL) (1)
43 401-57063 PLATE_SHIELD (1)
44 401-57064 SHEET_RUBBER (2)
45 401-57065 BASE_COAXIAL (1)
46 401-57066 PLATE_SHIELD REAR (1)
47 401-57067 RETAINER (EPI)_ILLUMINATOR (2)
48 401-57068 COAXIAL COVER(1) (1)
49 401-57069 TAPE (EPI)_DOUBLE STICK (4)
50 401-57070 SPACER (HEXAGON) M3 L=12 (4)
51 401-57071 BOLT SUPER LOW HEAD M3 L=6 (18)
52 401-59210 PLATE(LOWER) INTERCEPTION (1)
53 SM-6030402-TT SCREW M3 L=4 (2)
54 SM-6031002-TT SCREW M3 L=10 (6)
55 SM-6041602-TT SCREW M4 L=16 (6)
56 401-57738 CAM_UNIT_ASY_15UM-PIX_RV-2 1
57 401-58263 CMOS CAMERA (1)
58 401-57073 SPONGE SHEET(T=5 A=10 L=235) (1)
59 401-57074 LENS CLAMP (1)
60 401-57075 CAMERA BRACKET (2)
61 401-57076 CAMERA BASE (1)
62 401-57077 PLATE_HEIGHT ADJUSTMENT (1)
63 401-57078 WEDGE (1)
64 401-57079 KNOB_HEIGHT ADJUSTMENT (1)
65 401-57080 ADJUSTMENT HEIGHT BASE (1)
66 EZ-1856504-12 IMAGING_LENS X0.366 (KSE37B3) (1)
67 401-59255 SCREW WASHER ASSEMBLY M4 L=16 (4)
68 SM-6040502-TT SCREW M4 L=5 (1)
69 SM-6040802-TT SCREW M4 L=8 (4)
70 SM-6041002-TT SCREW M4 L=10 (9)
71 SM-6041602-TT SCREW M4 L=16 (4)
72 SM-6053502-TT SCREW M5 L=35 (1)
73 401-59259 SET SCREW M3X0.5 L=4 (1)
74 401-59326 PARALLEL PIN TYPE B 6X10 H7 (2)
75
#01
EZ-1856505-12 IMAGING_LENS X0.550 (KSE55C2) 1
76
#01
401-60047 SPONGE SHEET(T=10 A=10 L=230) 1
77 SM-6020602-TT SCREW M2 L=6 8
78 SM-6021602-TT SCREW M2 L=16 4
79 SM-6030502-TT SCREW M3 L=5 1
80 SM-6030602-TT SCREW M3 L=6 8
81 SM-6030802-TT SCREW M3 L=8 2
82 SM-6031202-TT SCREW M3 L=12 2
- -

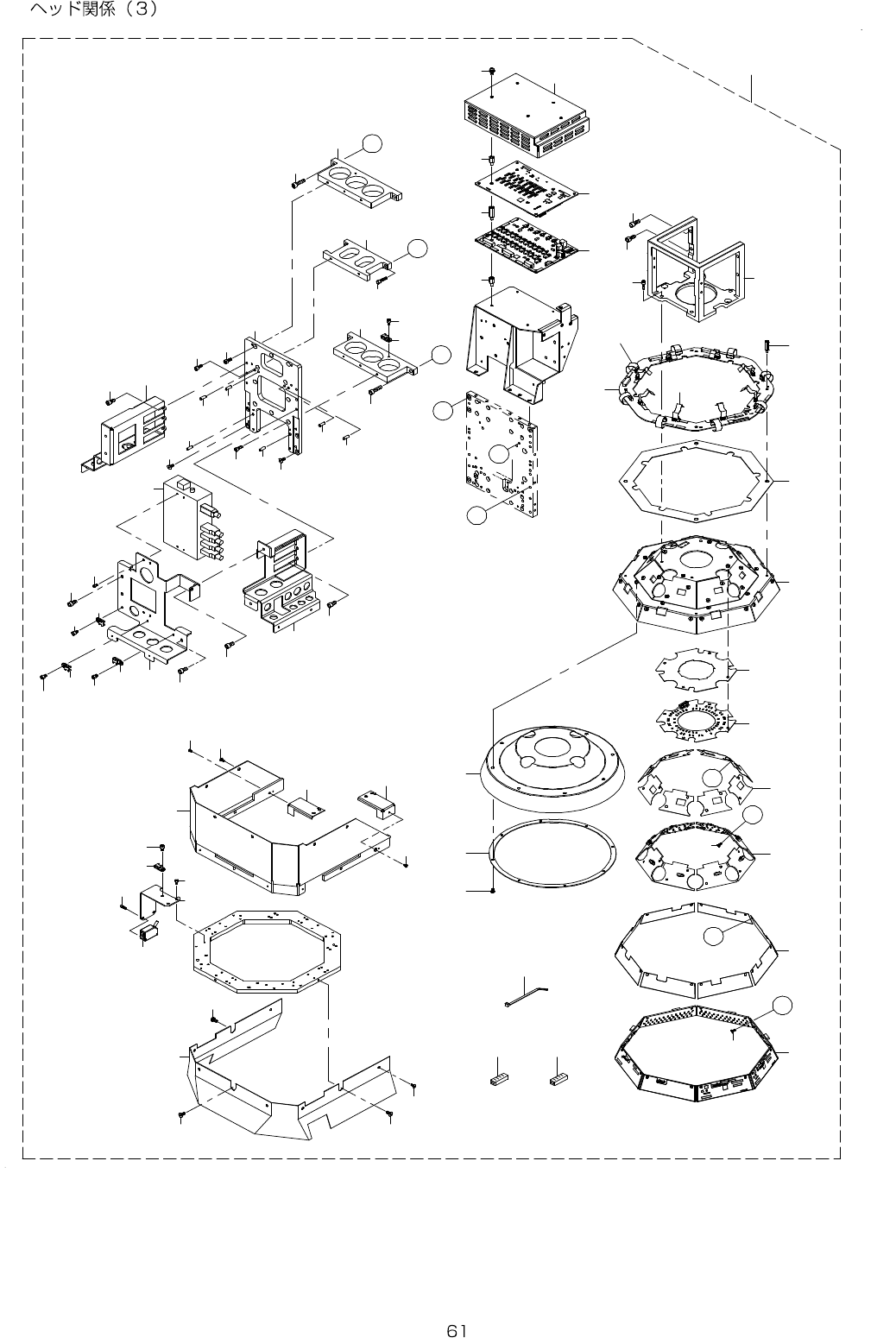

31. HEAD COMPONENTS(3)
2
3
4
6
7
8
1 0
9
1 2
1 3
1 4
1 5
1 6
1 7
1 8
1 9
2 0
2 1
2 2
2 2
2 2
2 7
2 8
2 8
2 9
2 9
3 0
3 1
3 2
3 3 5
1
A
A
B
B
1 1
3 4
3 6
3 8
3 8
3 7
3 9
4 1
4 2
4 2
4 2
4 2
4 3
4 4
4 4
4 4
4 4
4 6
4 6
4 6
4 2
4 7
4 8
4 8
4 8
4 8
4 8
5 3
5 3
5 2
5 1
5 4
4 5
4 5
5 4
4 5
5 4
3 5
5 4
2 5
4 4
4 4
2 2
2 2
D
D
E
E
C
4 0
C
5 0
4 9
2 4
2 6
2 5
3 5
5 4
2 3
- -

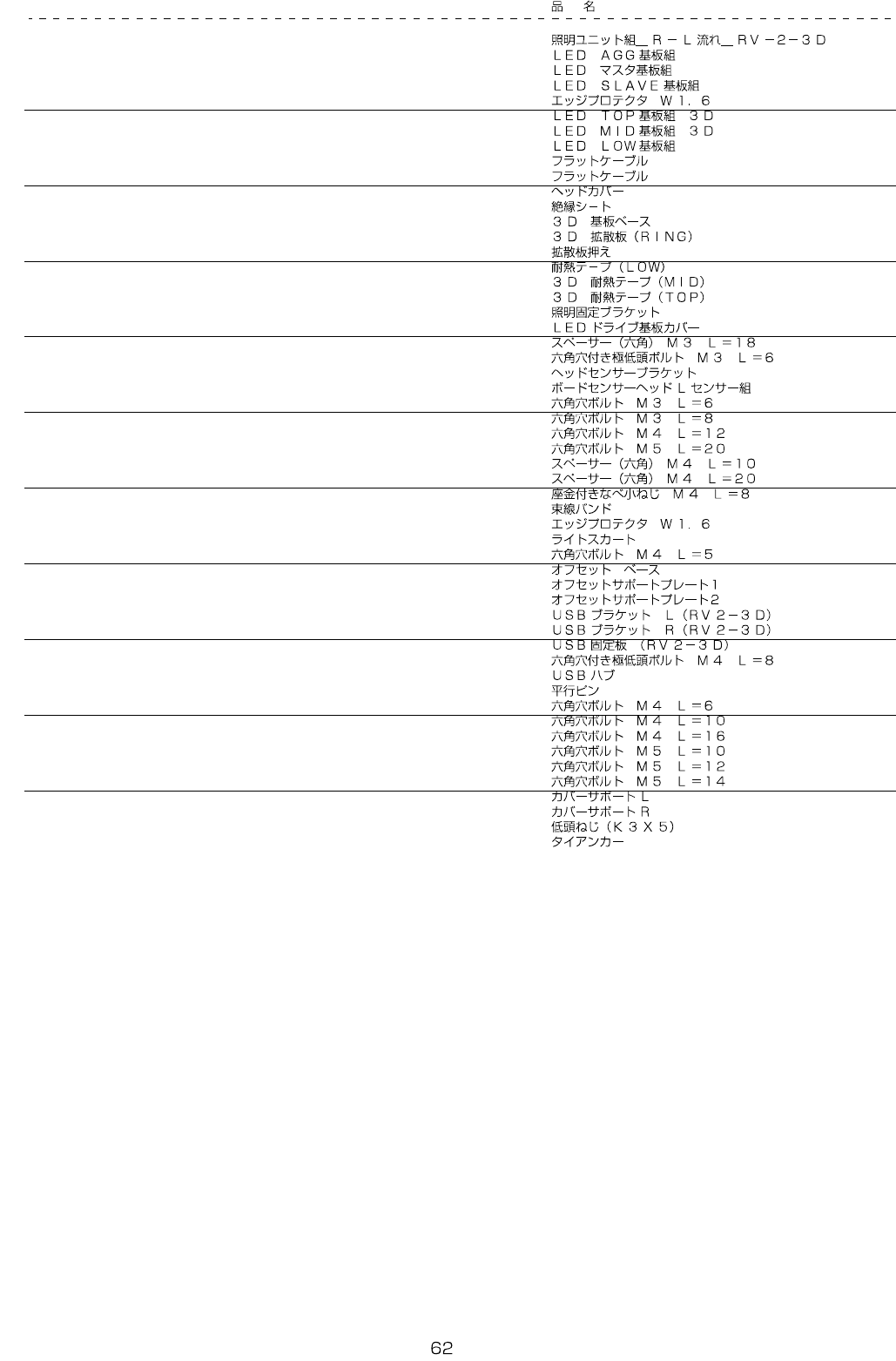

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-77902 ILLUMI_UNIT_ASY_R-L_RV-2-3D 1
2 401-51131 LED AGG PCB ASM (1)
3 401-51137 LED MASTER PCB ASM (1)
4 401-51155 LED SLAVE PCB ASM (1)
5 401-58595 EDGE PROTECT W1.6 (0.03)
6 401-76847 LED TOP PCB ASM 3D (1)
7 401-76849 LED MID PCB ASM 3D (8)
8 401-51136 LED LOW PCB ASM (8)
9 HW-0024500-80 FLAT CABLE (8)
10 HW-0024501-00 FLAT CABLE (8)
11 401-77914 HEAD COVER (2)
12 401-57044 INSULATING SHEET (1)
13 401-77915 3D BASE PC BOARD (1)
14 401-77916 3D ILLUMINATOR (RING) (1)
15 401-57047 RETAINER_ILLUMINATOR (1)
16 401-57048 TAPE (LOW)_HEAT-RESISTING (8)
17 401-77917 3D TAPE(MID) HEAT0RESISITING (8)
18 401-77918 3D TAPE(TOP) HEAT0RESISITING (1)
19 401-80798 ILLUMINATION FIX BRACKET (1)
20 401-57052 LED DRIVE PC BOARD COVER (1)
21 401-57053 SPACER (HEXAGON) M3 L=18 (4)
22 401-57071 BOLT SUPER LOW HEAD M3 L=6 (46)
23 401-77923 HEAD SENSOR BRACKET (1)
24 401-58473 BOARD SENSOR HEAD L ASM (1)
25 SM-6030602-TT SCREW M3 L=6 (6)
26 SM-6030802-TT SCREW M3 L=8 (2)
27 SM-6041202-TT SCREW M4 L=12 (4)
28 SM-6052002-TT SCREW M5 L=20 (4)
29 401-59253 SPACER (HEXAGON) M4 L=10 (8)
30 401-59254 SPACER (HEXAGON) M4 L=20 (4)
31 SL-4040891-ST SCREW M4 L=8 (5)
32 HX-0023300-00 CLIP (3)
33 401-58595 EDGE PROTECT W1.6 (0.03)
34 401-78351 LIGHT SKIRT (1)
35 SM-6040502-TT SCREW M4 L=5 (2)
36 401-77924 OFFSET BASE (1)
37 401-77925 OFFSET SUPPORT PLATE1 (1)
38 401-77927 OFFSET SUPPORT PLATE2 (2)
39 401-80802 USB BRACKET L (RV2-3D) (1)
40 401-80803 USB BRACKET R (RV2-3D) (1)
41 401-80804 USB FIX PLATE (RV2-3D) (1)
42 401-77930 BOLT SUPER LOW HEAD M4 L=8 (7)
43 401-58269 USB HUB (1)
44 PH-0400122-C0 PIN (6)
45 SM-6040602-TT SCREW M4 L=6 (3)
46 SM-6041002-TT SCREW M4 L=10 (8)
47 SM-6041602-TT SCREW M4 L=16 (2)
48 SM-6051002-TT SCREW M5 L=10 (10)
49 SM-6051202-TT SCREW M5 L=12 (1)
50 SM-6051402-TT SCREW M5 L=14 (3)
51 401-82527 COVER SUPPORT L (1)
52 401-82528 COVER SUPPORT R (1)
53 401-57101 LOW HEAD SCREW(K3X5) (2)
54 401-58599 TIE ANCHOR (5)
