RV-2_RV-2-3D-Rev01PDF - 第86页
- - 40 . CAL IBR ATION J IG C OM PON ENTS 1 2
- -

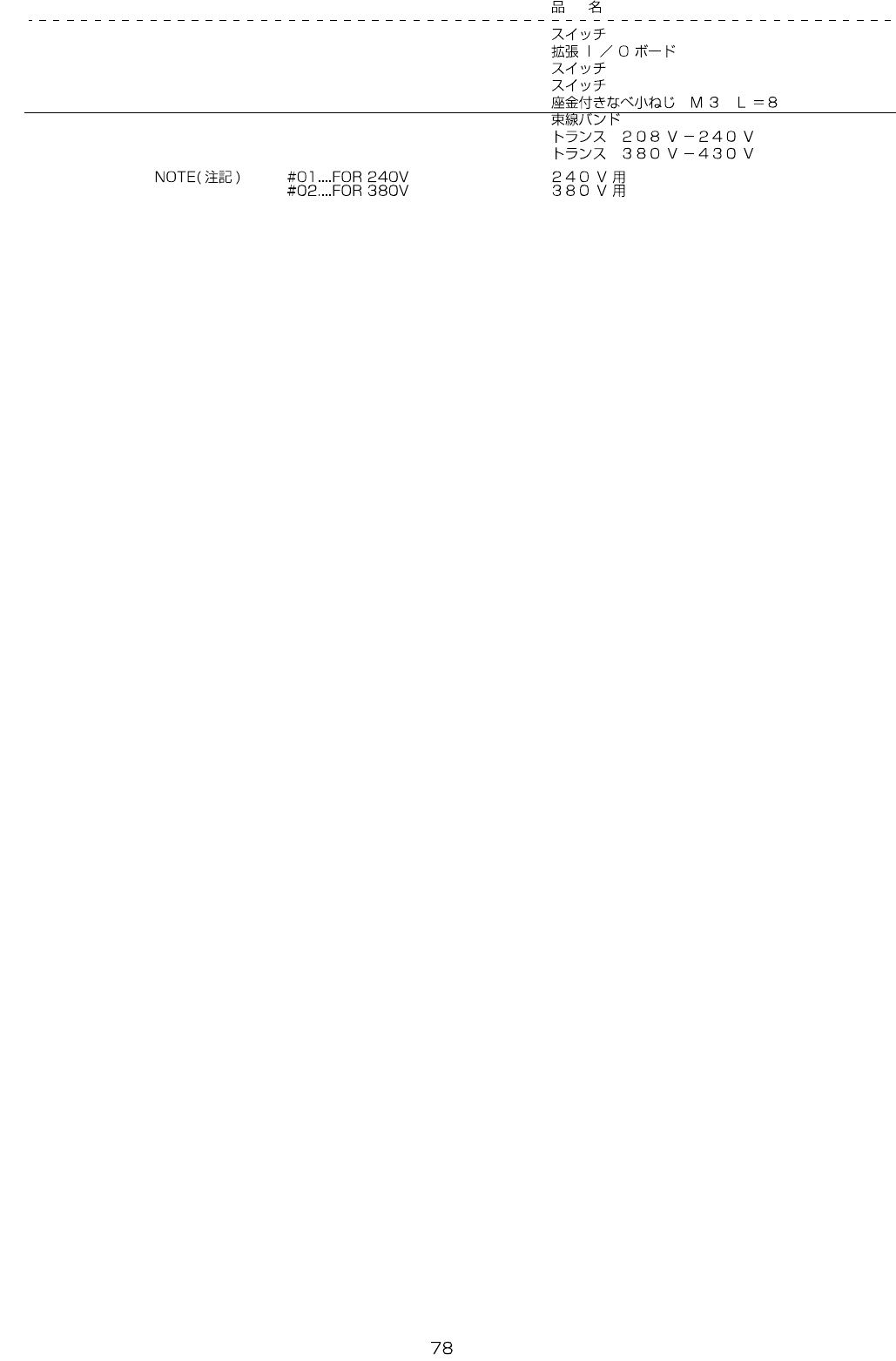

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 HA-0067400-00 SWITCH 1
2 401-58246 IO BOARD 1
3 HA-0067500-00 SWITCH 1
4 HA-0067600-00 SWITCH 1
5 SL-4030881-SC SCREW M3 L=8 2
6 HX-0023300-00 CLIP 3
7
#01
401-58552 TRANSFORMER 1
8
#02
401-58553 TRANSFORMER 1
- -

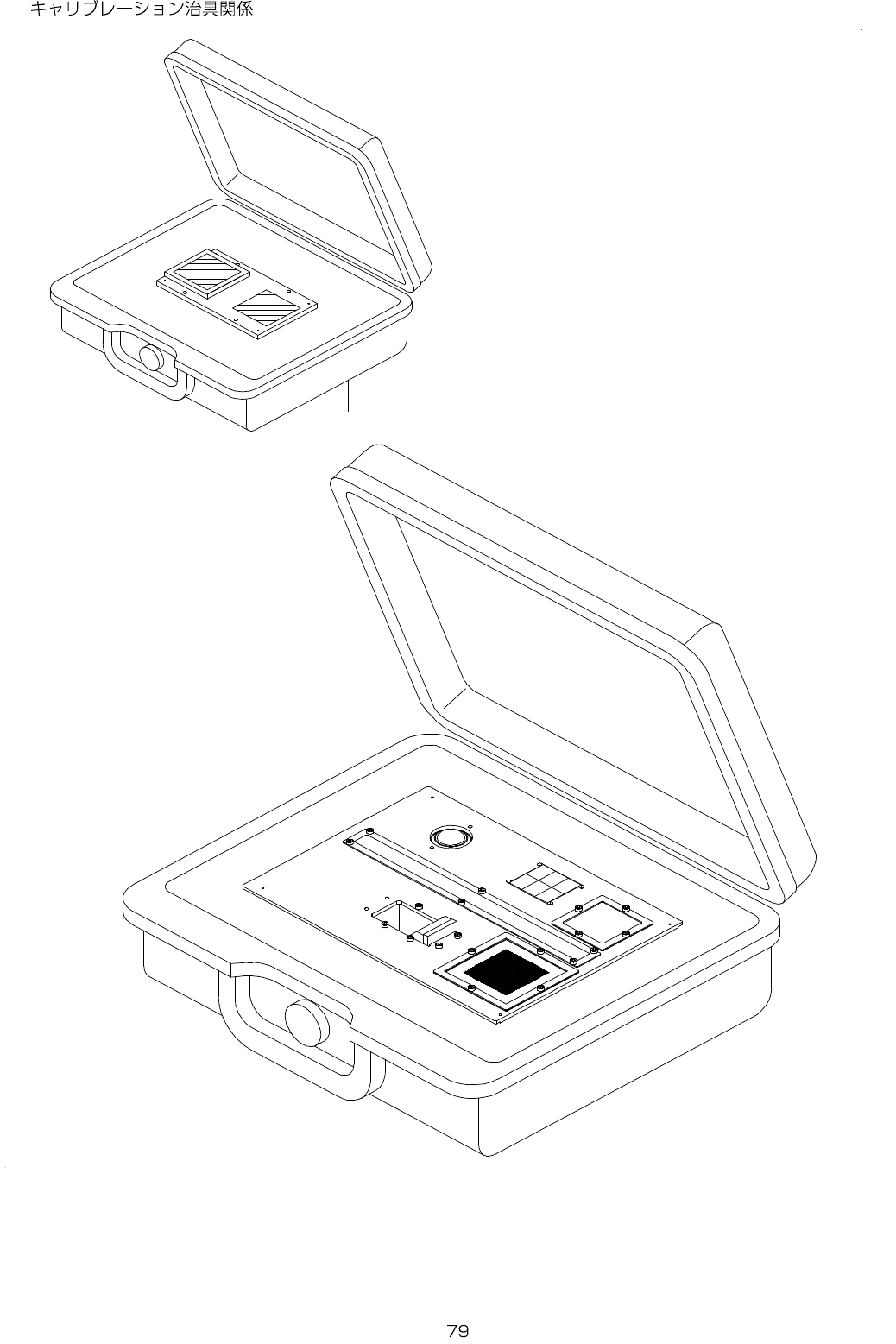

40. CALIBRATION JIG COMPONENTS
1
2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-59175 CALIBRATION JIG ASSY 1
2 401-81034 CALIBRATION JIG ASSY_RV2-3D 1
