LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4
09/2007 Edition
53
2.6 Mechanical installation of the stoppers and run-
ning of the hoses and cables
: Shut down the placement system and switch it off at the main switch.
2
The safety instructions of 2.6 are valid for the whole installation! 2
2
2.6.1 Running of the pneumatic hoses and the connection cable sets
: Remove the lifting tables from both processing areas by unscrewing the hexagon socket
screws marked in the picture below.
2
2
Lifting table
Hexagon socket screws
2 Assembly instructions LBO 27" SIPLACE X4 LBO 27"
09/2007 Edition
54

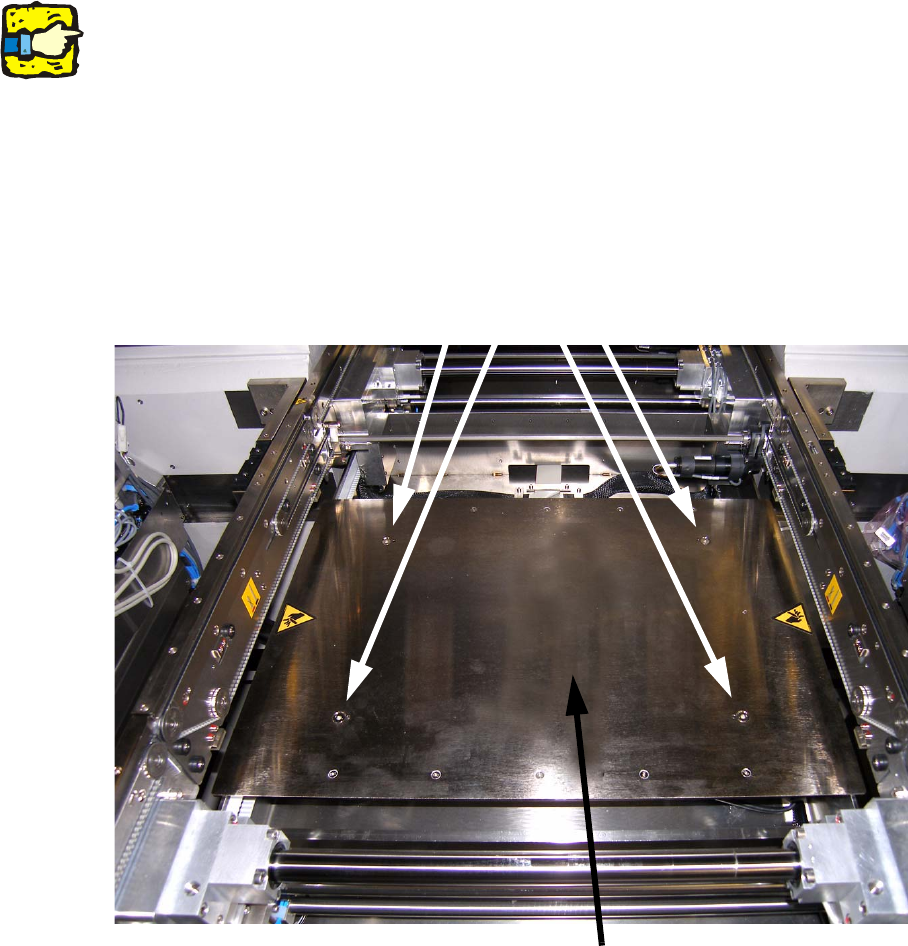

: Remove the conversion board cover by unscrewing the four screws marked in the picture be-
low..
2
2
: Unscrew the three screws to remove the cable duct cover..
2
2
4 hexagon socket screws
Conversion board cover
3 hexagon socket screws
LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4
09/2007 Edition
55

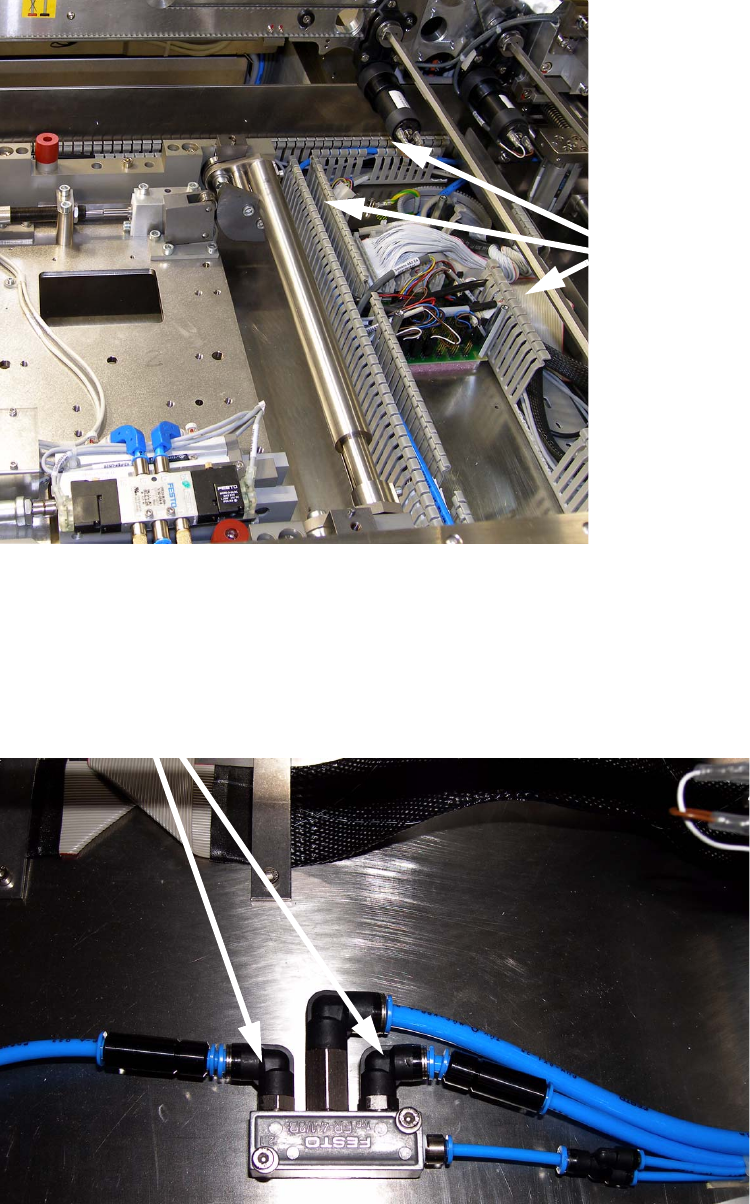

: Take off the 3 covers of the plastic cable ducts in PA2.
2
2
: Disconnect the two hoses with dampers from the pneumatic block of PA1. Insert the delivered
tee connectors with the small hoses like shown on the following pictures.
2
Open the 3 cable
ducts in PA2
Hoses
