2 Assembly instructions LBO 27" SIPLACE X4 LBO 27" 09/2007 Edition 58 The following picture shows the cable and the ho se from the inside, coming through the hole. 2 2 2 : Cut the two marked cable ties and repl…
LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4
09/2007 Edition
57
: Take the delivered PUN 6 hose (2140 mm) with quick lock and one of the connection cable sets
and run them as shown on the following pictures from the outside of the right conveyor side
wall to the pneumatic block in PA1 respectively to the conversion board.
The hose coupling and the Sub-D-plug have to remain in the outer edge of the conveyor in
PA2.
: Put the hose and the cable with the black plug through the hole in the right edge of the con-
veyor side wall and run them into the inside of the processing area.
2
Cable and hose in this direction through the hole
2 Assembly instructions LBO 27" SIPLACE X4 LBO 27"
09/2007 Edition
58
The following picture shows the cable and the hose from the inside, coming through the hole. 2
2
2
: Cut the two marked cable ties and replace them by new ones. Fix the new cable and the hose
together with the existing cables to the cable clips.
2
Cut this two cable ties and replace them to fix all cables and hoses together.
LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4
09/2007 Edition
59
2

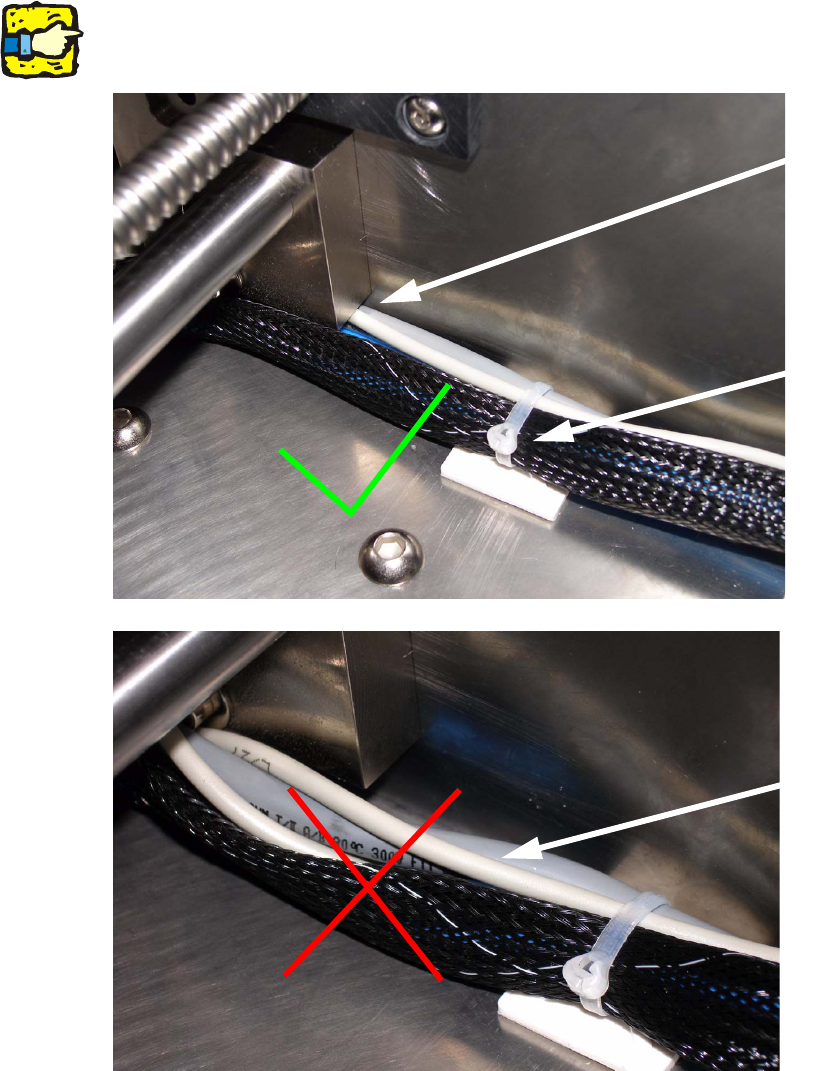

CAUTION!
Make sure that the cables and hoses are running under the alloy block. 2
2
2
2
2
2
Run cables
and hose
under the
alloy block!
Replace
cable tie
Wrong!!!!!!
