LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4 09/2007 Edition 59 2 CAUTION! Make sure that the cables and hoses are runnin g under the alloy block. 2 2 2 2 2 2 Run cables and hose under the alloy block! Re…
2 Assembly instructions LBO 27" SIPLACE X4 LBO 27"
09/2007 Edition
58
The following picture shows the cable and the hose from the inside, coming through the hole. 2
2
2
: Cut the two marked cable ties and replace them by new ones. Fix the new cable and the hose
together with the existing cables to the cable clips.
2
Cut this two cable ties and replace them to fix all cables and hoses together.
LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4
09/2007 Edition
59
2
CAUTION!
Make sure that the cables and hoses are running under the alloy block. 2
2
2
2
2
2
Run cables
and hose
under the
alloy block!
Replace
cable tie
Wrong!!!!!!
2 Assembly instructions LBO 27" SIPLACE X4 LBO 27"
09/2007 Edition
60
: The cable and the hose have to be run in the outer conveyor edge as shown in the following
pictures.
: The length of the cable and the hose has to be chosen like shown on the pictures.
: Place a returnable cable clip in the middle of the duct to fix the cables in a later step.
2
2
2
2
2
2
2
2
2
2
2
2
2
Fix cable with cable clip and
cable tie like shown on the
picture to the metal surface
Returnable cable clip in
the middle of the duct

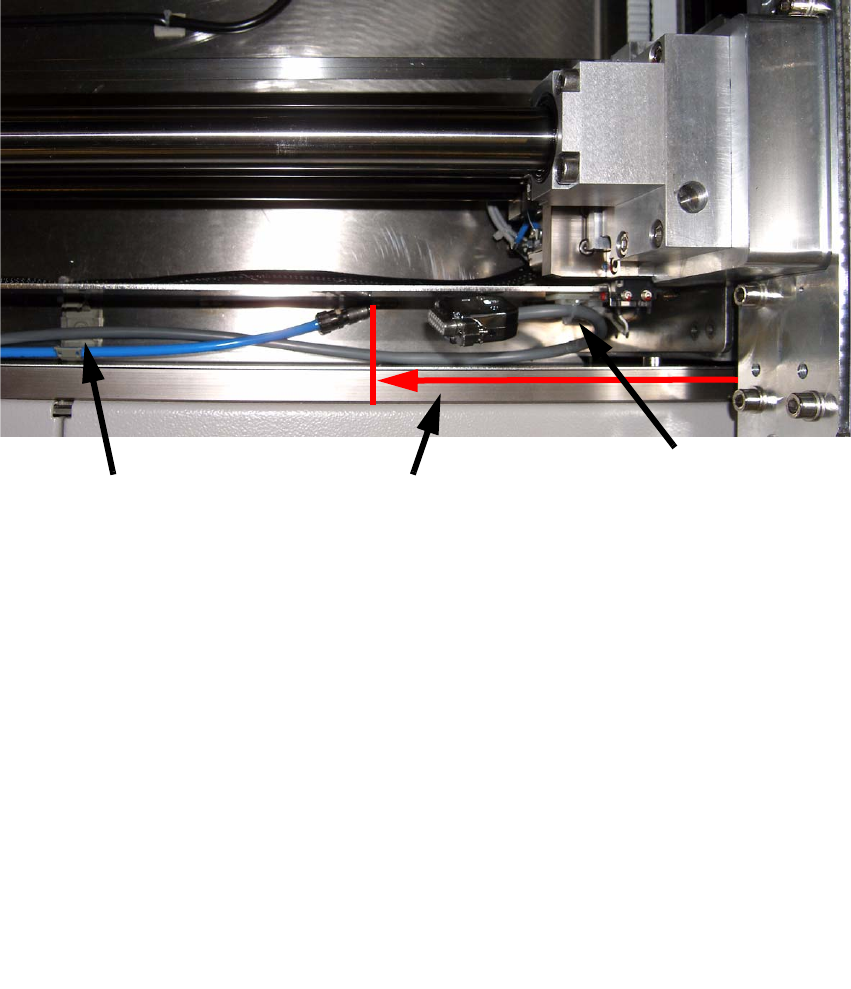

The length of the hose should
be chosen like shown.
(10 cm to the left edge)
