LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4 09/2007 Edition 61 : Run the cable and the hose furt her along the plastic cable duct s to the conversion bo ard. See picture below . The cable has to be conn …
2 Assembly instructions LBO 27" SIPLACE X4 LBO 27"
09/2007 Edition
60
: The cable and the hose have to be run in the outer conveyor edge as shown in the following
pictures.
: The length of the cable and the hose has to be chosen like shown on the pictures.
: Place a returnable cable clip in the middle of the duct to fix the cables in a later step.
2
2
2
2
2
2
2
2
2
2
2
2
2
Fix cable with cable clip and
cable tie like shown on the
picture to the metal surface
Returnable cable clip in
the middle of the duct
The length of the hose should
be chosen like shown.
(10 cm to the left edge)
LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4
09/2007 Edition
61

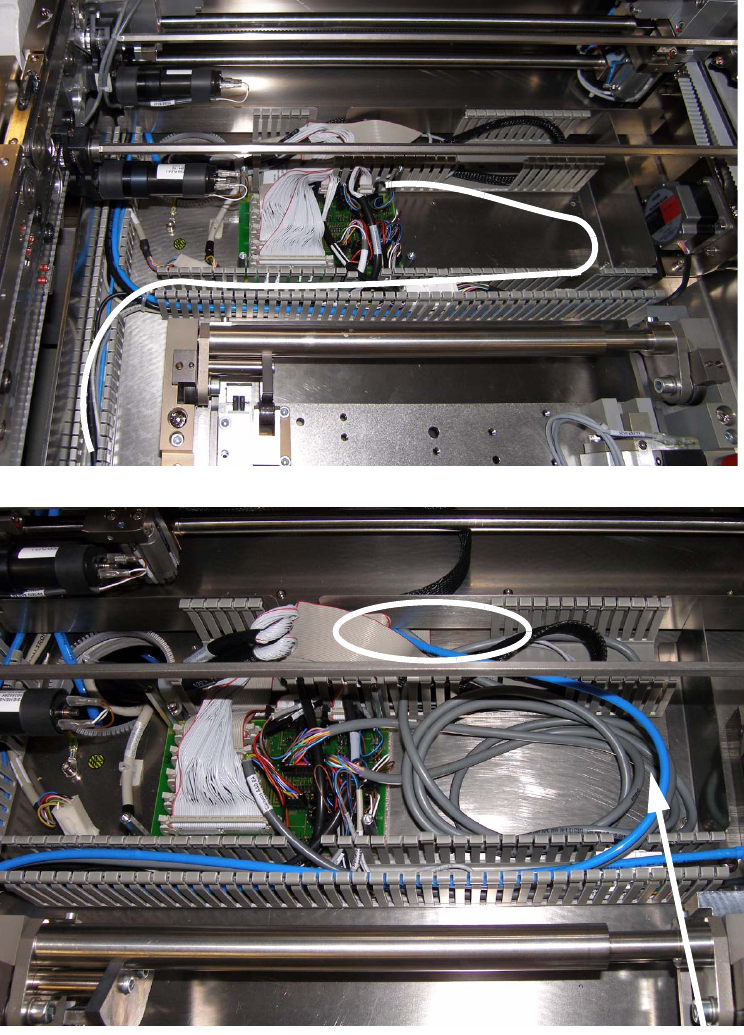

: Run the cable and the hose further along the plastic cable ducts to the conversion board. See
picture below. The cable has to be connected to the conversion board. The hose has to be run
through the middle of the machine into PA1 to the pneumatic block.
2
2
Feed hose through the duct into PA1 to
connect it to the pneumatic block
If the cables are to long,
store them here
2 Assembly instructions LBO 27" SIPLACE X4 LBO 27"
09/2007 Edition
62

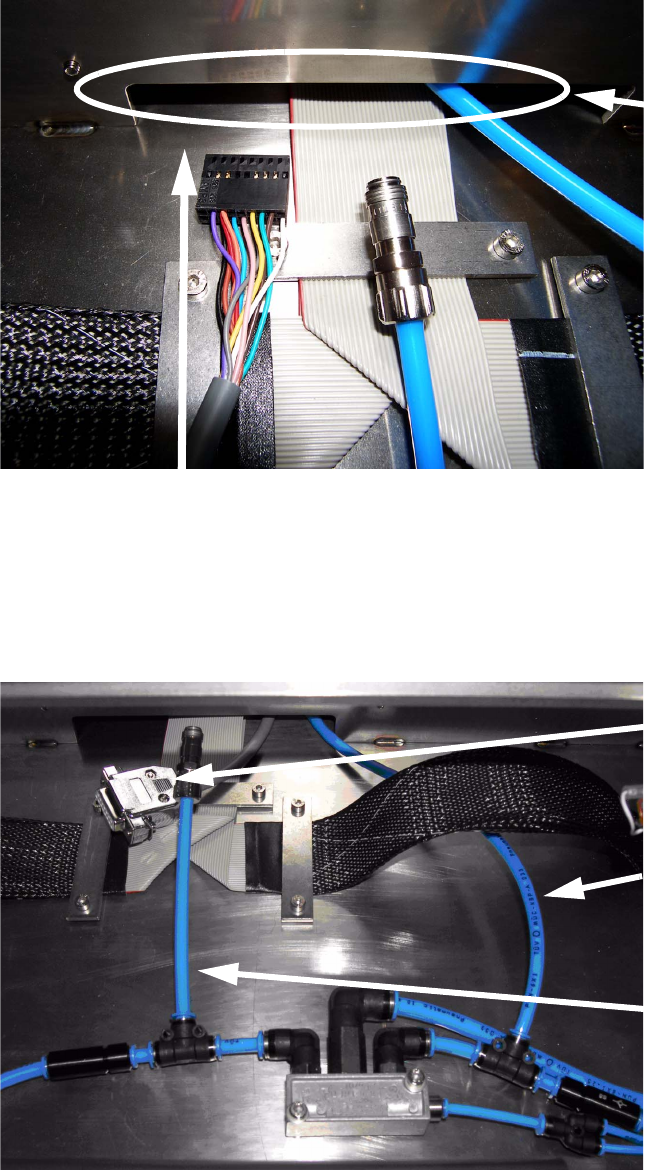

: Now run the connection cable from PA1 through the duct to the conversion board. The Sub-D-
connector has to stay in PA1.
2
2
: Connect the PUN 6 hose coming from PA2 to the right tee connector and the short PUN 6 hose
with quick lock to the left tee connector.
2
Feed cable with black connector to PA2
Duct under the
intermediate con-
veyor. View from
PA1.
Sub-D-connector
coming from PA2
Connect the
hose from PA2
to the right tee
connector
Connect short hose
with quick lock to the
left tee connector
