LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4 09/2007 Edition 63 : Fix the short hose and the cable coming from P A2 like shown on the pictur e below with cable clips and cable ties. 2 2 2 2 2 2 2 2 2 2 2 …
2 Assembly instructions LBO 27" SIPLACE X4 LBO 27"
09/2007 Edition
62
: Now run the connection cable from PA1 through the duct to the conversion board. The Sub-D-
connector has to stay in PA1.
2
2
: Connect the PUN 6 hose coming from PA2 to the right tee connector and the short PUN 6 hose
with quick lock to the left tee connector.
2
Feed cable with black connector to PA2
Duct under the
intermediate con-
veyor. View from
PA1.
Sub-D-connector
coming from PA2
Connect the
hose from PA2
to the right tee
connector
Connect short hose
with quick lock to the
left tee connector
LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4
09/2007 Edition
63

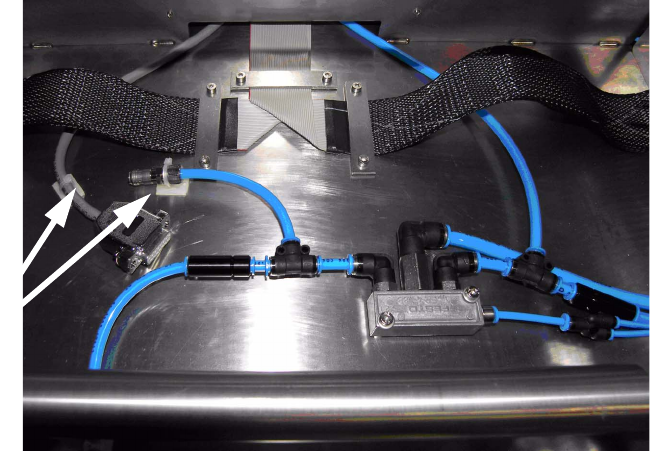

: Fix the short hose and the cable coming from PA2 like shown on the picture below with cable
clips and cable ties.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Place cable clips here
and attach cable and
hose like shown
2 Assembly instructions LBO 27" SIPLACE X4 LBO 27"
09/2007 Edition
64

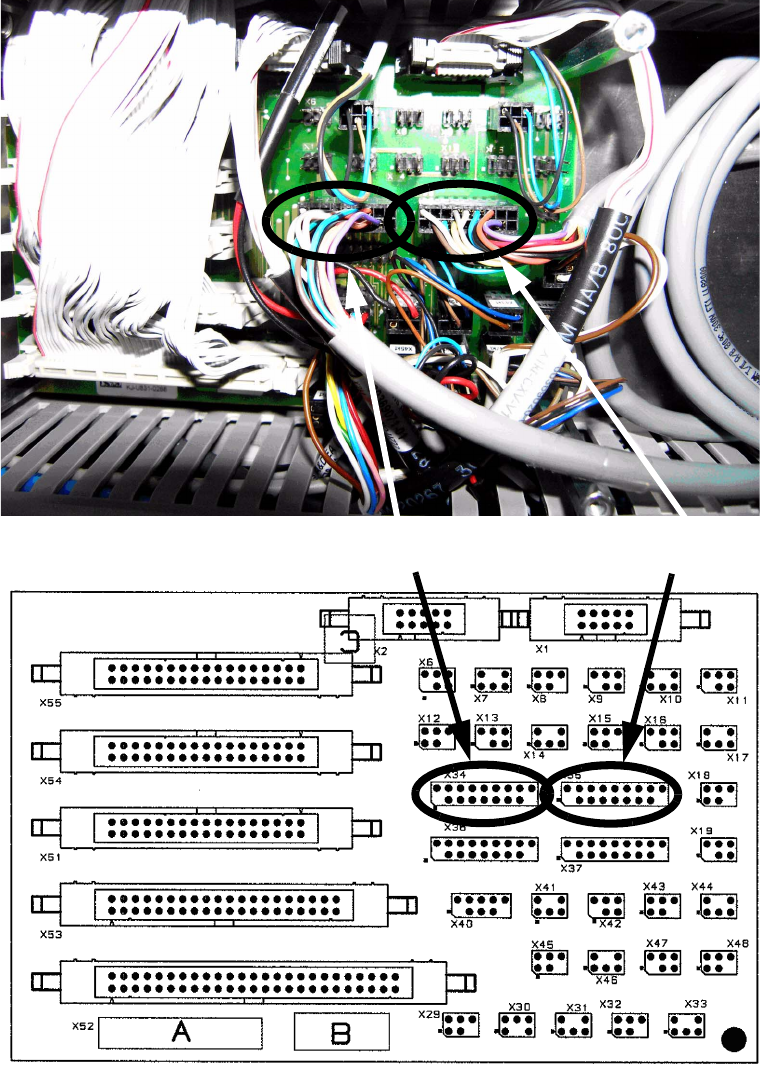

: Connect the two connection cables from PA1 and PA2 to the conversion board. The cable from
PA2 has to be connected to X35 and the cable from PA1 to X34. See following pictures for de-
tails.
2
: After connecting all hoses and cables like described, close all cable ducts and covers. Put the
lifting tables back in both processing areas and mount them with the belonging screws.
Cable from PA2 to X35
Cable from PA1 to X34
