2.6.2 Installation of the stopper in PA1 and PA2
The two stoppers are delivered pre-assembled and ready wired. The stoppers have to be moun-
ted to their positions and have to be connected to the before run cables and hoses. 2
2.6.2.1 Stopper PA1
The stopper for PA1 has to be mounted to the alloy block of the guide shaft on the right conveyor
side wall in PA1. 2
2
2
2
2
2
2
2
2
2
2
2
2
2

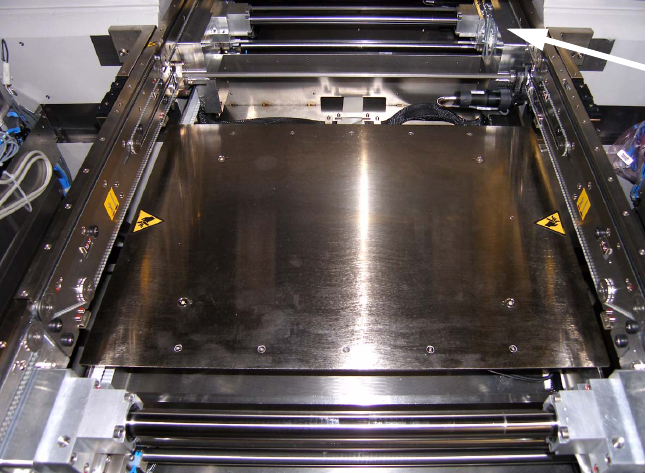

Alloy block for
stopper mounting
2 Assembly instructions LBO 27" SIPLACE X4 LBO 27"
09/2007 Edition
66
: Remove the two marked hexagon socket screws from the alloy block.
2
2
2
Keep the removed screws. You need them if the stopper will be dismounted again to fasten the
alloy block again! 2
2
: Take the stopper for PA1 and put it with the cutout onto the alloy block. Disconnect the right
hose from the pneumatic cylinder before you start.
2
2
2

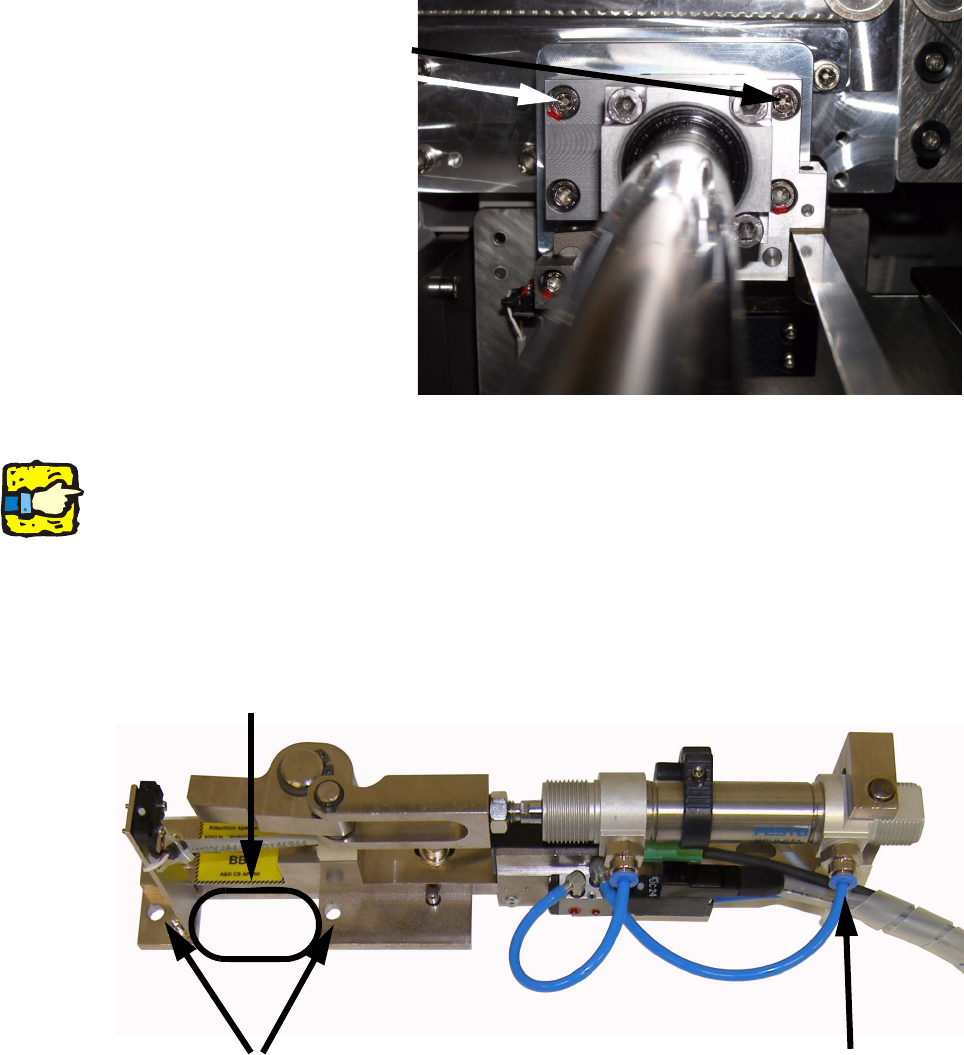

Remove the 2 hexagon
socket screws M6
Cutout for alloy block
Holes fort he two M6 x 40 mm
hexagon socket screws
Disconnect hose
for mounting
LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4
09/2007 Edition
67

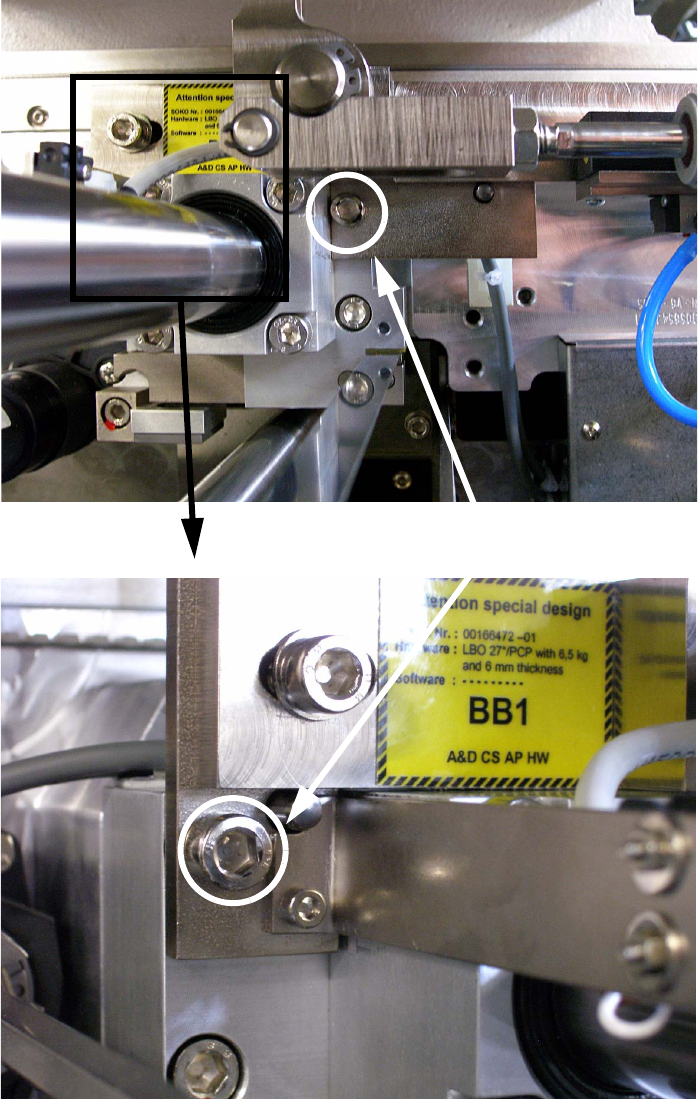

: Fasten the stopper to the alloy block by using 2 of the M6 x 40 mm hexagon socket screws.
If necessary use a long hexagon socket spanner to fasten the screws.
2
2
2
Fasten stopper with 2 M6 x 40 mm hexagon socket screws
