2 Assembly instructions LBO 27" SIPLACE X4 LBO 27"
09/2007 Edition
66
: Remove the two marked hexagon socket screws from the alloy block.
2
2
2
Keep the removed screws. You need them if the stopper will be dismounted again to fasten the
alloy block again! 2
2
: Take the stopper for PA1 and put it with the cutout onto the alloy block. Disconnect the right
hose from the pneumatic cylinder before you start.
2
2
2
Remove the 2 hexagon
socket screws M6
Cutout for alloy block
Holes fort he two M6 x 40 mm
hexagon socket screws
Disconnect hose
for mounting
LBO 27" 2 Assembly instructions LBO 27" SIPLACE X4
09/2007 Edition
67
: Fasten the stopper to the alloy block by using 2 of the M6 x 40 mm hexagon socket screws.
If necessary use a long hexagon socket spanner to fasten the screws.
2
2
2
Fasten stopper with 2 M6 x 40 mm hexagon socket screws
2 Assembly instructions LBO 27" SIPLACE X4 LBO 27"
09/2007 Edition
68

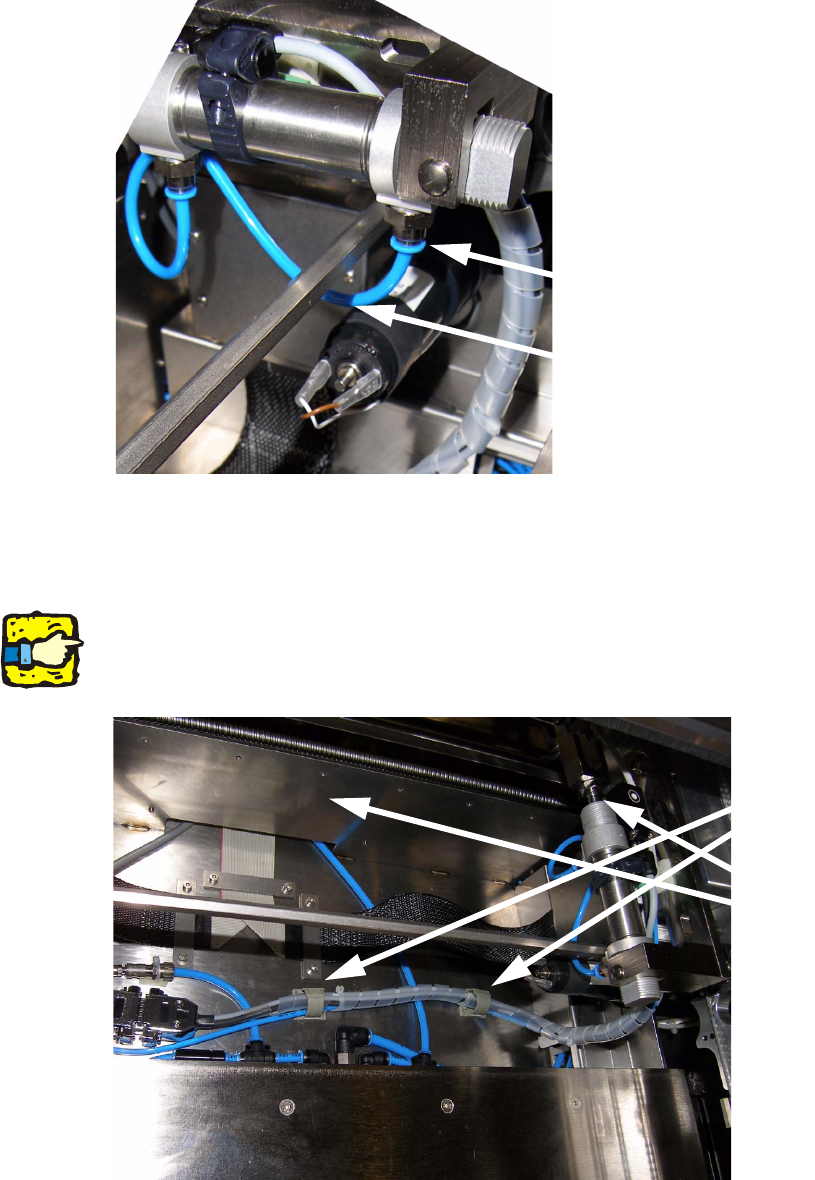

: Reconnect the pneumatic hose to the pneumatic cylinder. Be aware, that the hose does not
rub on any other parts of the machine. If necessary cut the hose into the fitting length.
2
The cable loom of the stopper has to be run like shown below: 2
: Connect the Sub-D-plug and the Sub-D-coupling and connect the PUN 4 hose with the short
PUN 6 hose.
2
The cable loom must not rub on the lifting table when lifting up and down! 2
2
2
Reconnect hose
Be aware of rubbing
parts to the hose.
Fix cable loom with two
returnable cable clips.
The cable loom must
not rub on any part of
the lifting table or
others.!
